FN2560-2-04-C16

Description：LINE FILTER 300VAC/VDC 2A CHASS
Series：FN 2560
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:14b10cade3e3 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 300VAC/VDC 2A CHASS
Series：FN 2560
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：300V
Voltage - Rated AC：300V
Current：2:00 AM
Frequency - Operating：DC ~ 60Hz
Applications：Lighting
Approval Agency：CE, CQC, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Wire Leads
Inductance：L1 - 2mH, L2 - 98µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2560-2-04-C16

Overview

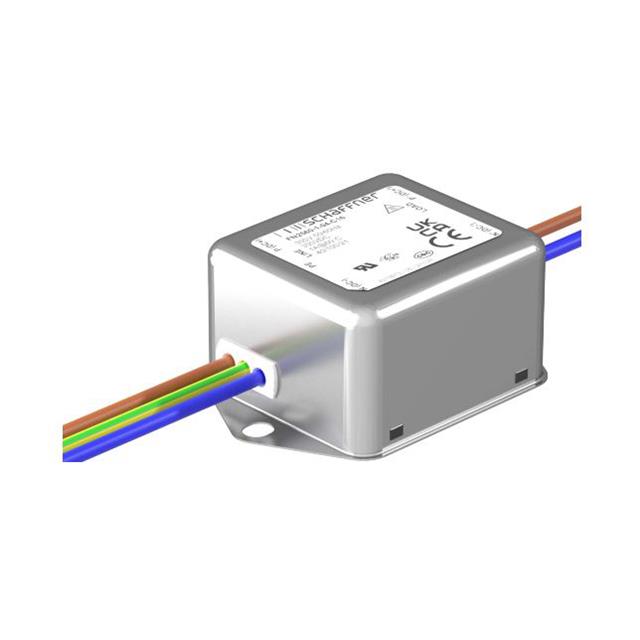

The Schaffner FN2560-2-04-C16 is a single-phase EMC/EMI line filter designed for power line noise suppression. It supports a maximum current of 2A and operates at voltages up to 300V DC or 60Hz AC. The component features wire lead termination for circuit integration. Key electrical parameters include a capacitance value of 2.2nF and a leakage current of 6mA. It functions within an operating temperature range from -40°C to 100°C, ensuring reliability in varied thermal environments.

Feature Summary

Single-phase configuration for dedicated line filtering applications
Low leakage current design suitable for sensitive equipment
Robust construction with wire lead termination

Applications

Power supply input filtering
Electronic equipment EMI suppression
Industrial control systems

Procurement Notes

Verify the specific part number FN2560-2-04-C16 against manufacturer datasheets to confirm technical specifications. Ensure compatibility with system voltage and current requirements before procurement. Check for authorized distribution channels to guarantee product authenticity and traceability. Confirm packaging and shipping conditions align with storage guidelines.

Selection Notes

Select this filter based on its 2A current rating and 300V DC/AC voltage capability. Consider the low leakage current specification for safety compliance. Evaluate the wire lead termination method for ease of integration into existing PCB or chassis designs. Assess the operating temperature range to ensure suitability for the intended environmental conditions.

Part Context

This component belongs to the FN2560 series of EMC filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is known for providing effective noise attenuation in single-phase power lines. These filters are engineered to meet international electromagnetic compatibility standards, supporting global deployment in various electronic applications.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify that any replacement matches the original current, voltage, and leakage current specifications. Ensure physical dimensions and termination types are compatible with the existing assembly.
