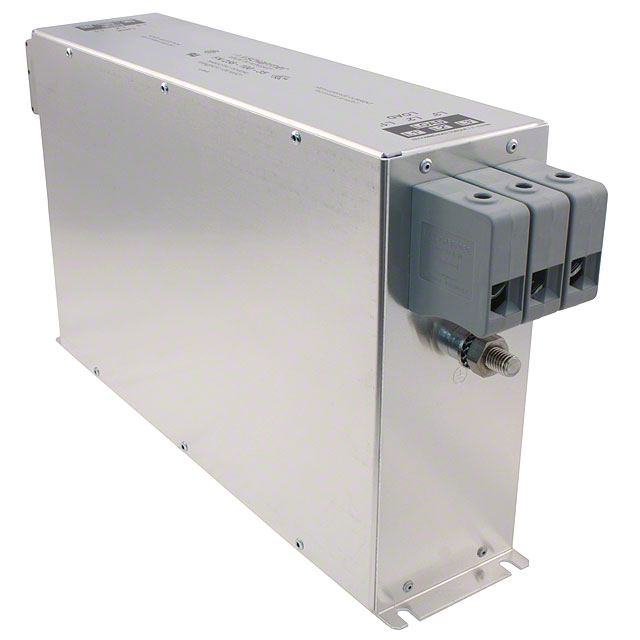

FN258-100-35

$477.71

Description：LINE FILTER 100A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:50bf7c6252b8 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 100A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：100 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

FN258-100-35

Overview

The FN258-100-35 is a three-phase delta EMC/EMI line filter module manufactured by Schaffner EMC Inc. It supports a continuous current of 100 A and operates at frequencies up to 60 Hz. The unit features a two-stage configuration with chassis mount installation and terminal block termination. Rated voltages include 277 V AC (line-to-ground) and 480 V AC (line-to-line). Operating temperature ranges from -25°C to 100°C. High potential test voltages are specified as 2650 VDC for 2 seconds between phase and earth, and 2100 VDC for 2 seconds between phases.

Feature Summary

Book-style design optimized for inverter and power drive systems
Two-stage filtering architecture for enhanced noise suppression
Chassis mount construction with terminal block connections

Applications

Inverter systems
Power drive systems

Procurement Notes

Verify the exact part number against official Schaffner documentation before procurement. Confirm that the specific suffix matches the required voltage ratings and mounting style. Check for any recent product change notices or obsolescence announcements directly from the manufacturer. Ensure compatibility with existing chassis dimensions and terminal block specifications.

Selection Notes

Select this component when high current capacity of 100 A is required for three-phase delta configurations. Consider the book-style form factor for space-constrained installations in industrial drive applications. Verify that the operating temperature range meets the environmental conditions of the deployment site. Ensure the terminal block termination style aligns with the system wiring infrastructure.

Part Context

This component belongs to the FN258 series of power line filters designed for demanding electromagnetic compatibility requirements. The series includes variants such as FN258L and FN258HVIT, which offer different insulation and leakage current characteristics. These filters are engineered to address strict standards in industrial automation and motor control environments.
