Product Detailed Parameters
- Description：LINE FILTER 16A CHASSIS MOUNT
- Series：FN 258
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：16 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

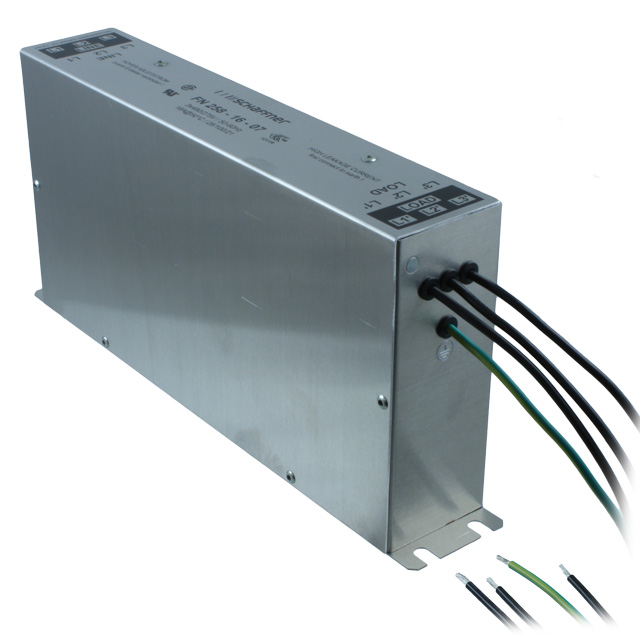

The Schaffner FN258-16-07 is a three-phase power line filter designed for chassis mounting. It supports a rated current of 16 A and operates at voltages up to 480 VAC. The component functions within a frequency range of 0 Hz to 60 Hz. Electrical specifications include a leakage current of 3 mA and a maximum operating temperature of +100°C, with a minimum limit of -25°C. Physical dimensions are approximately 275 mm in length, 55 mm in width, and 142 mm in height, weighing 1.4 kg. It utilizes terminal block connections and holds UL, CSA, and IEC/EN compliance certifications.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power lines
- Features robust chassis mounting construction for industrial environments
- Includes terminal block connections for secure wiring integration
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Power distribution units requiring EMI filtering
Procurement Notes
Verify the specific part number suffix against official manufacturer documentation to ensure correct terminal configuration and certification status. Confirm availability as supply may be restricted or subject to discontinuation notices. Cross-reference physical dimensions and weight requirements with installation space constraints prior to procurement.
Selection Notes
Select this model when a three-phase filter with a 16 A rating and 480 VAC capability is required. Ensure the application environment falls within the specified -25°C to +100°C operating temperature range. Verify that terminal block termination methods align with the system's wiring infrastructure and that chassis mounting provisions are available.
Part Context
This component belongs to the FN258 series of power line filters manufactured by TE Connectivity / Schaffner. The series offers various current ratings for three-phase applications. This specific unit represents a mid-range capacity option within the lineup, designed for general industrial EMC compliance.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer channels for current equivalent recommendations or updated series replacements.
