FN258-180-40

$766.96

Description：LINE FILTER 180A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:a7c91aaddbc6 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 180A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：180 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

FN258-180-40

Overview

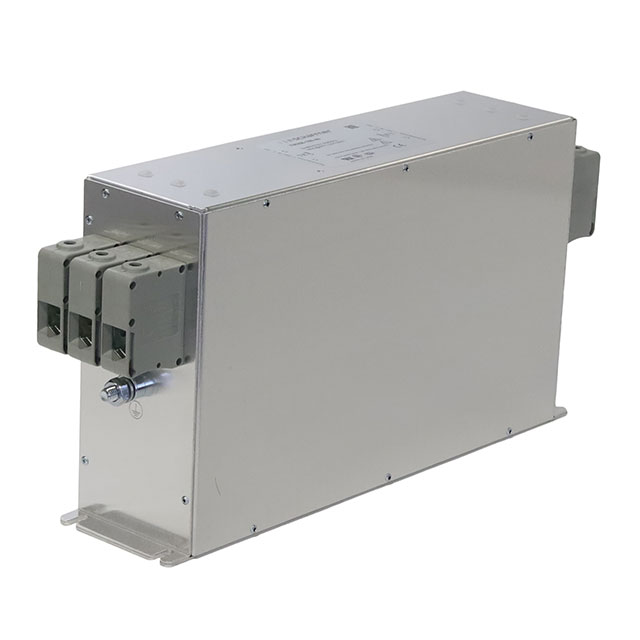

The Schaffner FN258-180-40 is a three-phase EMC/RFI power line filter designed for chassis mounting. It supports a rated current of 180 A and operates at frequencies from 0 Hz to 60 Hz with a voltage rating of 480 VAC. The unit features terminal block termination and has dimensions of 520 mm in length, 110 mm in width, and 240 mm in height. It weighs 12 kg and functions within a temperature range of -25°C to +100°C.

Feature Summary

Provides electromagnetic interference suppression for three-phase power systems
Engineered for high-current applications up to 180 A
Constructed for secure chassis mounting using terminal blocks

Applications

Industrial power conditioning systems
Three-phase motor drive installations
Heavy machinery power supplies

Procurement Notes

Verify the specific part number against official TE Connectivity / Schaffner documentation before procurement. Confirm that the terminal block configuration matches the installation requirements. Check for any recent product discontinuance notifications or engineering change orders associated with this component code.

Selection Notes

Select this model only if the application requires a 180 A capacity and 480 VAC rating. Ensure the physical chassis space accommodates the specified dimensions. Verify that the operating environment stays within the -25°C to +100°C thermal limits defined by the manufacturer.

Part Context

This component belongs to the FN258 series of three-phase filters manufactured by TE Connectivity / Schaffner. The series is characterized by robust construction for industrial environments. This specific model represents a high-current variant within the lineup.

Replacement Considerations

Public sources indicate potential replacement options such as the FN3288-230-40-C26-R65. Verify technical compatibility and availability through official manufacturer channels before substitution.
