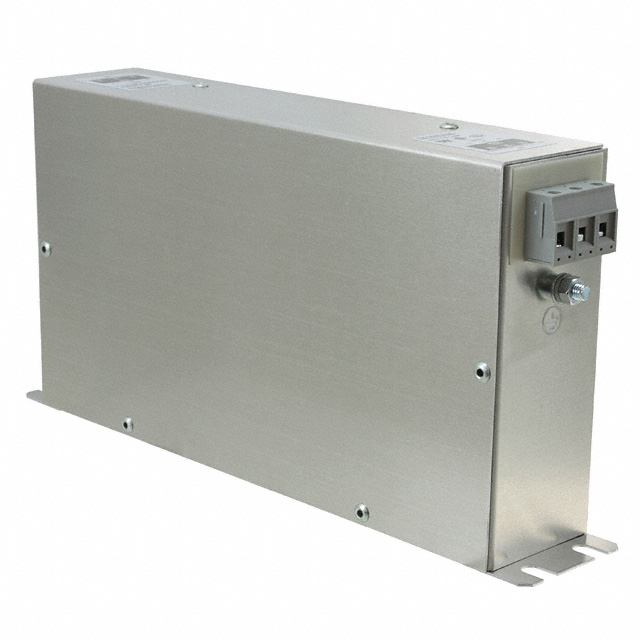

FN258-7-29

$158.44

Description：LINE FILTER 7A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:54139f005562 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 7A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：7:00 AM
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

FN258-7-29

Overview

The FN258-7-29 is a three-phase EMC/RFI power line filter from the Schaffner FN 258 series, designed for industrial applications. It features a chassis mount configuration with terminal block termination. The unit supports a voltage rating of 480 VAC and a current rating of 7 A at operating frequencies between 0 Hz and 60 Hz. Key electrical specifications include a leakage current of 2 mA and a maximum operating temperature of +100°C. Physical dimensions are 225 mm in length, 50 mm in width, and 126 mm in height, with an approximate weight of 1 kg. The component holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

Provides EMI/RFI filtering for three-phase power drive systems
Utilizes a book-style chassis mount design for secure installation
Incorporates terminal block connections for reliable wiring

Applications

Three-phase power drive systems
Industrial inverter applications
EMC compliant equipment integration

Procurement Notes

Verify part authenticity through authorized TE Connectivity or Schaffner channels due to discontinued status. Confirm RoHS compliance details via official documentation. Ensure replacement components match physical dimensions and electrical ratings for direct interchangeability in existing chassis mounts.

Selection Notes

Select this component for three-phase systems requiring 480 VAC operation and 7 A continuous current handling. Verify that the terminal block interface aligns with existing wiring harnesses. Consider the chassis mount style and dimensional constraints during system integration planning.

Part Context

This filter belongs to the FN 258 series, which offers industry-standard EMC solutions for three-phase inverters and power drive systems manufactured by TE Connectivity / Schaffner. The series is recognized for providing robust interference suppression in industrial environments.

Replacement Considerations

Public records indicate the FN258-7-29 has reached end-of-life status. No specific public substitute part numbers are confirmed for direct replacement.
