FN2580-2-07

Overview

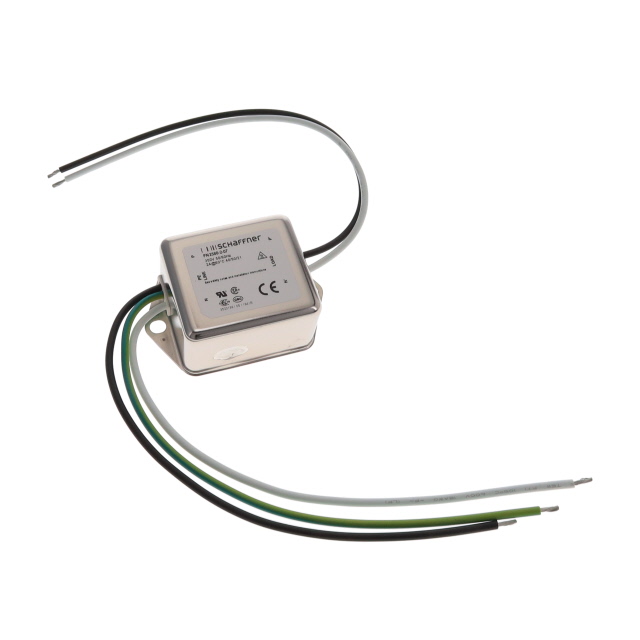

The Schaffner FN2580-2-07 is a single-phase power line filter designed for chassis mounting. It features a rated voltage of 350 VAC and a current rating of 2 A. The component utilizes wire terminations and is engineered for high differential mode performance. It operates within a temperature range of -40°C to 90°C.

Feature Summary

• Single-phase EMI/EMC filtering capability
• Chassis mount construction with wire terminations
• Optimized for high differential mode noise attenuation

Applications

• Lighting systems
• Motor control cabinets
• Industrial electronic equipment requiring single-phase power conditioning

Procurement Notes

Verify the End-of-Life (EOL) status, as notifications indicate discontinuance. Confirm that wire termination specifications match the target assembly requirements. Ensure the 350 VAC rating aligns with the system's electrical environment before procurement planning.

Selection Notes

Select this component when single-phase filtering with wire leads is required. The 2 A rating suits low-power applications. High differential mode performance makes it suitable for environments with significant common-mode interference suppression needs alongside differential noise reduction.

Part Context

This part belongs to the FN2580 series by Schaffner EMC Inc., now part of TE Connectivity. The series focuses on single-phase power line filters. The specific model provides chassis-mount solutions for electromagnetic compatibility in various industrial and commercial sectors.

Replacement Considerations

Check for active equivalents in the FN2580 series or other Schaffner single-phase lines. Verify pinout and terminal type compatibility if substituting with similar chassis-mount filters.
