FN2580-5-07

Overview

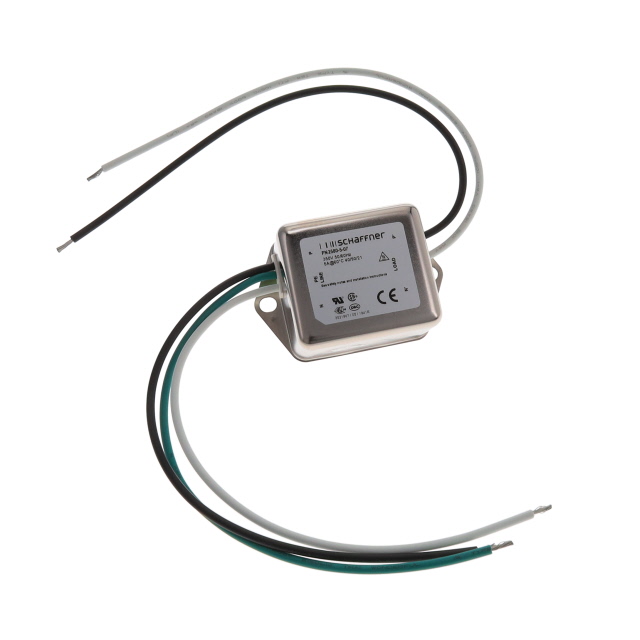

The Schaffner FN2580-5-07 is a single-phase EMI/EMC power line filter designed for chassis mounting. It features wire termination and supports a rated voltage of 350 VAC with a current rating of 5 A. The component operates within a frequency range of 0 Hz to 60 Hz. Key electrical specifications include a leakage current of 660 uA, a height of 29 mm, a length of 50 mm, and a width of 44 mm. The unit weighs 140 g.

Feature Summary

• High differential mode performance for effective noise suppression
• Chassis mount design for secure installation
• Wire termination style for direct connection

Applications

• Power supply input filtering
• Industrial equipment EMC compliance
• Electronic device noise reduction

Procurement Notes

Verify the End-of-Life (EOL) status before procurement. The manufacturer issued a discontinuance notification on September 23, 2024. Confirm availability through authorized distributors or check for valid substitute part numbers that meet the same technical requirements.

Selection Notes

Select this component only if single-phase filtering at 5 A and 350 VAC is required. Ensure the application supports wire termination rather than quick-connect terminals. Verify that the physical dimensions fit the chassis space and that the operating frequency range matches the system's power line characteristics.

Part Context

This component belongs to the FN2580 series of Schaffner power line filters. The series is characterized by high differential mode performance and chassis mount configurations. It serves as an electromagnetic compatibility solution for AC power lines in various electronic applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation due to the product's discontinued status.
