FN258HV-130-35

$665.93

Description：LINE FILTER 130A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:bd378460e9d3 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 130A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：130 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：400 V
Voltage - Rated AC (Phase to Phase)：690 V

Download product information

FN258HV-130-35

Overview

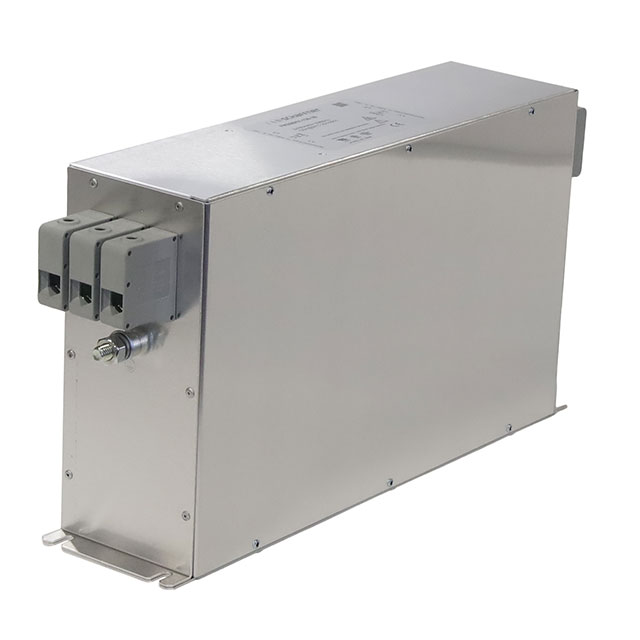

The Schaffner FN258HV-130-35 is a three-phase power line filter designed for high-voltage applications. It provides electromagnetic interference (EMI) suppression with a rated current of 130 A and operates at frequencies up to 60 Hz. The unit features a chassis mount configuration with terminal block connections, ensuring secure installation in industrial environments. This component is part of the FN258 series, offering robust filtering capabilities for demanding power systems.

Feature Summary

High-voltage design suitable for specialized industrial power applications
Three-phase configuration for balanced load filtering
Chassis mount construction for stable mechanical integration

Applications

Industrial power distribution systems
High-voltage motor drive installations
Heavy machinery power conditioning

Procurement Notes

Verify availability status as this specific model may be discontinued or obsolete. Confirm technical compatibility with existing system voltage and current requirements before procurement. Check for manufacturer-recommended substitute part numbers if direct replacement is unavailable. Ensure proper handling procedures are followed due to high-power specifications.

Selection Notes

Select this component only when high-voltage three-phase filtering is required. Evaluate space constraints for chassis mounting and verify terminal block connectivity matches wiring infrastructure. Consider thermal management needs given the 130 A rating. Compare against newer series models for improved performance or availability.

Part Context

This filter belongs to the Schaffner FN258 series, known for general-purpose EMC/EMI suppression in three-phase systems. The HV variant indicates high-voltage capability, distinguishing it from standard low-voltage counterparts. The series is widely used in industrial settings requiring reliable noise reduction on power lines.

Replacement Considerations

Available substitutes include the FN3288HV series. Verify electrical ratings and physical dimensions match original requirements. Consult manufacturer documentation for cross-reference details and installation guidelines.
