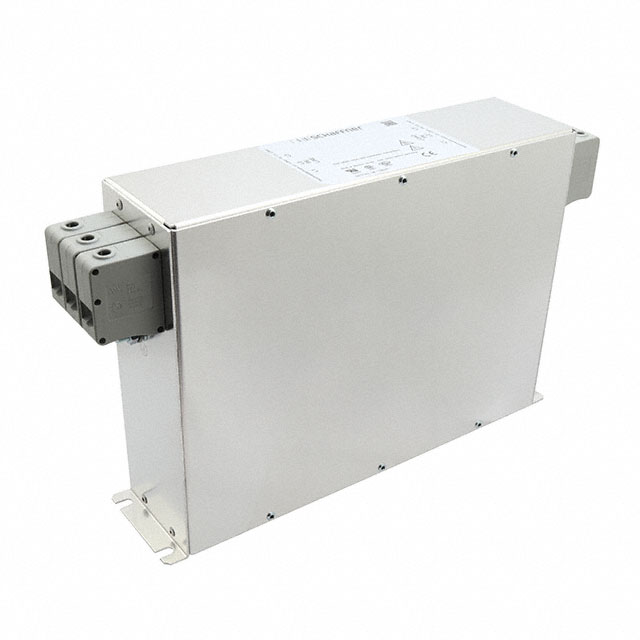

FN258HV-75-34

$465.74

Description：LINE FILTER 75A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:e7f7faaf42e1 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 75A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：75 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：400 V
Voltage - Rated AC (Phase to Phase)：690 V

Download product information

FN258HV-75-34

Overview

The FN258HV-75-34 is a three-phase (Delta) EMC/EMI line filter manufactured by TE Connectivity Schaffner. It features a 75 A current rating and a 690 VAC voltage rating, designed for operation between DC and 60 Hz. The unit utilizes chassis mount installation with terminal block termination. Physical dimensions are 300 mm in length, 80 mm in width, and 220 mm in height, with an operating temperature range of -25 C to +100 C. Leakage current is specified at 2.6 mA. It holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

Two-stage filtering architecture for enhanced noise attenuation
Slim book-style form factor enabling space-saving integration next to inverters and motor drives
Terminal block connection style for secure chassis mounting

Applications

Industrial motor drive systems
Inverter installations
Three-phase power conditioning equipment

Procurement Notes

Verify the specific suffix '34' against official datasheets to confirm terminal configuration and certification status. Confirm availability as this component may be subject to discontinuation or supply constraints. Ensure the application environment matches the 690 VAC and 75 A ratings. Cross-reference physical dimensions for chassis compatibility before procurement.

Selection Notes

Select this model when a two-stage EMI filter is required for three-phase Delta systems operating up to 690 VAC. The 75 A rating suits high-current industrial loads. Consider the slim profile for tight enclosures adjacent to drives. Verify that terminal block termination aligns with existing wiring infrastructure and that the 2.6 mA leakage current meets safety standards for the specific installation.

Part Context

This component belongs to the FN258HV series, which provides high-voltage EMC filtering solutions. The series includes variants with different current ratings and terminal configurations. The FN258HV-75-34 specifically addresses the needs of robust industrial environments requiring reliable noise suppression for three-phase power lines.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer catalogs for direct replacements within the FN258HV series or equivalent Schaffner models.
