Product Detailed Parameters
- Description：LINE FILTER 16A CHASSIS MOUNT
- Series：FN 258
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：16 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：400 V
- Voltage - Rated AC (Phase to Phase)：690 V
Download product information
Overview

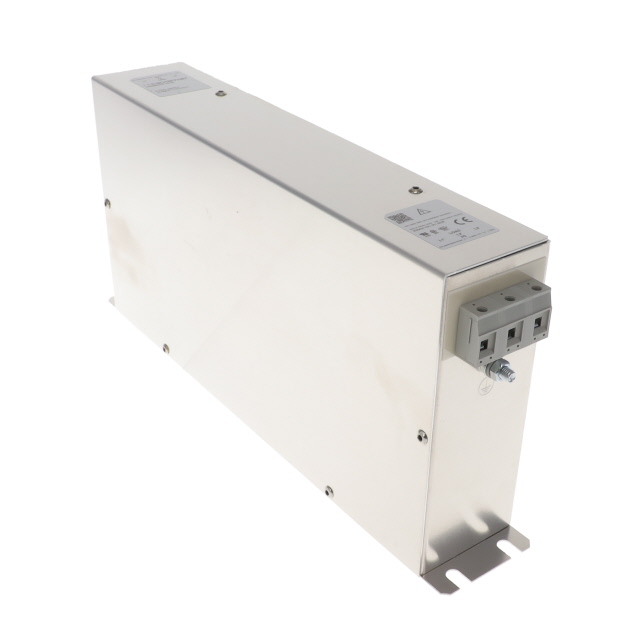

The FN258HVIT-16-29 is a three-phase EMI/EMC power line filter manufactured by Schaffner EMC Inc. It features a chassis mount design with a safety terminal block input configuration. The component is rated for an input current of 16 A and is intended for high-voltage telecommunications applications.
Feature Summary
- Three-phase EMI/EMC filtering capability
- Chassis mount construction
- Safety terminal block input
Applications
- High-voltage telecommunications systems
Procurement Notes
This component is officially discontinued and no longer manufactured by the producer. Procurement must focus on verified replacement part numbers rather than original units. Buyers should confirm availability through authorized distributors or substitute manufacturers to ensure supply chain continuity and technical compatibility.
Selection Notes
Selection requires identifying a direct functional substitute due to the discontinuation status. Engineers must verify that replacement components maintain equivalent three-phase filtering characteristics, current ratings, and mounting configurations suitable for high-voltage telecom environments without altering system safety standards.
Part Context
The FN258HVIT-16-29 belongs to the Schaffner EMC product portfolio focused on electromagnetic interference suppression. It was designed for industrial and telecom infrastructure requiring robust noise reduction in three-phase power lines before being phased out of production.
Replacement Considerations
The MFR recommended substitute is FN3288HVIT. Verify electrical parameters and mechanical fit before adoption.
FAQ
Is the FN258HVIT-16-29 currently available for new orders?
No, the component is discontinued and no longer manufactured.
What is the recommended replacement for this filter?
The manufacturer recommends the FN3288HVIT as a substitute.
