FN258HVIT-7-29

Overview

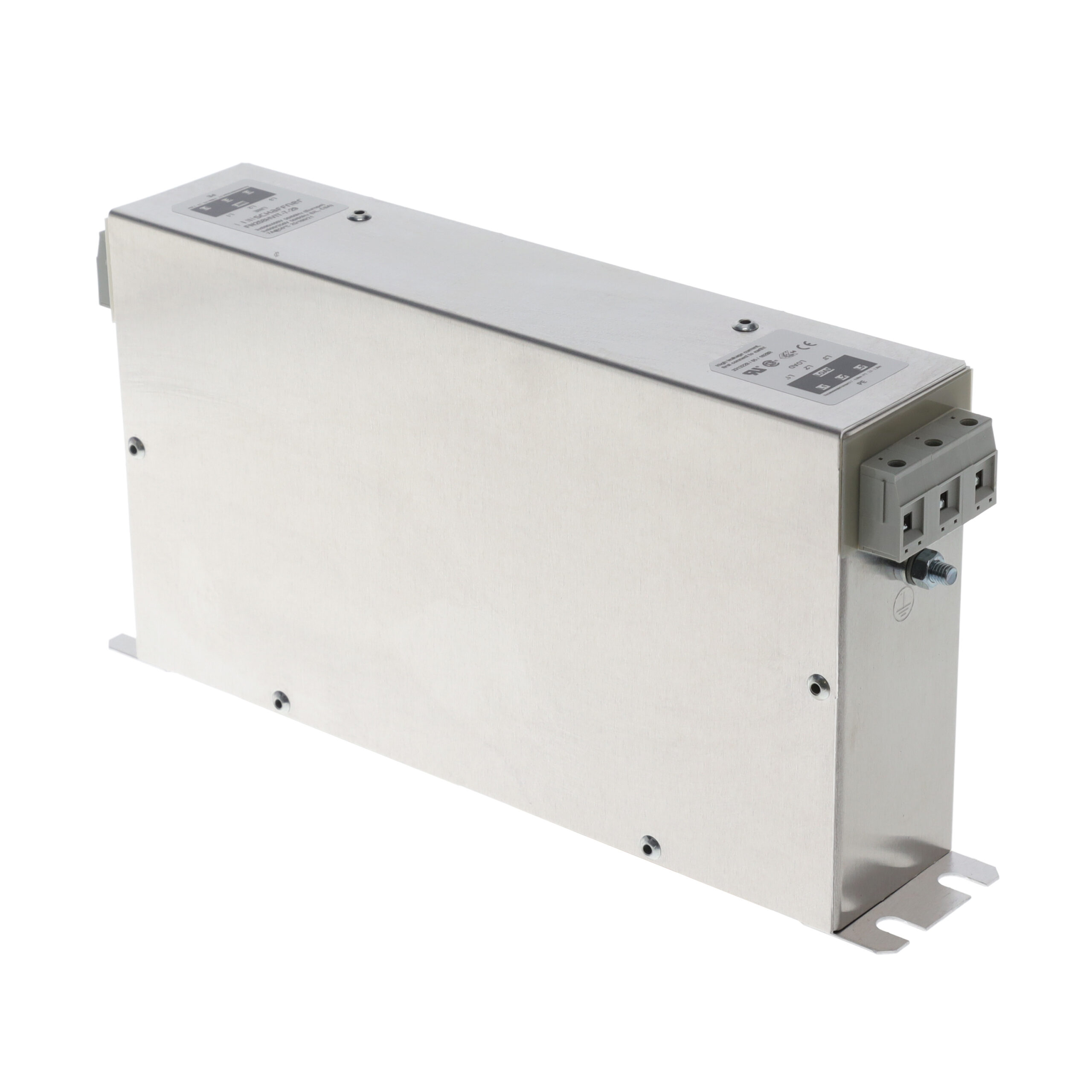

The FN258HVIT-7-29 is a three-phase chassis-mount EMC/EMI line filter module designed for high-voltage and high-current applications. It operates at 7 A with a DC to 60 Hz frequency range. The unit utilizes a two-stage terminal block topology to provide robust attenuation. This component ensures compliance with Class C industrial standards while managing leakage current limitations effectively.

Feature Summary

• Multi-stage filter topology for advanced EMI attenuation
• Chassis mount design for secure installation
• Terminal block connection interface

Applications

• High-voltage power line filtering
• Industrial inverter systems
• Compliance with Class C emission standards

Procurement Notes

Verify the specific part number against official TE Connectivity Schaffner documentation to confirm the two-stage topology and terminal block configuration. Ensure the application environment supports the rated current and voltage specifications. Cross-reference safety certifications required for the target market before finalizing procurement.

Selection Notes

Select this model for applications requiring high attenuation in three-phase delta configurations. Consider the chassis mount form factor for space-constrained enclosures. Evaluate leakage current requirements against the filter's capabilities to ensure system safety and regulatory compliance.

Part Context

This component belongs to the FN258 series, which offers state-of-the-art EMI attenuation based on innovative multi-stage topologies. The series addresses tough requirements regarding leakage current limitation and provides solutions for overcoming electromagnetic interference in demanding industrial environments.

Replacement Considerations

FN258HVIT-16-29

FAQ

What is the phase configuration of the FN258HVIT-7-29?

It is a three-phase filter designed for delta configurations.

Does this filter support high-frequency operation?

No, it is specified for DC to 60 Hz frequency ranges.
