FN258HVIT-75-34

$466.13

Description：LINE FILTER 75A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:4a49d27c81e0 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 75A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：75 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：400 V
Voltage - Rated AC (Phase to Phase)：690 V

Download product information

FN258HVIT-75-34

Overview

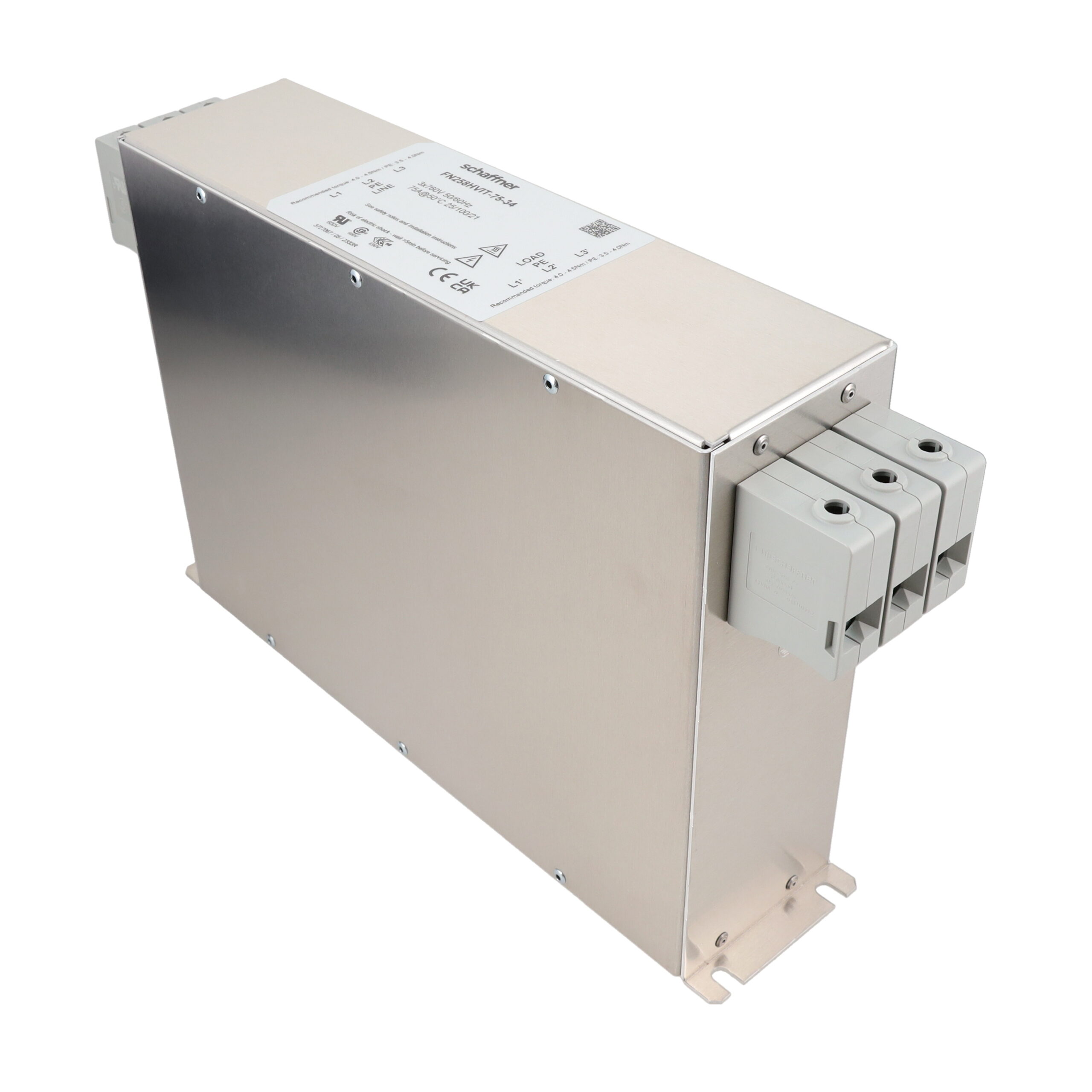

The FN258HVIT-75-34 is a three-phase and neutral power line filter from the FN 258 series, manufactured by TE Connectivity / Schaffner. It features a chassis mount design with terminal block termination. The unit supports a voltage rating of 690 VAC and a current rating of 75 A. Physical dimensions are 300 mm in length, 80 mm in width, and 220 mm in height, with an operating temperature range of -25 C to +100 C. Leakage current is specified at 2.6 mA.

Feature Summary

Book-style EMC/RFI filter architecture designed for inverters and power drive systems
Safety terminal block configuration for secure electrical connections
Chassis mounting style for industrial integration

Applications

Inverter systems
Power drive systems
Industrial equipment requiring three-phase filtering

Procurement Notes

This component is officially listed as End-of-Life (EOL) with discontinuance notifications dated February 5, 2024. Availability is restricted or non-existent through standard distribution channels. Verification of final stock status and alternative sourcing strategies is required before procurement planning. Do not assume availability based on historical listings.

Selection Notes

Select this model only if compatibility with existing 690 VAC, 75 A infrastructure is confirmed. Due to the EOL status, long-term supply chain stability is compromised. Engineers should evaluate replacement options that meet identical electrical and mechanical specifications to ensure system continuity without redesign.

Part Context

Part of the FN 258 HVIT series, which provides industry-standard EMC solutions for three-phase applications. The series is recognized for book-style construction suitable for high-current industrial environments. This specific variant integrates safety terminal blocks for robust connection reliability.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Given the EOL status, consult manufacturer resources for direct cross-reference recommendations or next-generation equivalents.
