FN258L-16-07

Overview

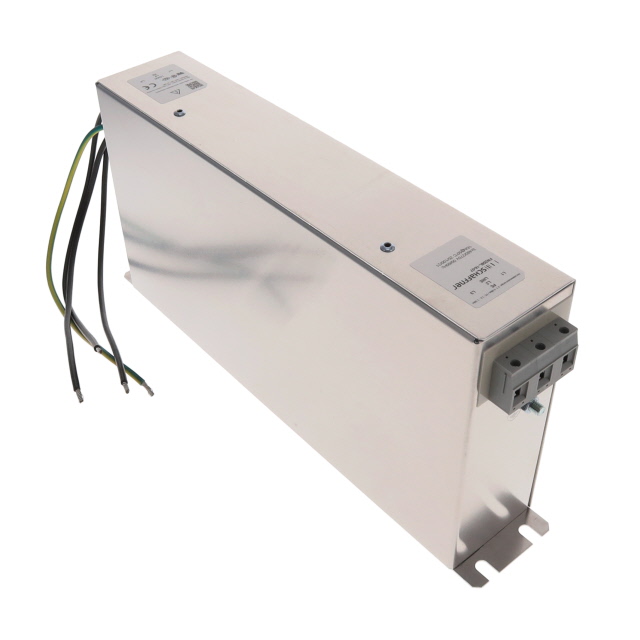

The Schaffner FN258L-16-07 is a three-phase EMC/RFI power line filter designed for chassis mounting. It features a rated current of 16 A and operates at frequencies up to 60 Hz with a voltage rating of 480 VAC. The unit utilizes terminal block termination and has a leakage current of 100 uA. Certified by UL, CSA, and IEC/EN standards, it functions within a temperature range of -25°C to 100°C.

Feature Summary

• Provides industry-standard electromagnetic compatibility filtering for three-phase power drive systems
• Engineered specifically for integration into three-phase inverter applications
• Ensures reliable operation across a wide industrial temperature spectrum

Applications

• Three-phase power drive systems
• Industrial inverter installations
• Electromagnetic interference suppression in heavy machinery

Procurement Notes

Verify the specific suffix against official datasheets to confirm terminal type and certification requirements. Confirm availability status as distribution channels may list obsolete or discontinued stock. Ensure the selected variant matches the required leakage current and physical dimensions for the intended chassis mount application.

Selection Notes

Select this component when a robust solution for three-phase noise reduction is required in inverter environments. Consider the low leakage current specification for sensitive equipment protection. Verify that the chassis mounting style and terminal block connections align with the system's mechanical and electrical interface constraints.

Part Context

This model belongs to the FN258 series, which is recognized as an industry standard for EMC solutions in three-phase power drive systems. The series is widely utilized in industrial automation to mitigate conducted emissions from inverters and motor drives.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
