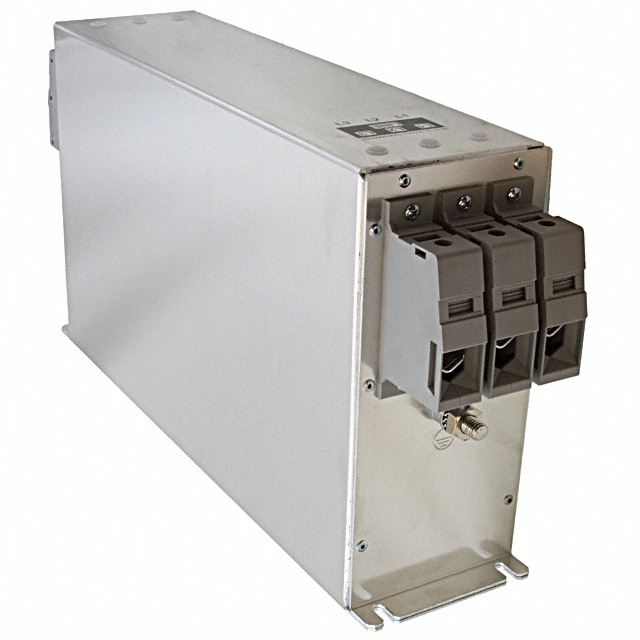

FN258L-180-40

$777.68

Description：LINE FILTER 180A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:287c37784f6e Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 180A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：180 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

FN258L-180-40

Overview

The Schaffner FN258L-180-40 is a three-phase EMC/RFI power line filter rated for 180 A and 480 VAC. Designed for chassis mounting with terminal block termination, it operates within a temperature range of -25°C to +100°C. This component belongs to the FN258 series, engineered for high-current industrial applications requiring robust electromagnetic interference suppression.

Feature Summary

Three-phase configuration for balanced load filtering
High current capacity suitable for heavy-duty equipment
Chassis mount design for secure installation

Applications

Industrial motor drives
Power conversion systems
Heavy machinery control panels

Procurement Notes

Verify availability status as this part may be obsolete or discontinued. Confirm exact replacement models such as the FN3288-160 if direct supply is unavailable. Ensure technical specifications match legacy system requirements before procurement.

Selection Notes

Select this model for applications requiring 180 A three-phase filtering at 480 VAC. Consider thermal management due to high current ratings. Verify terminal block compatibility with existing wiring infrastructure.

Part Context

Part of the Schaffner FN258 series, designed for high-performance EMI suppression in demanding environments. The FN258L variant specifically addresses three-phase needs with compact ultra-compact form factors relative to older generations.

Replacement Considerations

The FN3288-160 is listed as an available substitute. Verify electrical parameters and physical dimensions to ensure compatibility with existing chassis mounts and terminal connections.
