FN258L-7-29

Overview

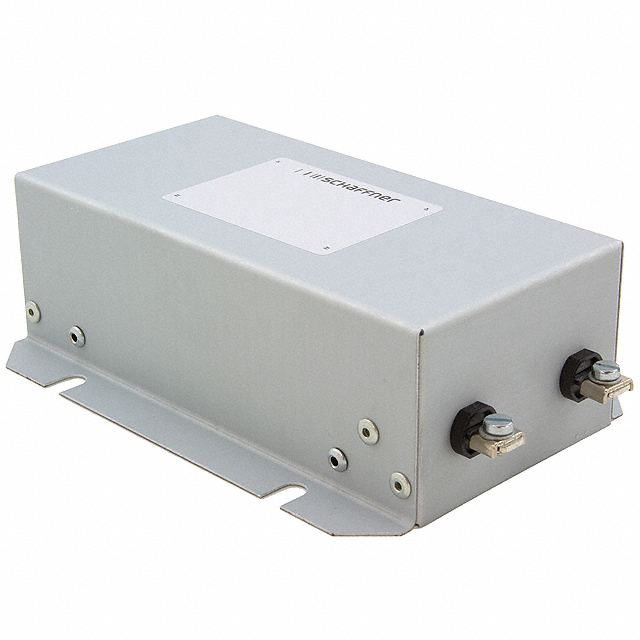

The FN258L-7-29 is a three-phase EMC/RFI power line filter from the Schaffner FN258 series, manufactured by TE Connectivity. It features a chassis mount design with terminal block termination for secure electrical connections. The unit is rated for 480 VAC and supports a continuous current of 7 A within an operating frequency range of 0 Hz to 60 Hz. Key electrical specifications include a maximum leakage current of 100 uA. The physical dimensions are 205 mm in length, 50 mm in width, and 126 mm in height, with an operational temperature range spanning from -25°C to +100°C.

Feature Summary

• Provides two-stage attenuation for effective electromagnetic interference suppression in three-phase systems
• Utilizes a robust chassis mount construction suitable for industrial panel integration
• Incorporates terminal block connections to facilitate straightforward wiring and maintenance

Applications

• Industrial machinery requiring three-phase power conditioning
• Medical equipment demanding strict electromagnetic compatibility
• Automated manufacturing systems with sensitive control electronics

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to discontinuation status. Confirm regulatory compliance documentation including UL, CSA, and IEC/EN certifications matches specific regional requirements. Ensure replacement designs account for the terminal block interface and chassis mounting footprint to maintain mechanical integrity.

Selection Notes

Select this model when a three-phase configuration is required for 480 VAC systems with a 7 A load capacity. The low leakage current specification makes it suitable for applications with strict safety grounding constraints. Verify that the chassis mount form factor fits the available enclosure space and that the terminal block connection method aligns with existing wiring infrastructure.

Part Context

This component belongs to the FN258 series of power line filters designed for high-performance noise reduction. The series is engineered for demanding environments where reliable electromagnetic compatibility is critical. The product represents a specialized solution for three-phase power filtering within the broader portfolio of TE Connectivity's electronic protection components.

Replacement Considerations

The manufacturer has issued a discontinuance notification dated February 5, 2024. Potential substitutes include the FN3288-10-44-C17-R65, though functional equivalence must be validated against specific circuit requirements.
