FN258P-16-29

$158.78

Description：LINE FILTER 16A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:7b5ed3c2cfb2 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 16A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：16 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

FN258P-16-29

Overview

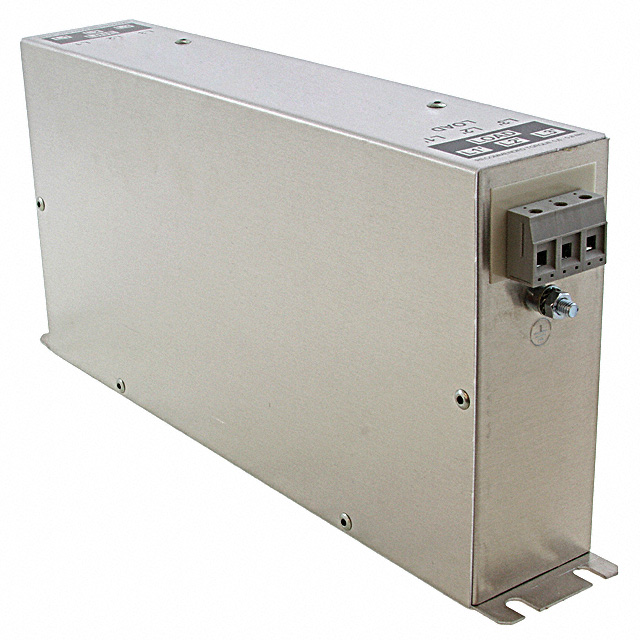

The Schaffner FN258P-16-29 is a three-phase and neutral power line filter designed for chassis mounting. It features a rated current of 16 A and a voltage rating of 480 VAC. The unit utilizes terminal block termination for secure electrical connections. Certified by UL, CSA, and ENEC-14, it operates within a temperature range of -25 °C to +100 °C. The physical dimensions are 275 mm in length, 55 mm in width, and 142 mm in height, with a weight of approximately 1 kg.

Feature Summary

Provides electromagnetic interference filtering for three-phase inverter and power drive systems
Features robust chassis mount construction for industrial integration
Includes safety terminal block connections for reliable circuit interfacing

Applications

Three-phase power drive systems
Inverter applications requiring EMC compliance
Industrial motor control cabinets

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm compatibility with your system requirements. Ensure that the chassis mounting style and terminal block termination match your enclosure design. Check for any recent product change notices regarding packaging or material composition before finalizing procurement decisions.

Selection Notes

Select this component when designing systems requiring certified three-phase filtering for inverters. Confirm that the 16 A current rating and 480 VAC voltage specification align with the load characteristics. Verify that the chassis mount form factor fits the available space in the equipment enclosure.

Part Context

This component belongs to the FN258 series of EMI filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is specifically engineered for three-phase applications, offering industry-standard solutions for power drive systems and inverters where strict electromagnetic compatibility is required.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided source data. Consult official manufacturer cross-reference lists for verified alternatives.
