Product Detailed Parameters
- Description：LINE FILTER 30A CHASSIS MOUNT
- Series：FN 258
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：30 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

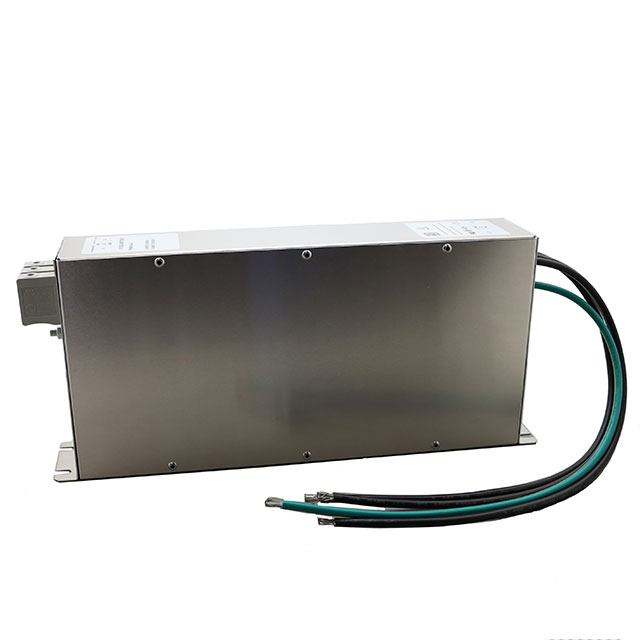

The FN258P-30-07 is a three-phase and neutral power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount installation style with terminal block termination. The unit is rated for 480 VAC and 30 A, operating within a frequency range of 0 Hz to 60 Hz. Physical dimensions are 225 mm in length, 50 mm in width, and 126 mm in height, with a weight of 1 kg. Leakage current is specified at 400 uA. The component holds UL, CSA, and IEC/EN compliance certifications.
Feature Summary
- Designed specifically for three-phase inverter and power drive system applications
- Provides industry standard EMC filtering solutions
- Utilizes a robust chassis mount configuration
Applications
- Three-phase inverters
- Power drive systems
- Industrial equipment requiring EMI suppression
Procurement Notes
Verify the exact part number against official manufacturer documentation before procurement. Confirm that the terminal block termination and chassis mount requirements align with your design specifications. Check for any recent product change notifications or end-of-life status updates from TE Connectivity / Schaffner to ensure long-term availability and support.
Selection Notes
Select this component when a dedicated three-phase and neutral filter is required for high-current industrial drives. Ensure the 30 A rating and 480 VAC voltage class match the system parameters. Consider the physical footprint and terminal block connection method during mechanical integration planning.
Part Context
This component belongs to the FN258 series of power line filters. The series is recognized for providing electromagnetic compatibility in demanding industrial environments. The specific model variant addresses the needs of three-phase systems with neutral connections, distinguishing it from standard three-phase configurations.
Replacement Considerations
Consult official manufacturer substitution guides for verified alternatives. Cross-reference technical specifications carefully to ensure compatibility with existing system requirements.
