FN258P-7-07

$160.43

Description：LINE FILTER 7A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:901ba3013880 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 7A CHASSIS MOUNT
Series：FN 258
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：7:00 AM
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

FN258P-7-07

Overview

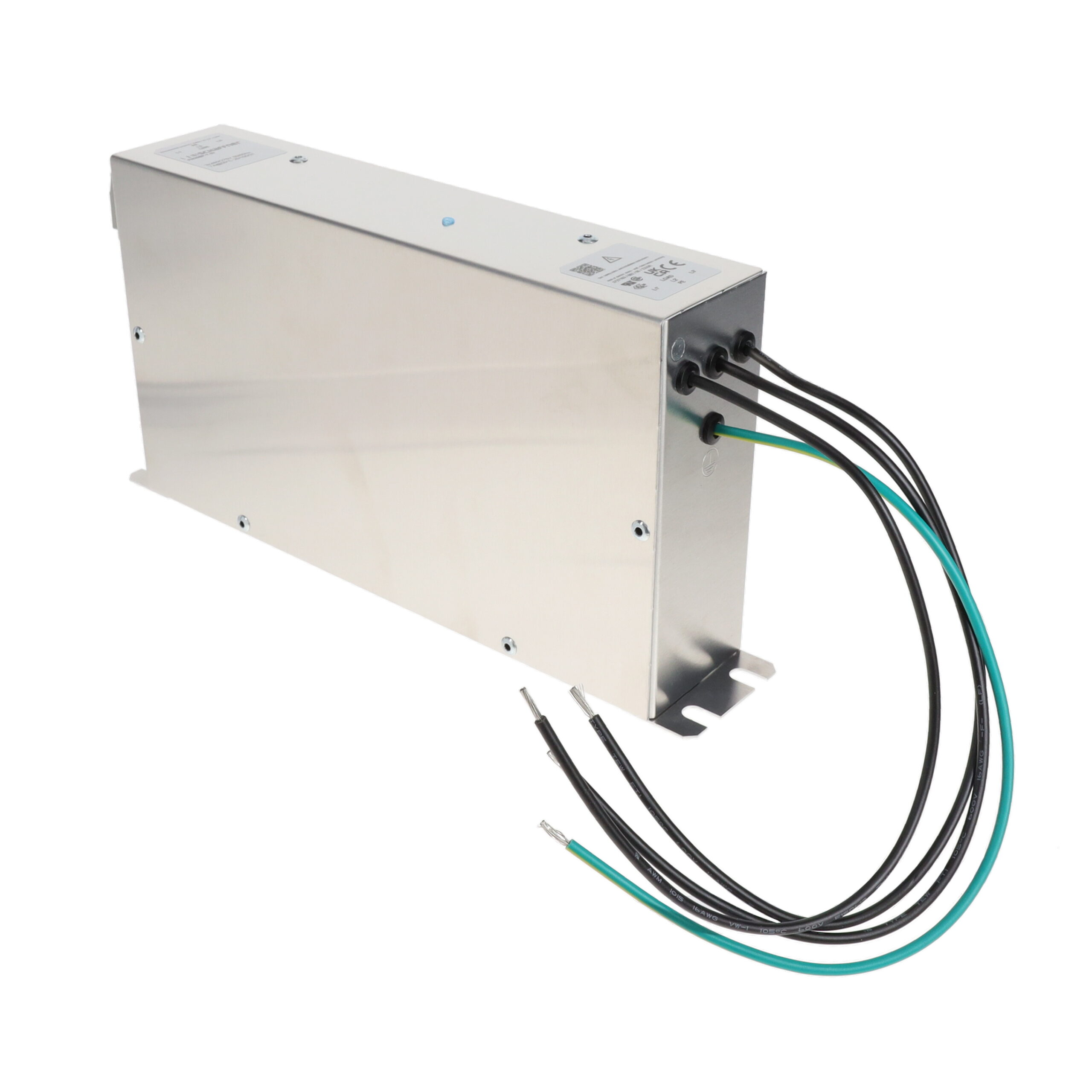

The Schaffner FN258P-7-07 is a three-phase EMC/RFI power line filter designed for chassis mounting. It supports a rated voltage of 480 VAC and a current rating of 7 A, operating within a frequency range of 0 Hz to 60 Hz. The unit features wire termination and exhibits a leakage current of 2 mA. Physical dimensions are 225 mm in length, 50 mm in width, and 126 mm in height, with an approximate weight of 1 kg. It functions effectively between -25°C and +100°C and holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

Provides electromagnetic interference suppression for three-phase power systems
Engineered for secure chassis mounting applications
Utilizes wire termination for electrical connections

Applications

Industrial machinery power conditioning
Three-phase equipment noise reduction
EMC compliance integration in control panels

Procurement Notes

Verify component authenticity through authorized TE Connectivity or Schaffner channels due to potential counterfeit risks. Confirm specific datasheet revisions and certification status prior to integration. Note that availability may be restricted in certain regions; consult official distributors for current supply chain information and lead times.

Selection Notes

Select this model for three-phase systems requiring 7 A filtering at 480 VAC. Ensure chassis mounting space accommodates the specified physical dimensions. Verify that wire termination methods align with existing panel wiring infrastructure. Confirm operational temperature ranges meet environmental requirements.

Part Context

This component belongs to the Schaffner FN258 series of three-phase power line filters. It is manufactured by TE Connectivity under the Schaffner brand. The part is distinct from terminal block variants like the FN258P-7-29, which uses different termination styles. It serves as a specialized solution for industrial EMI mitigation.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative three-phase filters based on identical current, voltage, and mounting specifications if direct replacement is required.
