FN2640-10-05-C11

Overview

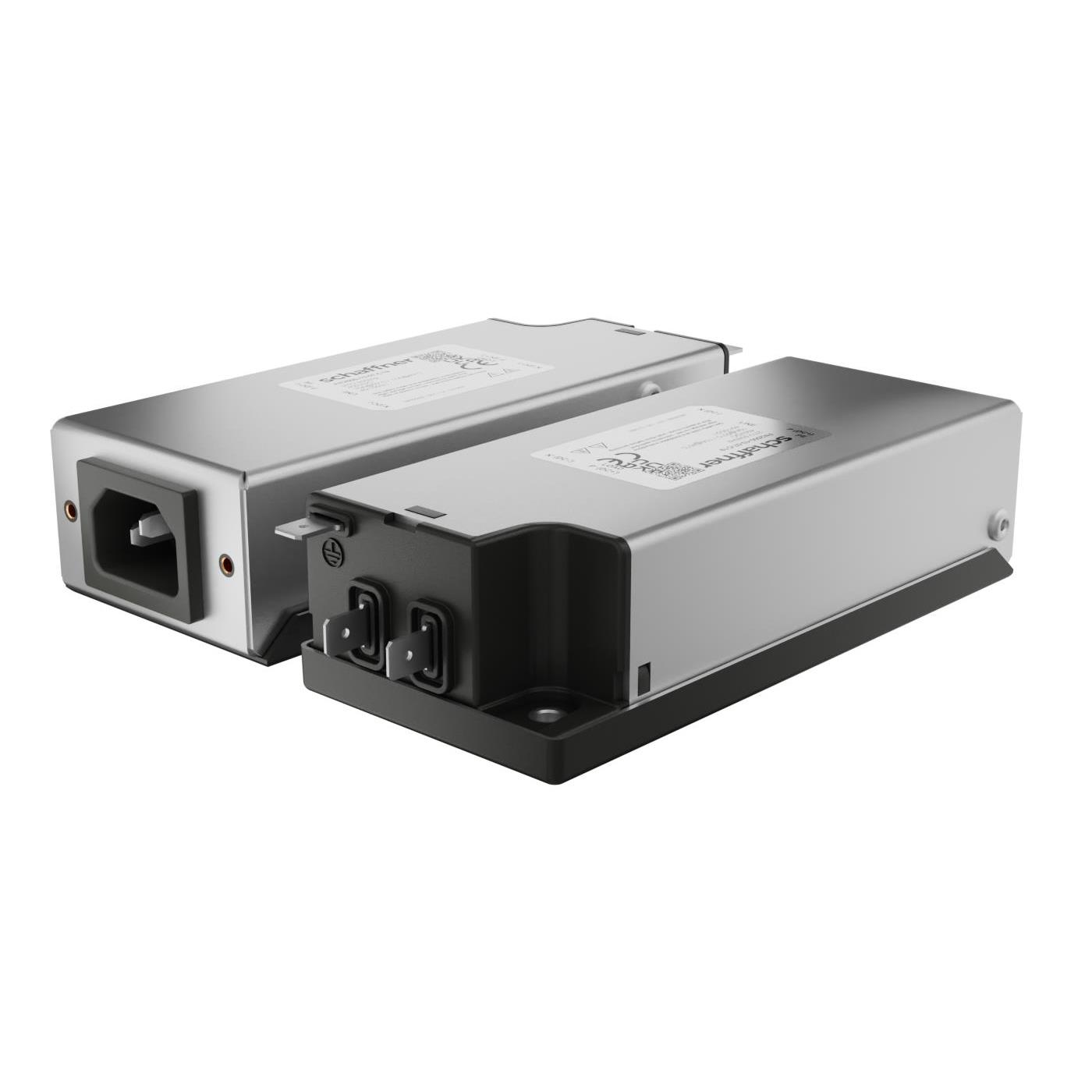

The Schaffner FN2640-10-05-C11 is a single-phase, low-profile EMC/EMI power line filter designed for IEC inlet applications. It features a 1-stage filtering configuration with a rated voltage of 250 VAC and a current rating of 10 A. The unit utilizes faston (tab) terminals measuring 6.3 x 0.8 mm for connection. Key electrical parameters include a leakage current of 370 µA and a capacitance of 4.7 nF. It operates within a frequency range of 0 Hz to 60 Hz and supports rack mount installation styles.

Feature Summary

• Low-profile design optimized for space-constrained environments
• High-performance EMI/EMC filtering for single-phase AC lines
• IEC inlet compatibility for standardized power connections

Applications

• Robotics systems
• Automation equipment
• Data center infrastructure
• 19-inch rack mounted devices

Procurement Notes

Verify the specific suffix codes against official TE Connectivity/Schaffner documentation to ensure correct terminal type and mounting configuration. Confirm that the 10 A current rating aligns with the target application's load requirements. Check for updated compliance certifications such as CE, CSA, or UR before finalizing procurement decisions.

Selection Notes

Select this component when a compact, high-performance filter is required for IEC inlet interfaces in automation or data center contexts. Ensure the 10 A rating meets system demands and that the 1-stage topology provides sufficient attenuation for the specific noise environment. Verify physical dimensions fit the intended rack or chassis layout constraints.

Part Context

This model belongs to the FN2640 series, which comprises single-phase, low-profile EMC/EMI filters manufactured by Schaffner, now part of TE Connectivity. The series is engineered specifically for robotics and automation sectors, offering a balance of high filtering performance and compact form factors suitable for modern industrial and IT hardware installations.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Cross-reference pinouts and mounting hole patterns if replacing in existing assemblies. Ensure any substitute maintains the same 10 A rating and 250 VAC voltage class to preserve safety certifications.
