FN2640-10-07-C11

Overview

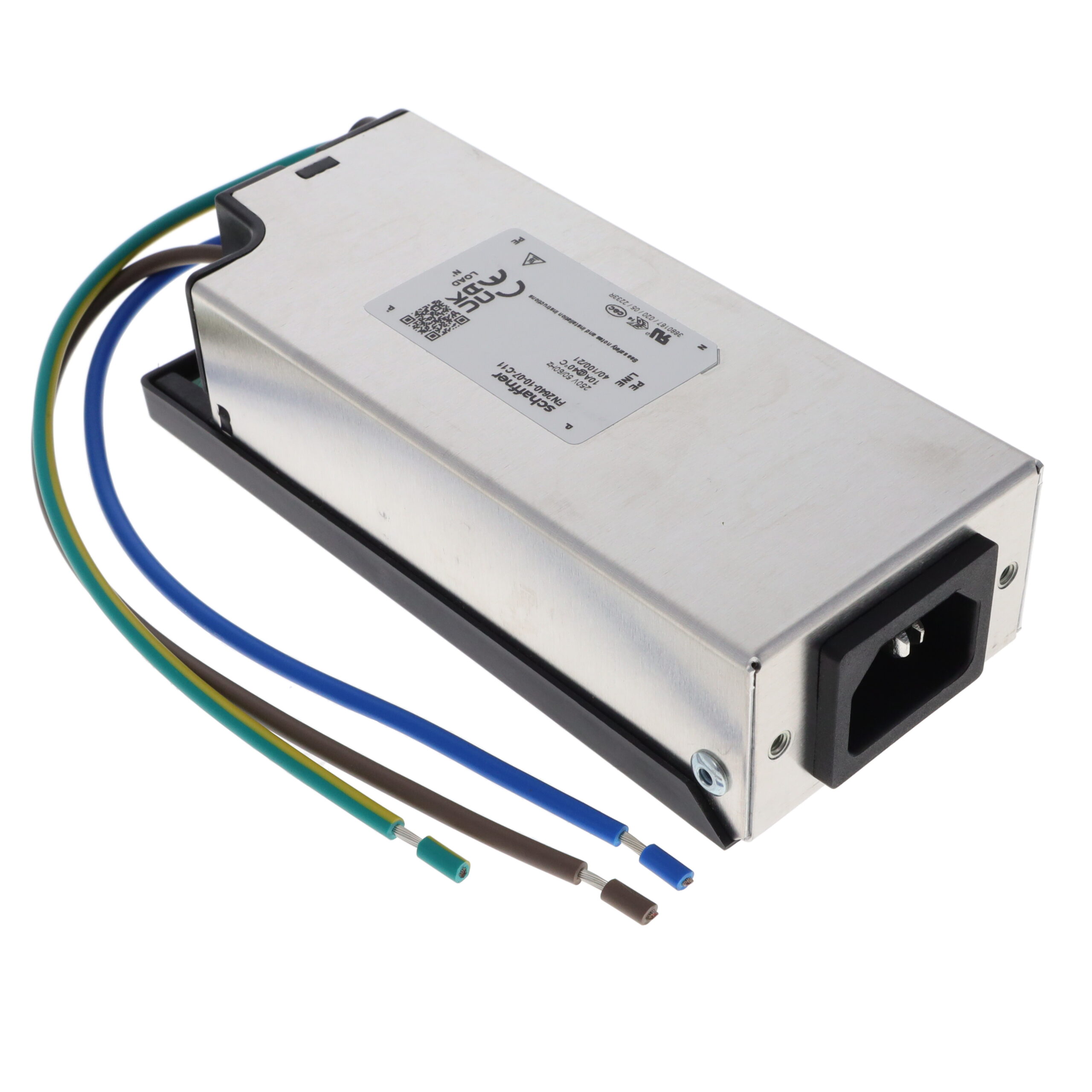

The Schaffner FN2640-10-07-C11 is a single-phase EMC/EMI power line filter designed for IEC inlet applications. It features a low-profile, high-performance architecture suitable for compact installations. The unit is rated for 250 VAC and supports a continuous current of 10 A. It operates within a frequency range of 0 Hz to 60 Hz and utilizes wire leads for termination. Key electrical specifications include a capacitance of 4.7 nF and a leakage current of 370 uA. The filter employs a one-stage configuration and is compliant with RoHS standards.

Feature Summary

• Low-profile design optimized for space-constrained environments such as robotics and data centers.
• High-performance EMC/EMI filtering capability for single-phase AC power lines.
• IEC inlet form factor facilitating direct connection to compatible equipment interfaces.

Applications

• Robotics systems requiring compact power conditioning
• Data center infrastructure equipment
• 19-inch rack-mounted electronic assemblies

Procurement Notes

Verify the specific suffix codes against official TE Connectivity/Schaffner documentation to ensure exact compliance with required voltage, current, and termination specifications. Confirm that the wire lead style matches the intended assembly process. Cross-reference regulatory certifications such as CSA, ENEC, or UR if mandatory for the target market deployment.

Selection Notes

Select this component when a low-profile IEC inlet filter is required for 10 A single-phase applications. Ensure the operating environment accommodates the specified 250 VAC rating and 60 Hz frequency limit. Verify mechanical clearance constraints align with the series' physical dimensions before integration into the final enclosure design.

Part Context

This model belongs to the FN2640 series, which provides dedicated single-phase filters for demanding industrial and commercial applications. The series is characterized by its ability to deliver effective noise suppression in tight spaces. It serves as a critical interface component between the AC power source and sensitive electronic loads.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific leakage current or capacitance values required for strict EMC compliance in sensitive applications.
