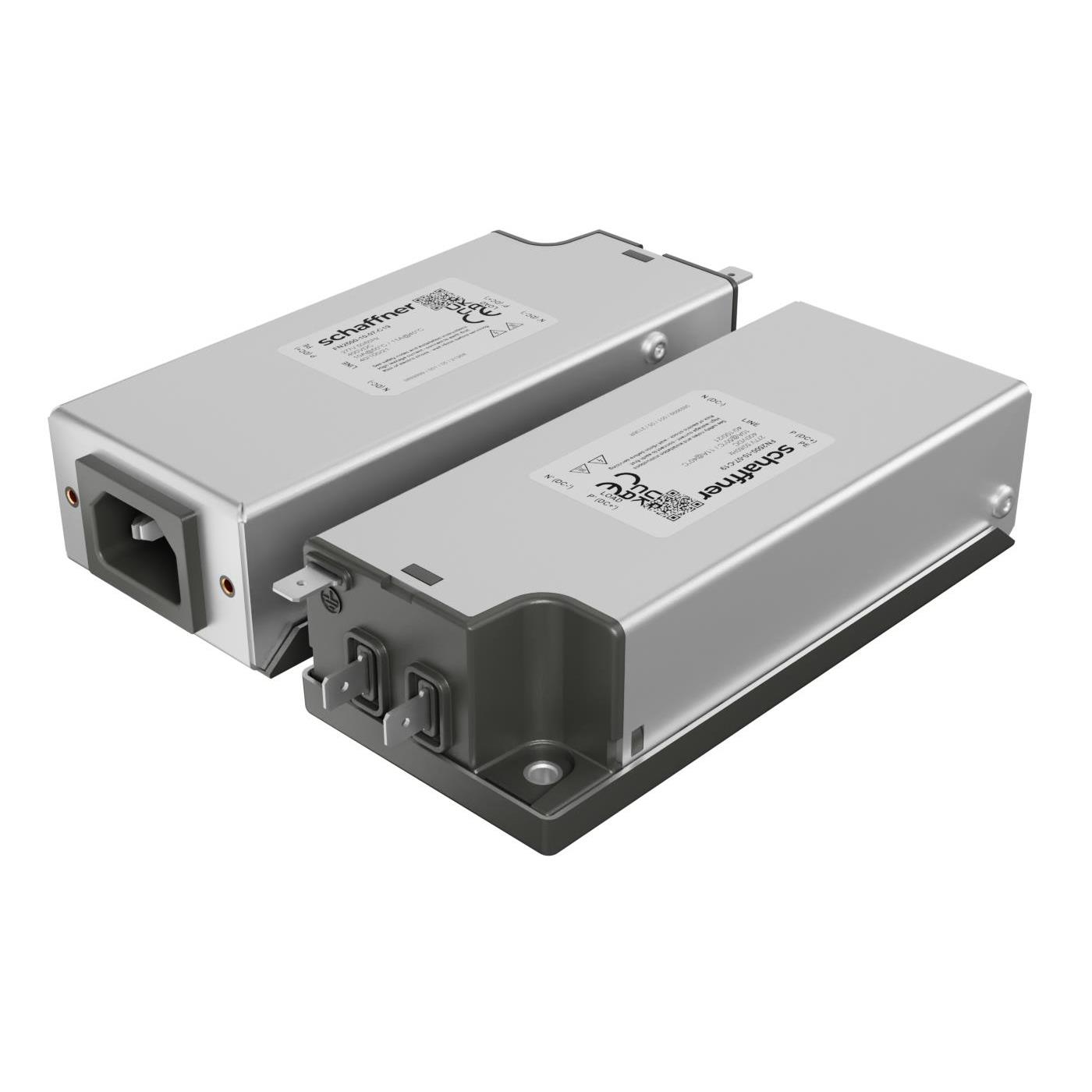

FN2640-15-05-C11

$33.07

Description：LINE FILTER 250VAC 15A CHASS MNT
Series：FN2640
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:e0f8489635f3 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 15A CHASS MNT
Series：FN2640
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：15 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CQC, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C14, Quick Connect
Inductance：4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2640-15-05-C11

Overview

The FN2640-15-05-C11 is a single-phase, low-profile EMC/EMI power line filter from the Schaffner FN2640 series. It features an IEC C20 inlet and is rated for 15 A at 250 VAC. The unit provides one-stage filtering with a capacitance of 4.7 nF and a maximum leakage current of 370 µA. Designed for rack mounting, it operates within a frequency range of 0 Hz to 60 Hz.

Feature Summary

Compact low-profile design optimized for space-constrained environments
IEC C20 inlet configuration for standardized connectivity
High-performance electromagnetic interference suppression

Applications

Robotics systems
Automation equipment
Data center infrastructure
19-inch rack mounted devices

Procurement Notes

Verify that the specific suffix -C11 corresponds to the required certification and terminal configuration for your region. Confirm mechanical dimensions against panel cutout requirements due to the low-profile form factor. Ensure input voltage and current ratings align with the load specifications before finalizing procurement.

Selection Notes

Select this model when a compact, high-current solution is required for single-phase AC lines. The IEC C20 interface suits higher current applications compared to standard C13 inlets. Consider the low-profile chassis for dense rack installations where vertical space is limited.

Part Context

This component belongs to the FN2640 series, which offers low-profile, high-performance IEC inlet filters. The series is engineered specifically for robotics, data centers, and 19-inch rack applications, providing compact EMC solutions with ratings up to 250 VAC.

Replacement Considerations

Cross-reference with other models in the FN2640 series for different current or voltage ratings. Verify compatibility with equivalent low-profile IEC inlet filters from other manufacturers if supply constraints exist.
