FN2640-15-07-C11

Overview

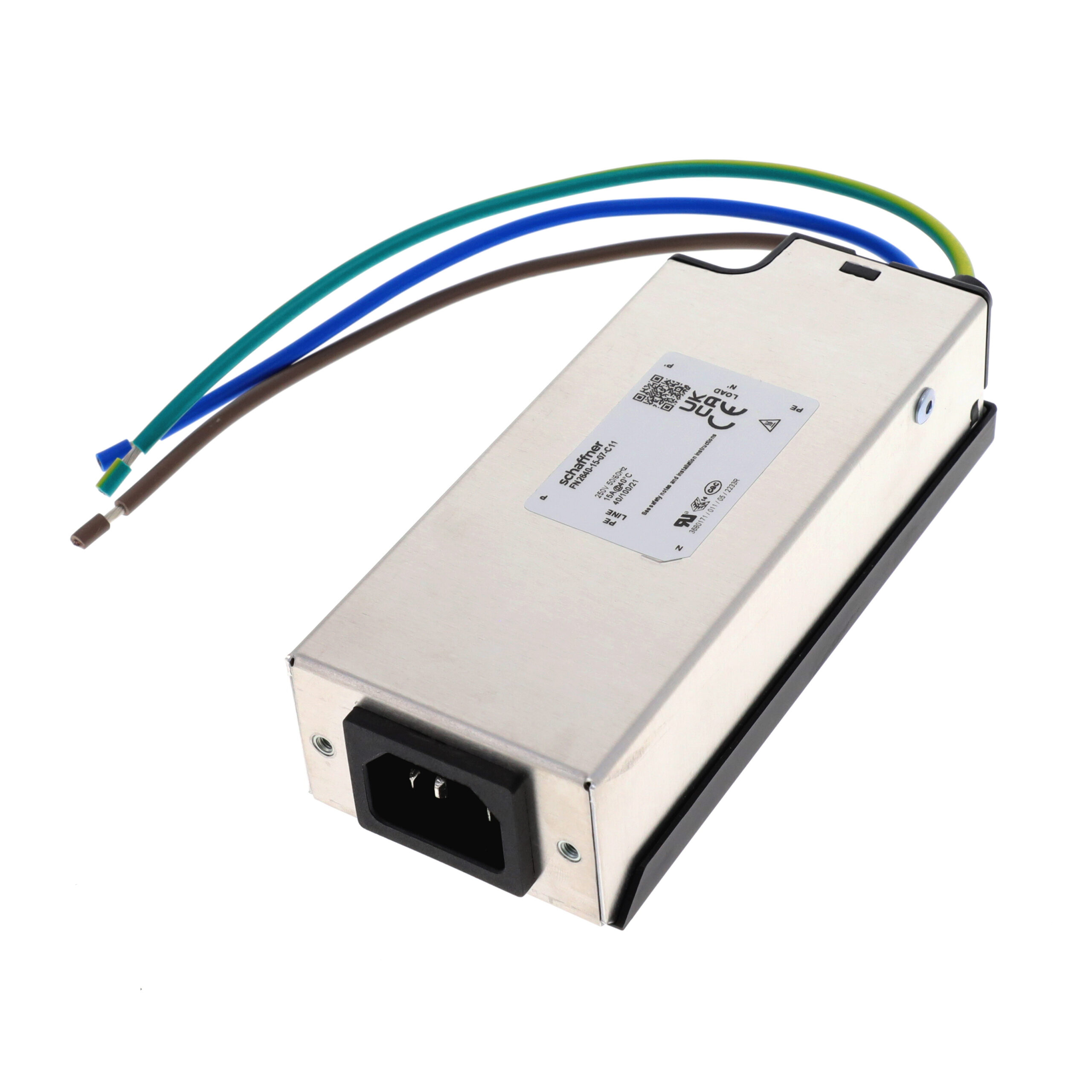

The Schaffner FN2640-15-07-C11 is a single-stage EMI/EMC power line filter designed for IEC inlet applications. It features a 15 A current rating and operates at voltages up to 250 VAC with frequencies from 0 Hz to 60 Hz. The unit utilizes wire termination and rack mount installation styles. Key electrical parameters include a leakage current of 370 µA and a capacitance of 4.7 nF. It complies with RoHS standards and is rated for Pollution Degree 2.

Feature Summary

• Compact, low-profile design optimized for high-performance EMC filtering in space-constrained environments.
• Single-stage filtering configuration providing effective noise suppression for sensitive electronic equipment.
• IEC inlet form factor enabling direct integration into standard power entry modules.

Applications

• Robotics systems requiring compact power filtering
• Data center infrastructure equipment
• 19-inch rack-mounted industrial electronics

Procurement Notes

Verify the specific suffix codes against official TE Connectivity/Schaffner documentation to ensure correct termination type and certification compliance. Confirm that the 15 A rating and 250 VAC voltage align with your system's operational requirements before procurement.

Selection Notes

Select this component when a low-profile, single-stage solution is required for IEC inlet applications. Ensure the 15 A current capacity and 4.7 nF capacitance meet the specific EMI attenuation needs of the target application without exceeding leakage current limits.

Part Context

This model belongs to the FN2640 series, which offers low-profile, high-performance EMC inlet filters. The series is engineered for robotics, data centers, and rack applications, covering a spectrum of dedicated filtering solutions within the Schaffner product portfolio.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific leakage current or capacitance values required for compliance.
