Product Detailed Parameters
- Description：LINE FILTER 250VAC 15A CHASS MNT
- Series：FN2640
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：15 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CQC, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：IEC 320-C20, Threaded Post (M4)
- Inductance：4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

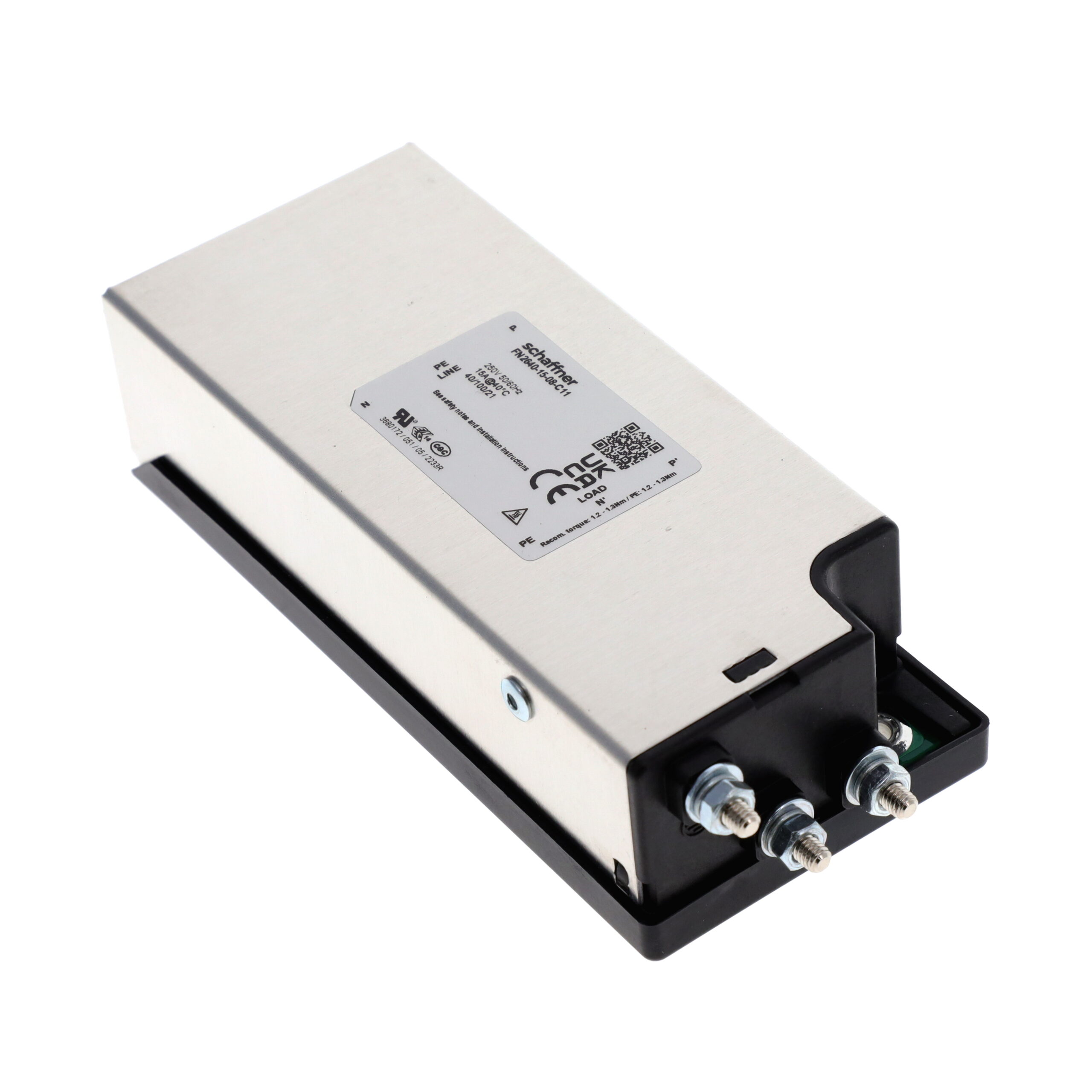

The FN2640-15-08-C11 is a single-phase, low-profile EMC/EMI power line filter from the Schaffner FN2640 series. It features an IEC C20 inlet and is rated for 15 A at 250 VAC. The unit provides one-stage filtering with a maximum leakage current of 370 µA. Designed for rack mount installation, it operates within a frequency range of 0 Hz to 60 Hz. The component complies with RoHS standards and carries CSA, ENEC, and UR certifications.
Feature Summary
- Single-phase low-profile design for compact integration
- IEC C20 inlet configuration for standardized connection
- One-stage EMI/EMC filtering capability
- Rack mount installation style
Applications
- Industrial control systems
- Medical equipment
- Telecommunications infrastructure
Procurement Notes
Verify that the specific part number FN2640-15-08-C11 matches the required 15 A rating and IEC C20 interface. Confirm certification requirements such as CSA, ENEC, or UR are valid for the target market. Ensure the rack mount form factor fits the enclosure constraints. Check for any recent PCN updates regarding packaging or material changes before finalizing procurement.
Selection Notes
Select this model when a single-phase, low-profile filter with an IEC C20 inlet is required for 15 A applications. It is suitable for environments needing one-stage filtering with minimal footprint. Consider the 370 µA leakage current limit for sensitive equipment. Verify that the 250 VAC rating aligns with the system voltage. Rack mount compatibility should be confirmed against panel specifications.
Part Context
This component belongs to the Schaffner FN2640 series, which offers single-phase, low-profile, high-performance IEC input EMC/EMI filters. The series covers a spectrum of dedicated filters designed for various current ratings and configurations. The FN2640 series is known for its compact design and compliance with international safety standards, making it suitable for space-constrained industrial and medical applications.
Replacement Considerations
Cross-reference with other FN2640 variants if different current ratings or termination types are needed. Verify that substitute models maintain the same IEC C20 inlet and rack mount form factor. Ensure replacement parts meet the same certification requirements (CSA, ENEC, UR) and leakage current specifications.
