Product Detailed Parameters
- Description：LINE FILTER 250VAC 15A CHASS MNT
- Series：FN2640
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：15 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CQC, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：IEC 320-C14, Terminal Block
- Inductance：4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

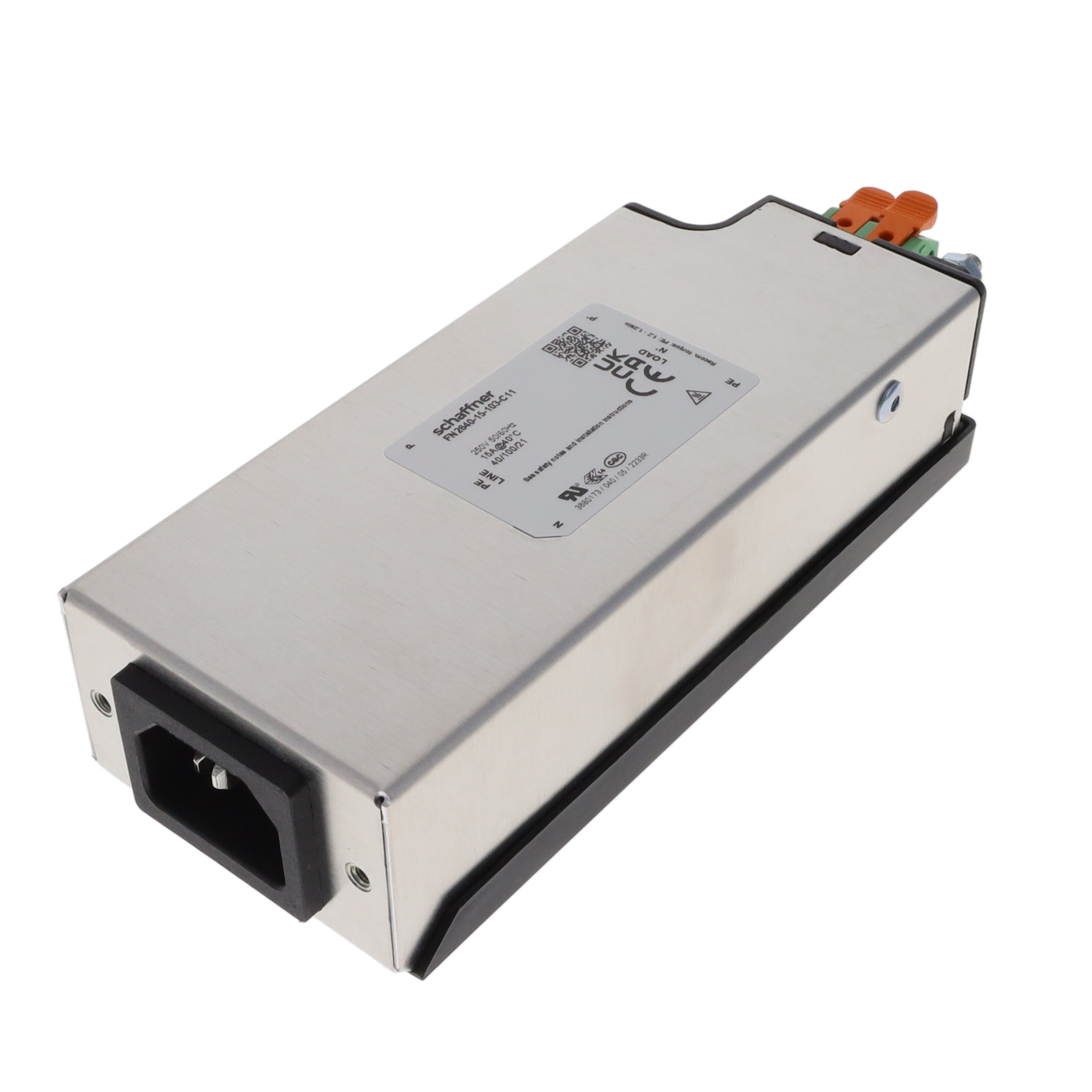

The Schaffner FN2640-15-103-C11 is a single-phase, low-profile power line filter designed for IEC C20 inlet connections. It operates within a frequency range of 0 Hz to 60 Hz and supports a maximum voltage of 250 VAC with a current rating of 15 A. The unit features a 1-stage EMI/EMC filtering topology and includes a 4.7 nF capacitor configuration. Key electrical specifications include a leakage current of 370 µA and compliance with RoHS standards. The component utilizes push-in termination methods and is engineered for rack mount installation styles.
Feature Summary
- Low-profile design optimized for space-constrained environments
- High-performance EMC/EMI filtering capabilities
- Single-phase architecture for dedicated power line protection
Applications
- Robotics systems
- Data center infrastructure
- 19-inch rack mounted equipment
Procurement Notes
Verify the specific suffix codes against official datasheets to confirm terminal type and capacitance values. Ensure compatibility with IEC C20 inlets and check for regional regulatory certifications required for your target market. Confirm lead times directly with authorized distributors as availability varies by region.
Selection Notes
Select this model when space constraints require a low-profile form factor alongside high-performance noise suppression. Ensure the application demands a 15 A current rating and 250 VAC operation. Verify that the push-in termination style aligns with the PCB or chassis mounting requirements of the final assembly.
Part Context
This component belongs to the FN2640 series from Schaffner, which offers a spectrum of dedicated single-phase filters. The series is characterized by its compact dimensions and suitability for demanding industrial and commercial applications requiring robust electromagnetic interference mitigation.
Replacement Considerations
Cross-reference with other FN2640 variants such as FN2640-16-08-C11 for different current ratings. Verify pinout and mechanical dimensions before substitution to ensure physical compatibility with existing IEC C20 connectors.
