Product Detailed Parameters
- Description：LINE FILTER 250VAC 16A CHASS MNT
- Series：FN2640
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：16 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CQC, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

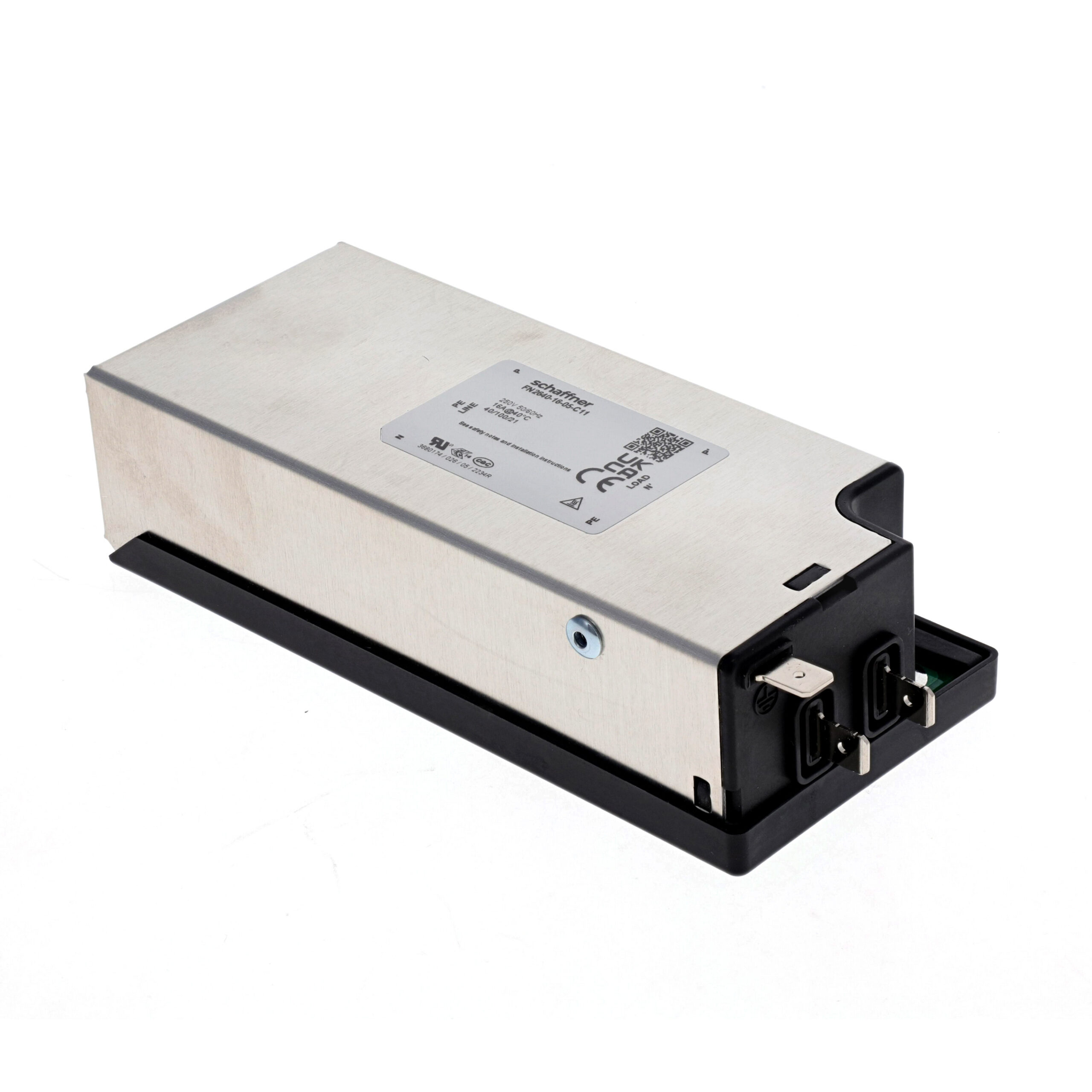

The FN2640-16-05-C11 is a single-phase EMI/EMC power line filter from the Schaffner FN2640 series. It features a 16 A current rating and a 250 VAC voltage rating, designed for rack mount installation. The component utilizes an IEC 320 C20 inlet for termination and operates within a frequency range of 0 Hz to 60 Hz. Key electrical specifications include a maximum leakage current of 370 µA and a capacitance value of 4.7 nF. This filter provides one-stage filtering performance suitable for standard AC power applications.
Feature Summary
- Single-phase EMC/EMI filtering configuration
- IEC 320 C20 connector interface
- Rack mount installation style
Applications
- Industrial equipment power supply protection
- Medical device power input filtering
- IT infrastructure power conditioning
Procurement Notes
Verify that the specific part number FN2640-16-05-C11 matches the required 16 A rating and IEC C20 inlet configuration for your design. Confirm compliance with relevant regional safety standards such as CSA, ENEC, or UR before finalizing procurement. Ensure the operating environment remains within the specified temperature and voltage limits to maintain filter integrity and safety certification validity.
Selection Notes
Select this component when a low-profile, single-phase filter with an integrated IEC inlet is required for rack-mounted systems. The 16 A rating supports moderate power loads, while the 250 VAC rating suits standard commercial and industrial voltages. Consider the 370 µA leakage current limit if sensitive patient-connected or precision measurement equipment is involved in the application chain.
Part Context
This component belongs to the Schaffner FN2640 series, which offers a range of dedicated single-phase filters. The series is characterized by low-profile designs intended for high-performance EMC/EMI suppression in various electronic systems. The FN2640 models typically cover frequencies up to 60 Hz and support voltages up to 277 VAC, providing versatile solutions for global power standards.
Replacement Considerations
Cross-reference with other FN2640 variants if different current ratings or terminal styles are needed. Verify that any substitute maintains the same IEC C20 interface and rack mount compatibility to ensure mechanical fit without redesigning the chassis mounting structure.
