FN2640-16-07-C11

Overview

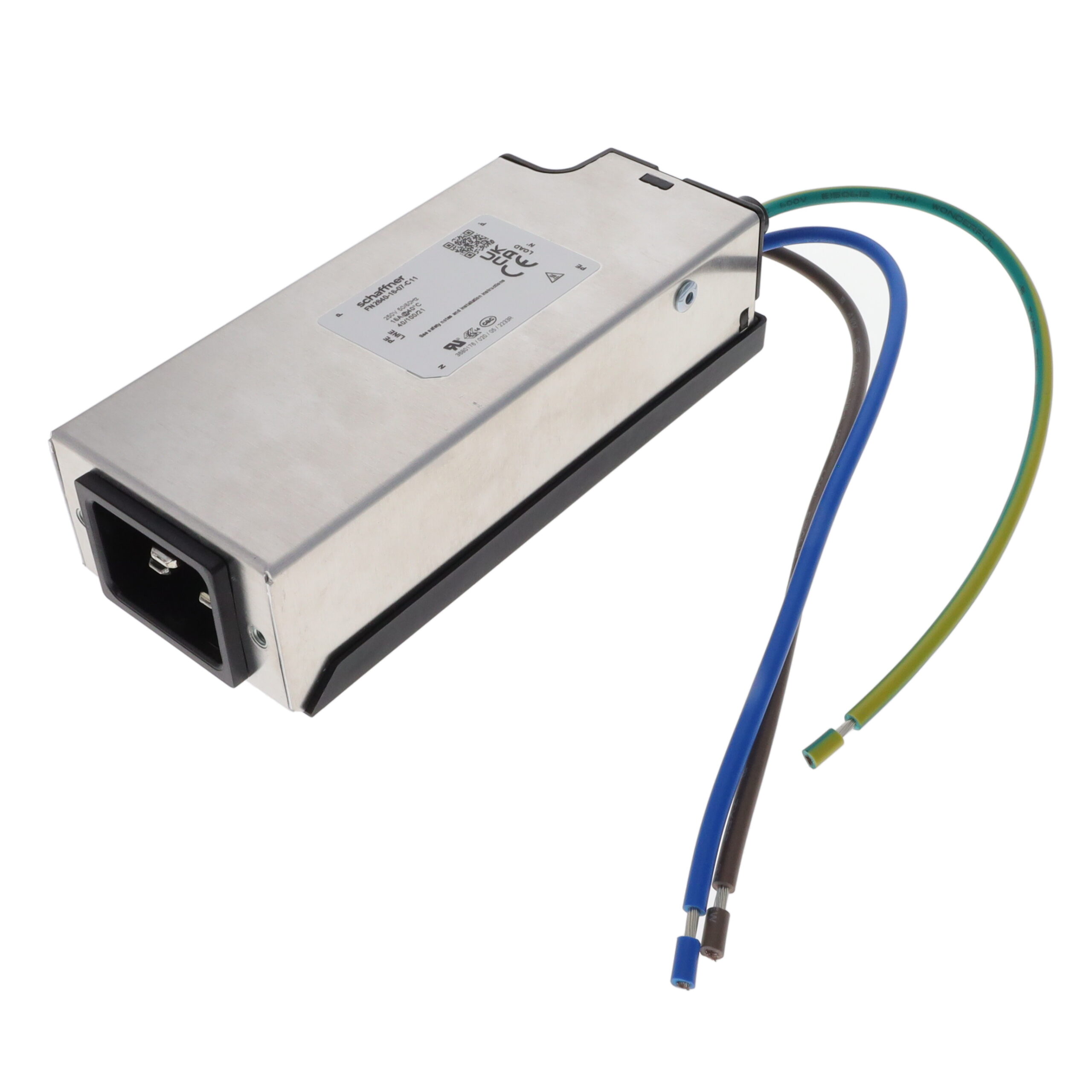

The Schaffner FN2640-16-07-C11 is a single-phase IEC inlet EMI/EMC filter designed for low-profile applications. It operates at frequencies from 0 Hz to 60 Hz with a maximum voltage rating of 250 VAC. The component features a rated current of 16 A and utilizes wire termination for rack mounting. Key electrical parameters include a capacitance of 4.7 nF, a leakage current of 370 µA, and compliance with RoHS standards.

Feature Summary

• Compact low-profile design suitable for space-constrained environments
• High-performance electromagnetic interference mitigation
• IEC inlet configuration for direct power connection

Applications

• Robotics systems
• Data centers
• 19-inch rack installations

Procurement Notes

Verify the specific part number against official TE Connectivity / Schaffner documentation to confirm exact ratings and physical dimensions. Ensure compatibility with system voltage and current requirements before integration. Cross-reference datasheets for accurate pinout and mounting specifications to prevent installation errors.

Selection Notes

Select this component for single-phase AC power lines requiring effective noise suppression in compact form factors. Ideal for equipment where standard filters exceed available depth constraints. Confirm that the 16 A current rating and 250 VAC voltage limit align with the target application's operational parameters.

Part Context

This model belongs to the FN2640 series, which provides high-performance EMC filtering solutions. The series is engineered for IEC inlet applications, offering a balance of attenuation performance and physical size. It serves as a critical component for ensuring electromagnetic compatibility in sensitive electronic equipment.

Replacement Considerations

Compatible substitutes within the same series include FN2640-15-07-C11 and FN2640-20-103-C11. Verify that alternative part numbers match the required current rating and termination style before substitution.
