FN2640-16-103-C11

Overview

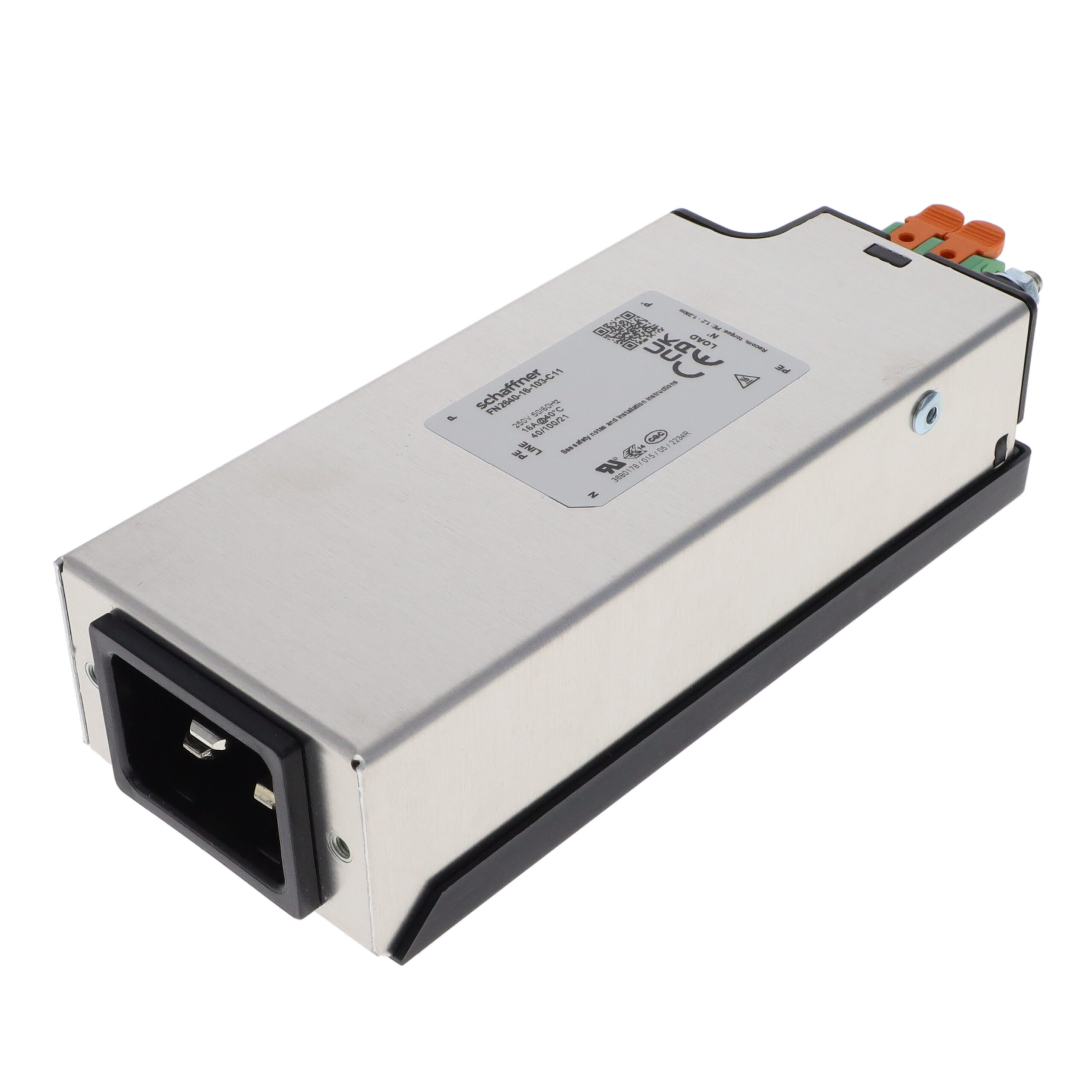

The FN2640-16-103-C11 is a single-phase EMC/EMI line filter manufactured by TE Connectivity Schaffner. It features a 16 A current rating and operates at 250 VAC within the DC ~ 60 Hz frequency range. The unit utilizes a one-stage configuration with IEC 320-C14 input connectivity and terminal block termination. Designed for chassis mounting, this filter provides electromagnetic interference suppression for AC power supplies.

Feature Summary

• Single-phase EMI/EMC filtering capability
• IEC 320-C14 input connector interface
• Terminal block electrical termination style

Applications

• Data center equipment
• Audio and video equipment

Procurement Notes

Verify the specific manufacturer designation, as sources list both TE Connectivity Schaffner and Schaffner EMC Inc. Confirm that the C11 suffix corresponds to the terminal block variant rather than other connection types. Ensure compatibility with the required 16 A load and 250 VAC supply voltage before integration.

Selection Notes

Select this component when a single-stage solution is sufficient for noise reduction in audio/video or data center applications. The IEC 320-C14 inlet simplifies panel integration compared to hardwired options. Verify that the terminal block termination meets the system's wiring requirements.

Part Context

This model belongs to the FN2640 series of AC/DC chassis filters. The series is engineered for high-performance electromagnetic interference suppression in sensitive electronic environments. The product line supports various current ratings and configurations to meet diverse industrial standards.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
