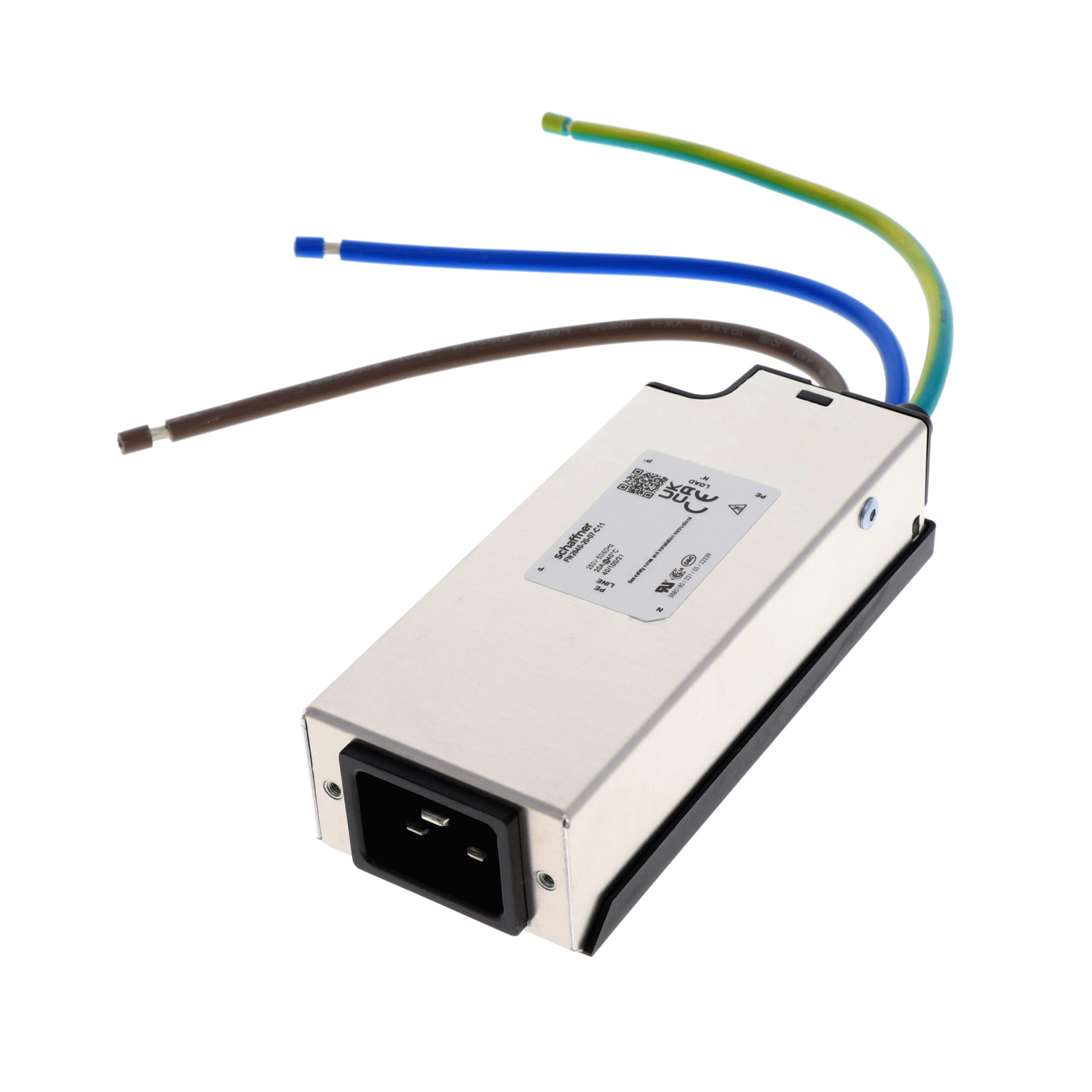

FN2640-20-07-C11

$33.34

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN2640
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:2d7378adc84e Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN2640
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CQC, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C14, Wire Leads
Inductance：2.4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2640-20-07-C11

Overview

The Schaffner FN2640-20-07-C11 is a single-phase EMI/EMC power line filter designed for IEC inlet applications. It features a low-profile, high-performance architecture suitable for robotics, data centers, and 19-inch rack installations. The component operates at frequencies from DC to 60Hz with a maximum voltage rating of 250VAC. It provides a current capacity of 20A and includes wire leads for connection.

Feature Summary

Low-profile design optimized for space-constrained environments
High-performance EMC filtering capabilities
IEC inlet configuration for direct equipment integration

Applications

Robotics systems
Data center infrastructure
19-inch rack mounted equipment

Procurement Notes

Verify the specific part number against official TE Connectivity Schaffner documentation to confirm lead times and availability. Ensure compatibility with existing IEC inlet standards and mounting requirements before procurement.

Selection Notes

Select this model for applications requiring compact form factors and robust EMI suppression in industrial or IT environments. Confirm that the 20A current rating and 250VAC voltage specifications align with the system's electrical demands.

Part Context

This component belongs to the FN2640 series, which offers dedicated single-phase filters. The series is engineered for high performance in demanding electromagnetic environments, providing reliable noise reduction for sensitive electronic equipment.
