FN2640-20-103-C11

Overview

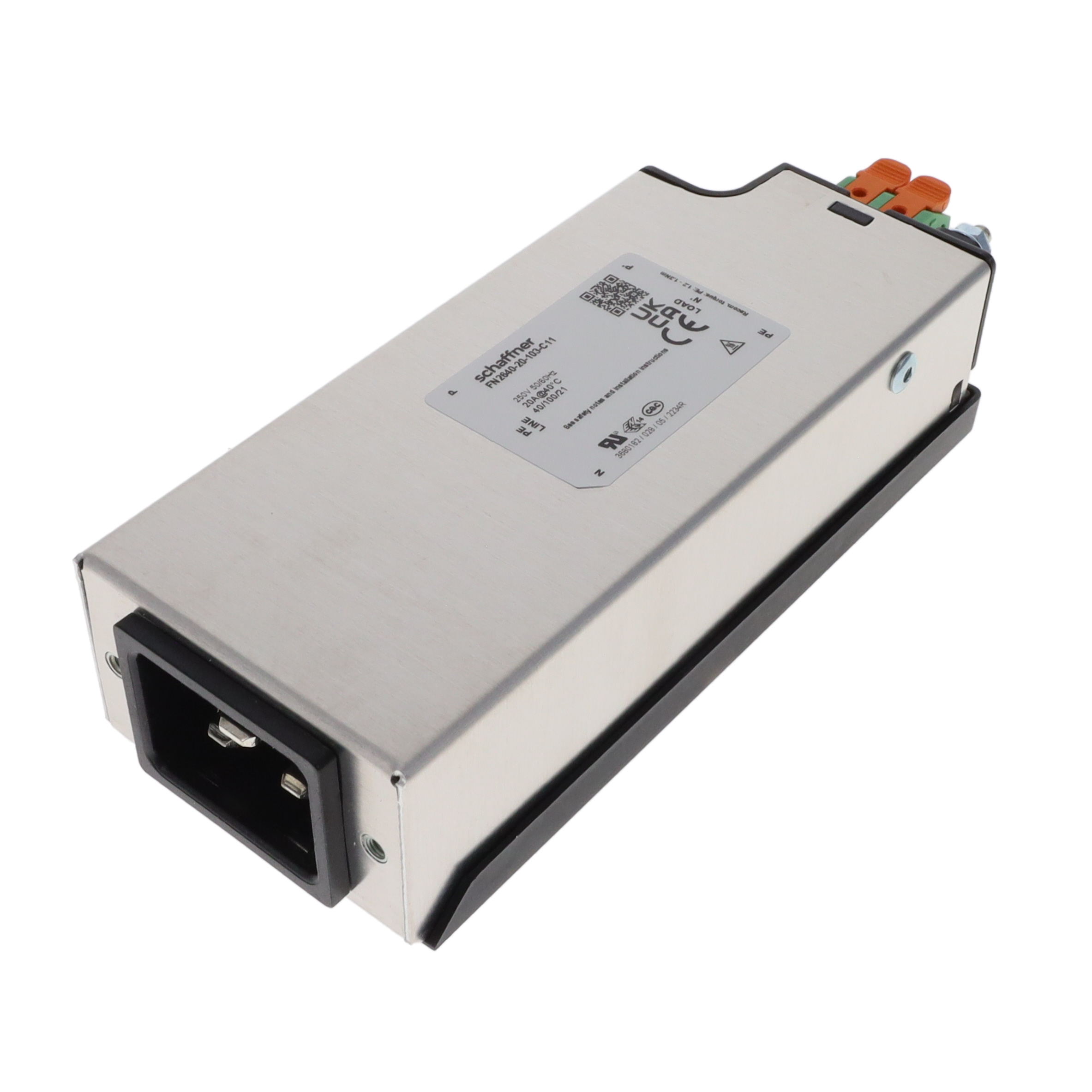

The FN2640-20-103-C11 is a single-phase, low-profile EMC/EMI power line filter from the Schaffner FN2640 series. It features an IEC inlet with push-in termination and is rated for 250 VAC at 20 A. Designed for high-performance noise suppression, it utilizes a one-stage filtering architecture. The unit supports rack mounting and operates within standard industrial frequency ranges.

Feature Summary

• Low-profile design optimized for space-constrained environments
• High-performance electromagnetic interference suppression
• IEC inlet configuration with push-in termination style

Applications

• Robotics systems
• Data center infrastructure
• 19-inch rack mounted equipment

Procurement Notes

Verify the specific suffix '103' against official datasheets to confirm terminal type and capacitance values. Ensure the 20A current rating aligns with system requirements. Confirm RoHS compliance status through manufacturer documentation prior to integration.

Selection Notes

Select this model for applications requiring compact form factors without compromising EMI performance. The push-in termination facilitates rapid assembly in panel designs. Verify that the 250VAC rating matches the local mains voltage standards of the deployment region.

Part Context

Part of the FN2640 series, which provides dedicated single-phase filters for various industrial needs. The series is engineered to meet stringent EMC standards while maintaining a small footprint suitable for modern electronic enclosures and control cabinets.

Replacement Considerations

Cross-reference with FN2640-16 variants for lower current requirements or FN2660 series for similar form factors. Verify pinout compatibility before substituting any alternative Schaffner models.
