Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：FN2660
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：L1 - 8.3mH, L2 - 8.3mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

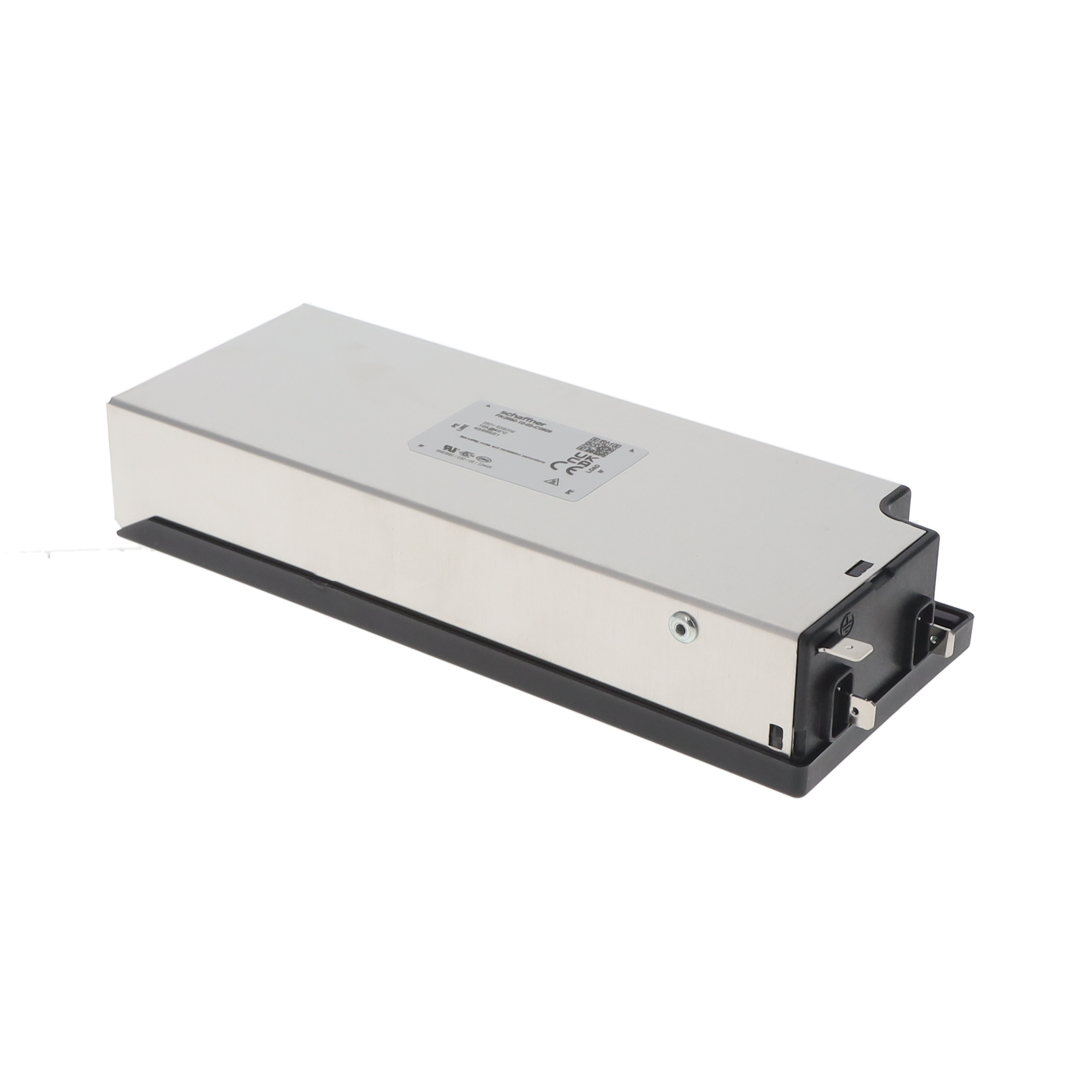

The FN2660-10-05-C0909 is a single-phase power line filter from the Schaffner FN2660 series, designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 10 A, operating within a frequency range of 0 Hz to 60 Hz. The unit provides an inductance of 8.3 mH per phase and has a maximum leakage current of 350 mA. Physical dimensions are 184.7 mm in length, 73 mm in width, and 35 mm in height. It utilizes quick connect terminals for termination and functions as an EMC/EMI filter.
Feature Summary
- Provides electromagnetic interference suppression for single-phase AC power lines
- Designed for secure chassis mounting applications
- Utilizes faston quick connect terminal interfaces for circuit integration
Applications
- Industrial equipment requiring EMI filtering
- Medical devices with strict emission standards
- Information technology hardware power inputs
Procurement Notes
Verify the specific suffix codes against official TE Connectivity or Schaffner documentation to ensure exact electrical and mechanical compatibility. Confirm that the quick connect terminal type matches the mating connector specifications. Check RoHS compliance status through official manufacturer declarations prior to final procurement decisions.
Selection Notes
Select this component when a 10 A single-phase filter is required for chassis installation. Ensure the application voltage does not exceed 250 VAC. Verify that the physical envelope fits the available chassis space. Confirm that the quick connect termination style aligns with the system wiring harness requirements.
Part Context
This part belongs to the FN2660 series of single-phase power line filters manufactured by Schaffner, now part of TE Connectivity. The series is engineered for industrial and commercial applications requiring robust EMI attenuation. The model number indicates specific current, voltage, and terminal configuration variants within this product family.
Replacement Considerations
Consult official cross-reference lists for verified substitutes. Generic equivalents may differ in leakage current or inductance values. Ensure any replacement maintains the same chassis mount form factor and terminal interface type.
