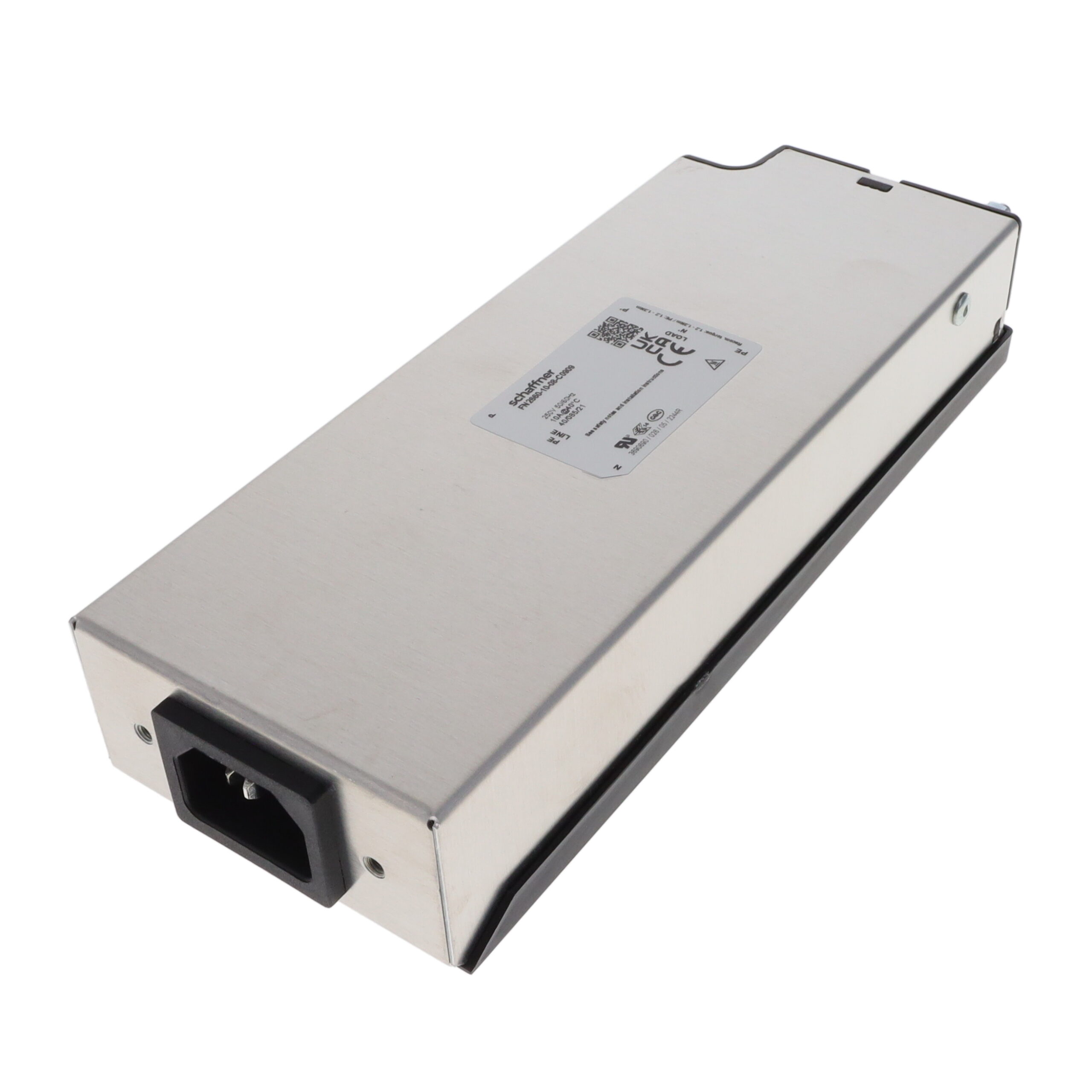

FN2660-10-08-C0909

$33.41

Description：LINE FILTER 250VAC 10A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:6140dbe138d8 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 10A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：10:00 AM
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C20, Threaded Post (M4)
Inductance：L1 - 8.3mH, L2 - 8.3mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2660-10-08-C0909

Overview

The Schaffner FN2660-10-08-C0909 is a single-phase power line filter rated for 10 A and 250 VAC. It features chassis mounting with IEC 320-C20 connectors and threaded terminals. The component operates within a temperature range of -40°C to 85°C and provides EMC/EMI filtering for general-purpose applications.

Feature Summary

Single-phase EMC/EMI filtering capability
IEC 320-C20 input connector integration
Chassis mount construction with threaded output terminals

Applications

General purpose equipment
HMI systems
Display projects with external peripherals

Procurement Notes

Verify the specific current rating of 10 A and voltage rating of 250 VAC against system requirements. Confirm the termination style includes both IEC 320-C20 connectors and threaded terminals. Ensure the chassis mount form factor fits the enclosure design. Check RoHS compliance documentation for regulatory adherence.

Selection Notes

Select this model when a compact single-phase solution is required for 10 A circuits. The integrated IEC inlet simplifies wiring compared to discrete filters. Verify that the operating temperature range of -40°C to 85°C meets environmental conditions. Consider the physical dimensions for chassis cutout compatibility.

Part Context

This component belongs to the FN2660 series of power line filters manufactured by TE Connectivity / Schaffner. The series offers various current ratings and termination options. The FN2660-10-08-C0909 specifically denotes the 10 A variant with defined connector and terminal configurations.

Replacement Considerations

Cross-reference part number 823088-SF as an alias. Verify electrical parameters match before substitution. Ensure mechanical mounting holes align with existing chassis designs.
