FN2660-10-103-C0909

Overview

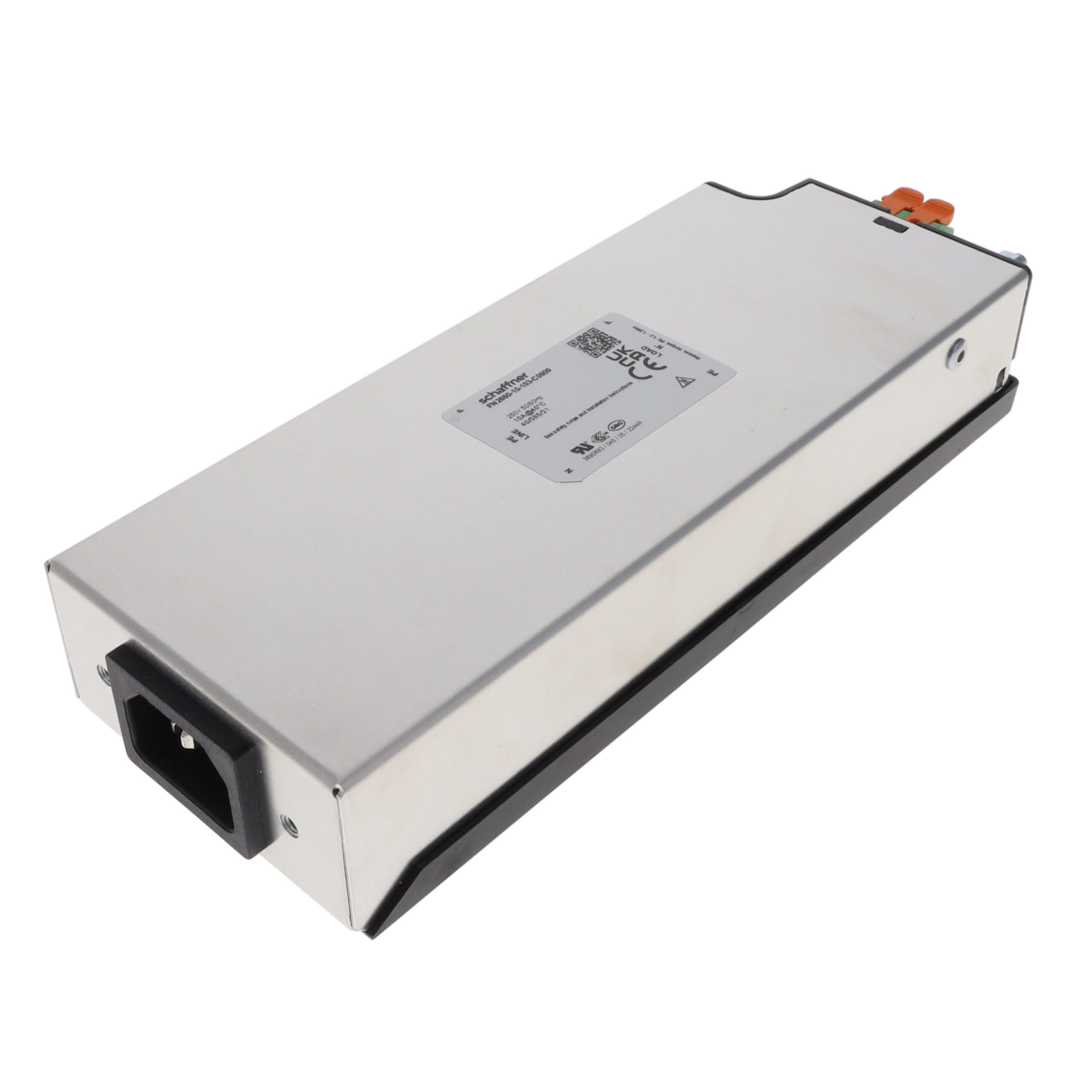

The FN2660-10-103-C0909 is a single-phase EMC/EMI power line filter manufactured by TE Connectivity / Schaffner. It features a 250 VAC voltage rating and a 10 A current capacity, designed for operation between 0 Hz and 60 Hz. The unit utilizes chassis mounting with quick connect terminals and exhibits a leakage current of 350 mA. Physical dimensions are 184.7 mm in length, 73 mm in width, and 35 mm in height, weighing approximately 500 g. Inductance values are specified at 8.3 mH per phase.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• IEC 320-C14 input connector compatibility
• Chassis mount design for secure installation

Applications

• Industrial machinery power conditioning
• Medical equipment EMI suppression
• Information technology hardware protection

Procurement Notes

Verify the complete part number including suffixes to ensure correct terminal type and mounting configuration. Confirm voltage and current ratings match system requirements. Check RoHS compliance status via official documentation. Validate physical dimensions against enclosure constraints before procurement.

Selection Notes

Select this component for applications requiring single-phase filtering with specific IEC inlet integration. Ensure the 10 A rating accommodates peak loads. Consider the chassis mount style for panel integration. Verify thermal management capabilities within the operating temperature range of -40 C to +85 C.

Part Context

This model belongs to the FN2660 series of power line filters from TE Connectivity / Schaffner. The series provides EMC/EMI solutions for single-phase AC lines. The product falls under the Power Condition sub-category within broader power supply protection classifications.

Replacement Considerations

Cross-reference with equivalent Schaffner models offering identical current ratings and form factors. Verify terminal interface compatibility before substitution. Ensure replacement parts meet the same regulatory standards.
