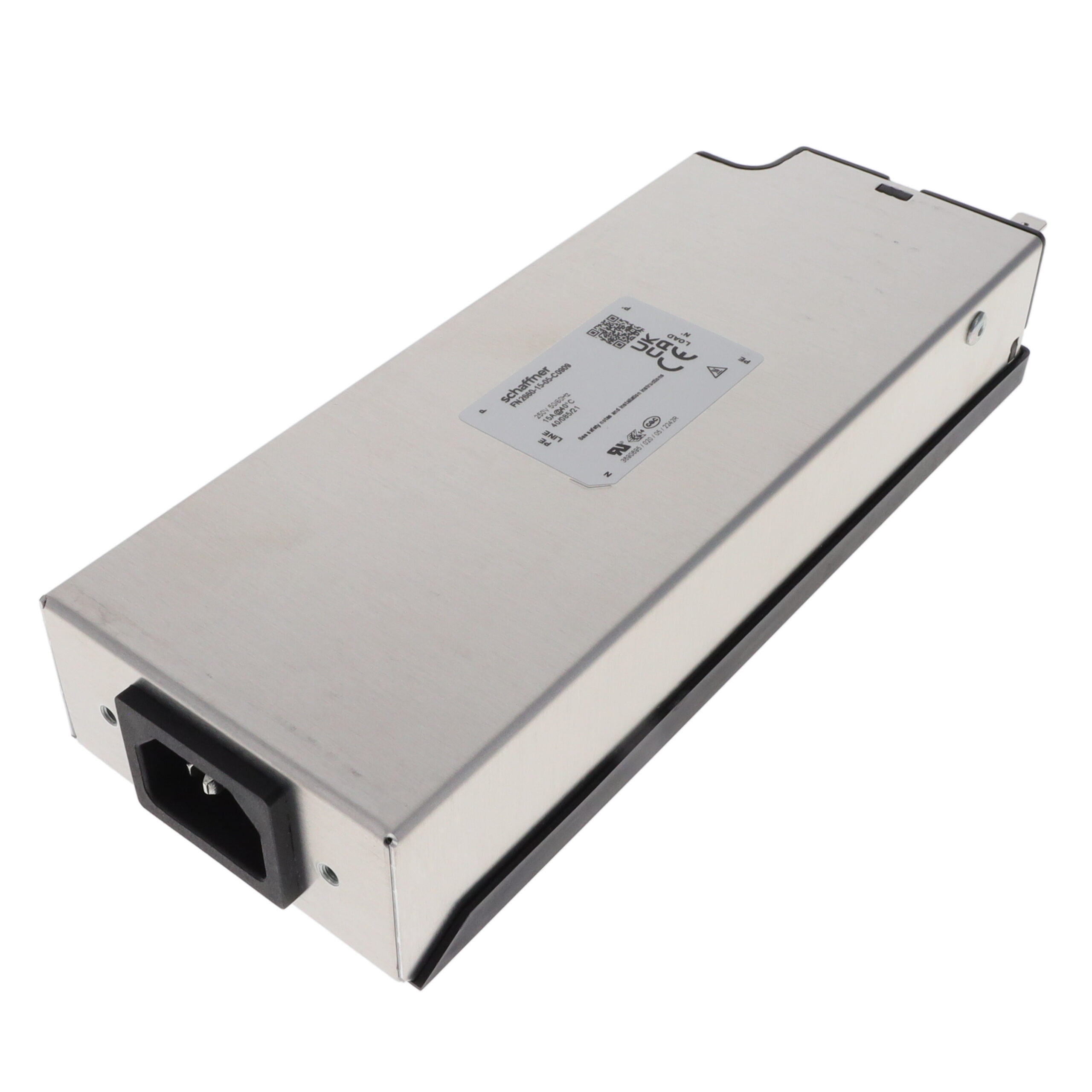

FN2660-15-05-C0909

$44.84

Description：LINE FILTER 250VAC 15A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:a08d19b68295 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 15A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：15 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C14, Quick Connect
Inductance：L1 - 4mH, L2 - 4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2660-15-05-C0909

Overview

The FN2660-15-05-C0909 is a single-phase EMC/EMI power line filter from the Schaffner FN2660 series. It features a two-stage design with a rated current of 15 A and a voltage rating of 250 VAC at 60 Hz. The unit utilizes quick connect terminals for termination and supports chassis mounting. Key electrical parameters include an inductance of 8.3 mH per line and a maximum leakage current of 350 mA. Physical dimensions are 184.7 mm in length, 73 mm in width, and 35 mm in height, with an operating temperature range of -40 C to +85 C.

Feature Summary

Two-stage filtering architecture for enhanced noise attenuation
Low-profile chassis mount construction
IEC 320-C14 input compatibility

Applications

Industrial equipment power conditioning
Medical device power supplies
Information technology hardware

Procurement Notes

Verify the manufacturer part number against official TE Connectivity or Schaffner documentation to ensure authenticity. Confirm that the specific suffix matches the required terminal type and mounting configuration. Cross-reference datasheet specifications for leakage current and inductance values relevant to your system safety and performance requirements before procurement.

Selection Notes

Select this component when a single-phase, low-profile filter is required for 15 A applications. Ensure the chassis mounting style and quick connect terminals align with the enclosure design. Verify that the 250 VAC rating and 60 Hz frequency operation meet the input power specifications of the target equipment.

Part Context

This model belongs to the FN2660 series, which comprises single-phase, low-profile, high-performance IEC input EMC/EMI filters. The series covers a spectrum of dedicated filters designed for compact installations where space constraints are critical but high attenuation performance is still required.

Replacement Considerations

Consult official substitution guides for equivalent ratings within the FN2660 series. Verify mechanical footprint and terminal compatibility before replacing.
