Product Detailed Parameters
- Description：LINE FILTER 250VAC 15A CHASS MNT
- Series：FN2660
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：15 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：IEC 320-C20, Threaded Post (M4)
- Inductance：L1 - 4mH, L2 - 4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

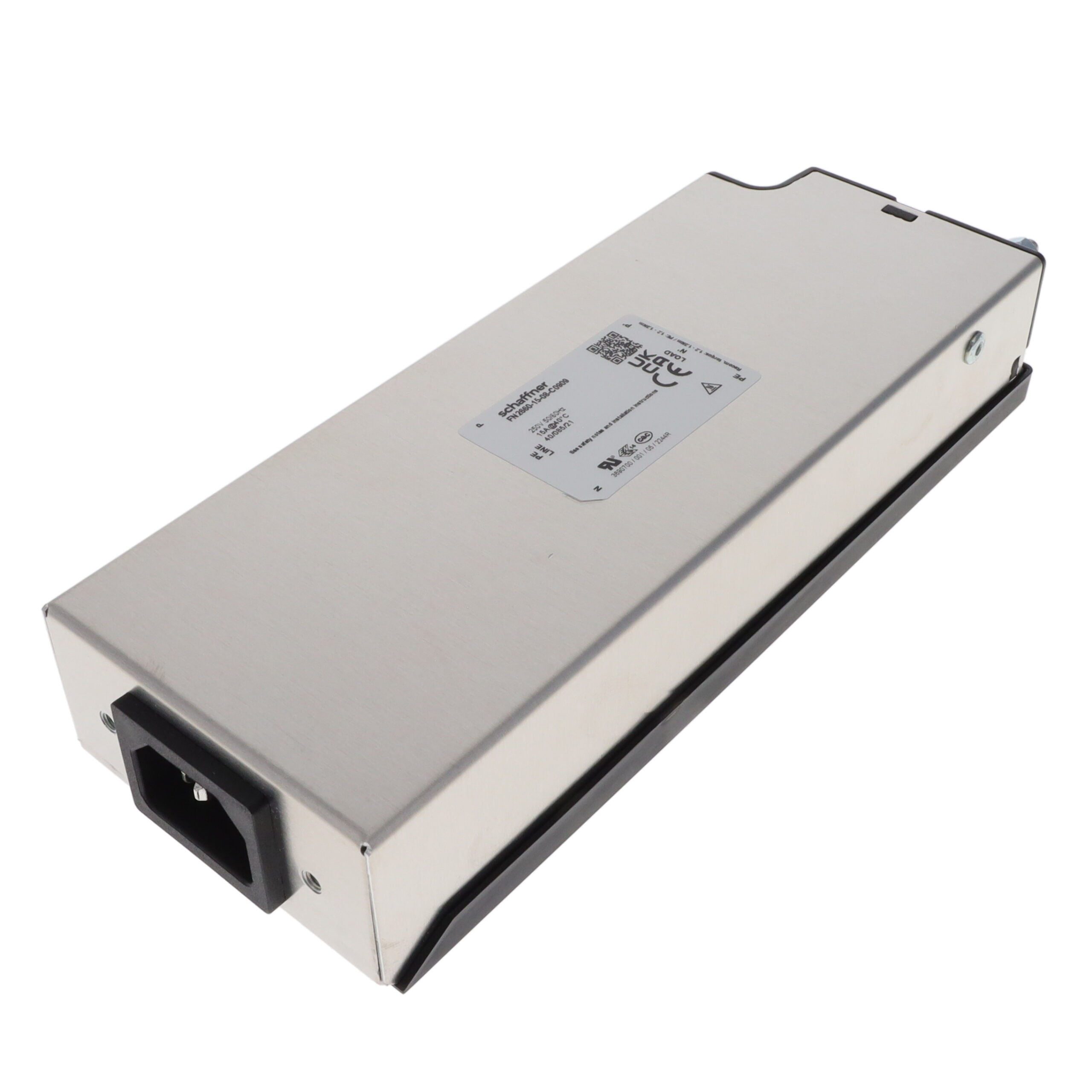

The FN2660-15-08-C0909 is a single-phase IEC input EMC/EMI power line filter manufactured by Schaffner. It features a chassis mount design with quick connect terminals for secure installation. The unit operates within a frequency range of 0 Hz to 60 Hz and supports a rated voltage of 250 VAC. With a current rating of 15 A, it provides effective noise suppression for sensitive electronic equipment. The physical dimensions are 184.7 mm in length, 73 mm in width, and 35 mm in height, weighing approximately 500 g.
Feature Summary
- Single-phase low-profile construction designed for high-performance electromagnetic interference suppression
- IEC input compliance ensuring compatibility with standard international power inlet connectors
- Chassis mounting configuration providing stable mechanical integration into equipment enclosures
Applications
- Industrial control systems requiring robust EMI protection
- Medical equipment adhering to strict electromagnetic compatibility standards
- Information technology hardware sensitive to power line noise
Procurement Notes
Verify the specific current rating and terminal type against the official datasheet before procurement. Confirm that the chassis mount style aligns with the available panel space and mounting hardware constraints. Ensure the operating temperature range meets the environmental requirements of the intended deployment location. Cross-reference the manufacturer part number to avoid confusion with similar series variants.
Selection Notes
Select this model when a single-phase solution with a 15 A capacity is required for IEC-compliant applications. Consider the physical dimensions to ensure fitment within the designated enclosure space. Evaluate the leakage current specifications against safety regulations applicable to the end product. Compare performance characteristics with other filters in the FN2660 series to determine the optimal balance between attenuation and size.
Part Context
This component belongs to the FN2660 series, which offers a spectrum of dedicated single-phase filters from Schaffner. The series is characterized by its low-profile design and high-performance capabilities for EMC/EMI suppression. These filters are engineered to meet stringent international standards for electromagnetic compatibility in various industrial and commercial environments.
Replacement Considerations
Consult the official Schaffner cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical electrical ratings and physical footprint to guarantee compatibility.
