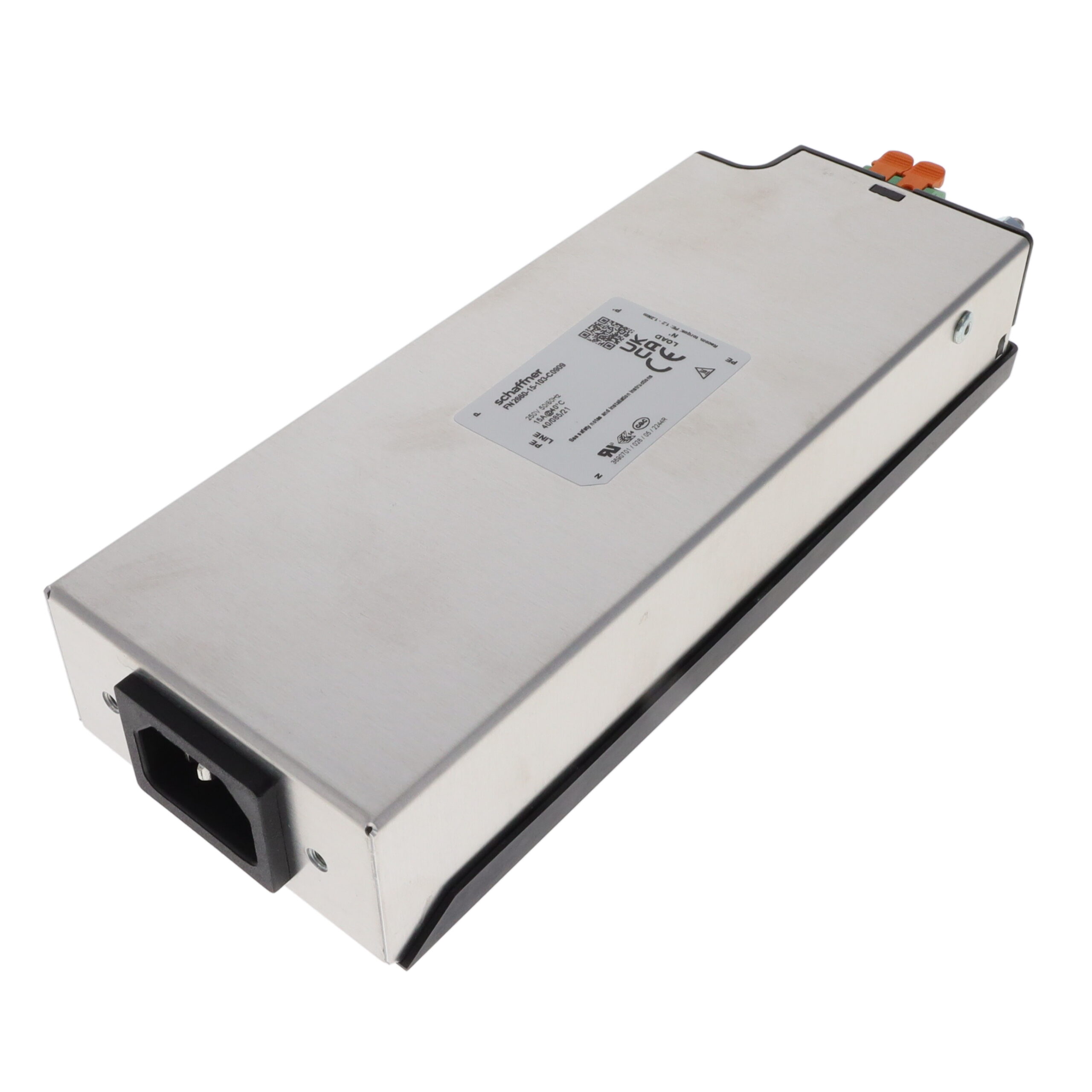

FN2660-15-103-C0909

$49.02

Description：LINE FILTER 250VAC 15A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:74f4efbe501f Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 15A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：15 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C14, Terminal Block
Inductance：L1 - 4mH, L2 - 4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2660-15-103-C0909

Overview

The FN2660-15-103-C0909 is a single-phase IEC input EMC/EMI power line filter manufactured by Schaffner. It features a low-profile design suitable for chassis mounting with quick connect terminals. The unit is rated for 15 A current and 250 VAC voltage, operating within a frequency range of 0 Hz to 60 Hz. Key electrical specifications include an inductance of 8.3 mH per line and a maximum leakage current of 350 mA. Physical dimensions are approximately 184.7 mm in length, 73 mm in width, and 35 mm in height, with an operating temperature range from -40 °C to +85 °C.

Feature Summary

Low-profile construction designed for space-constrained chassis installations
Single-phase IEC input configuration for standard power line filtering
High-performance EMC/EMI suppression capabilities

Applications

Industrial equipment requiring single-phase power conditioning
Medical devices needing compliant EMI suppression
Information technology hardware chassis integration

Procurement Notes

Verify the specific suffix codes against official datasheets to ensure terminal type and mounting style match system requirements. Confirm that the 15 A rating and physical dimensions align with the target enclosure constraints. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current availability status before finalizing procurement orders.

Selection Notes

Select this component when a single-phase filter with a 15 A continuous current rating is required. Ensure the application environment stays within the specified -40 °C to +85 °C operating temperature range. Verify that the chassis mounting style and quick connect termination method are compatible with the existing assembly infrastructure and wiring harnesses.

Part Context

This component belongs to the FN2660 series of low-profile, high-performance EMC/EMI filters from Schaffner. The series covers a spectrum of dedicated single-phase filters designed for IEC input applications. These units are engineered to provide effective noise suppression while maintaining a compact form factor suitable for modern electronic equipment enclosures.

Replacement Considerations

Consult official substitution guides for equivalent ratings. Generic replacements must match the 15 A current, 250 VAC voltage, and physical footprint constraints.
