Product Detailed Parameters
- Description：LINE FILTER 250VAC 16A CHASS MNT
- Series：FN2660
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：16 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：L1 - 4mH, L2 - 4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

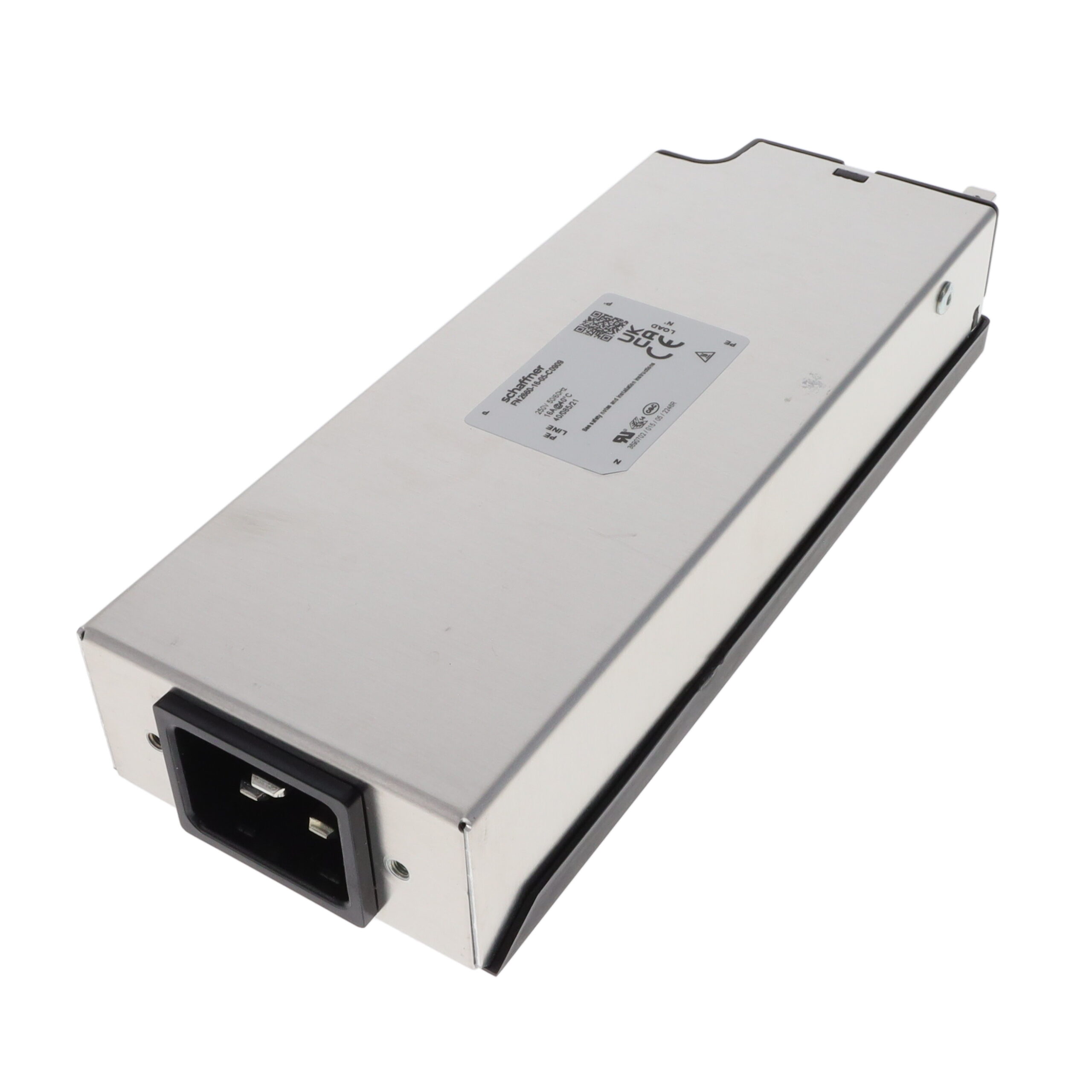

The FN2660-16-05-C0909 is a single-phase IEC input EMC/EMI filter from the Schaffner FN2660 series. It features a low-profile design with chassis mounting and quick connect terminals. The unit has a voltage rating of 250 VAC and a current rating of 16 A. Operating frequency ranges from 0 Hz to 60 Hz. Leakage current is specified at 350 mA. Inductance values are 8.3 mH per line. Physical dimensions include a length of 184.7 mm, width of 73 mm, and height of 35 mm. Maximum operating temperature is +85 C, while minimum is -40 C.
Feature Summary
- Low-profile construction for compact integration
- Single-phase IEC input configuration
- Chassis mount installation style
- Quick connect terminal interface
Applications
- Industrial equipment power conditioning
- Medical device power supplies
- Information technology hardware filtering
Procurement Notes
Verify the specific part number against official manufacturer documentation to ensure compatibility with system requirements. Confirm that the 16 A current rating and 250 VAC voltage specifications align with the intended application's electrical parameters. Check for any required ordering suffixes or alternative package options if standard configurations are unavailable. Ensure compliance with relevant safety standards before procurement.
Selection Notes
Select this component when a single-phase EMI filter with a 16 A capacity is required. The low-profile form factor suits applications with limited vertical space constraints. Verify that the quick connect termination method matches the available wiring infrastructure. Consider the thermal environment, as the maximum operating temperature is +85 C. Ensure the leakage current specification meets safety isolation requirements for the end product.
Part Context
This component belongs to the FN2660 series of single-phase, low-profile, high-performance IEC input EMC/EMI filters. The series covers a spectrum of dedicated filters designed for various power levels. These filters are engineered to provide effective noise suppression in single-phase AC power lines while maintaining a compact physical footprint suitable for dense electronic assemblies.
Replacement Considerations
Consult official substitution guides for verified alternatives within the same series. Cross-reference technical specifications such as current rating, voltage, and inductance to ensure functional equivalence. Verify mechanical dimensions and terminal types to confirm physical compatibility during replacement.
