FN2660-16-07-C0909

Overview

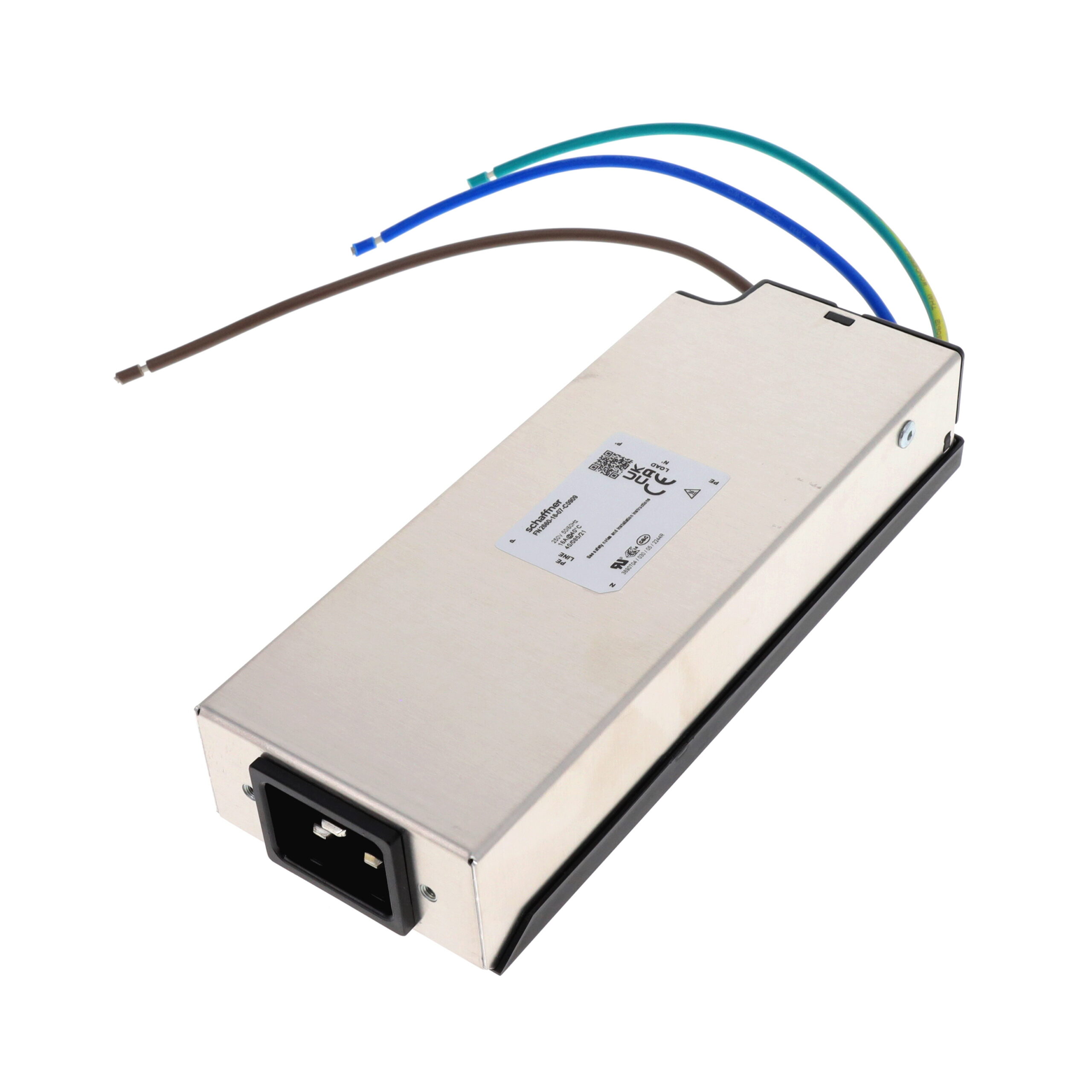

The Schaffner FN2660-16-07-C0909 is a single-phase power line filter designed for chassis mounting. It operates within a frequency range of DC to 60 Hz and supports a rated voltage of 250 VAC with a current rating of 16 A. The component utilizes an IEC 320 C20 connector interface for termination. Its physical dimensions include a height of 35 mm, and it functions reliably across an operating temperature range of -40°C to 85°C.

Feature Summary

• Provides electromagnetic interference suppression through integrated filtering capabilities
• Features a robust chassis mount design for secure installation in equipment enclosures
• Utilizes standard IEC 320 C20 input connectors for straightforward integration

Applications

• General purpose electronic equipment requiring EMI/EMC compliance
• Industrial control systems and machinery
• Medical devices and diagnostic equipment
• Information technology hardware and servers

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to ensure compatibility with system requirements. Confirm that the 16 A current rating and 250 VAC voltage specifications align with the target application's electrical parameters. Check for any updated regulatory compliance certifications relevant to the deployment region before finalizing procurement decisions.

Selection Notes

Select this model when a single-phase solution with a 16 A capacity is required for chassis-mounted applications. Ensure the available space accommodates the specified height and that the IEC 320 C20 interface matches the upstream power connection. Consider the operating temperature range to guarantee performance stability under expected environmental conditions without requiring additional thermal management.

Part Context

This component belongs to the FN2660 series of power line filters manufactured by Schaffner EMC Inc., a division of TE Connectivity. The series is engineered for general-purpose EMI/EMC filtering in single-phase AC power lines. These filters are widely used in industries demanding reliable noise suppression and adherence to international safety standards for electronic equipment.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-referencing with similar series models may require validation of current ratings, voltage limits, and physical footprint compatibility to ensure seamless integration into existing designs.
