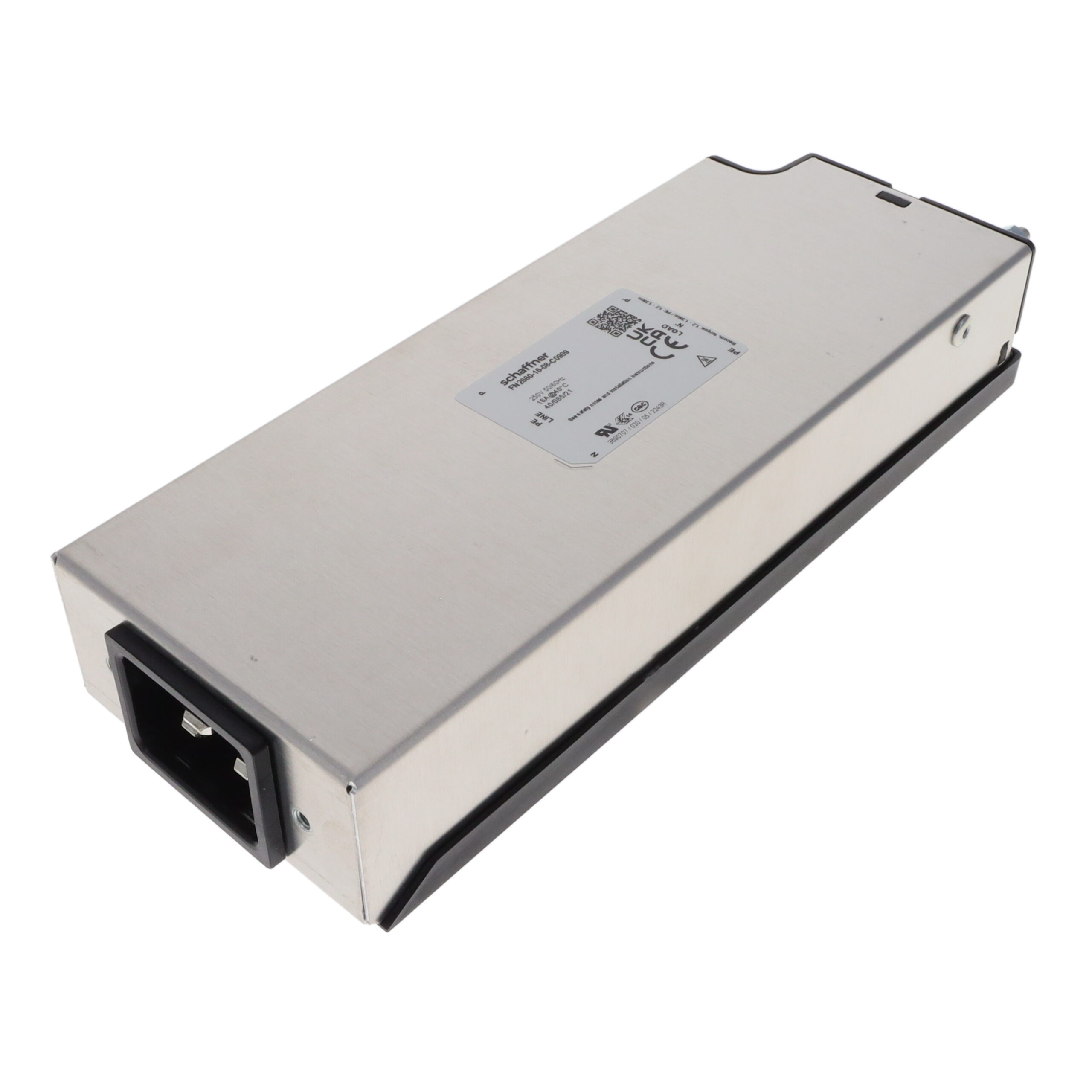

FN2660-16-08-C0909

$49.05

Description：LINE FILTER 250VAC 16A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:1b12f37a6aa2 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 16A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：16 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C20, Threaded Post (M4)
Inductance：L1 - 4mH, L2 - 4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2660-16-08-C0909

Overview

The FN2660-16-08-C0909 is a single-phase EMC/EMI power line filter manufactured by Schaffner EMC Inc. It features a rated voltage of 250 VAC and a current rating of 16 A. Designed for chassis mounting, the unit utilizes quick connect terminals for electrical interfacing. The physical dimensions are 1HU form factor with specific height, length, and width measurements suitable for panel integration. It operates within a frequency range of DC to 400 Hz and supports an operating temperature range from -40°C to +85°C.

Feature Summary

Provides electromagnetic interference suppression for single-phase AC power lines
Engineered for secure chassis mounting applications
Utilizes quick connect terminal style for simplified wiring

Applications

Industrial machinery power conditioning
Medical equipment input stages
Information technology hardware filtering

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with system requirements. Confirm that the 16 A current rating and 250 VAC voltage specifications align with the target application's electrical parameters. Check for any specific certification requirements such as UL or ENEC compliance relevant to the end product's market. Ensure mechanical fitment matches the designated chassis space.

Selection Notes

Select this component when a single-phase filter with a 16 A capacity is required for chassis installation. Consider the quick connect termination style if rapid assembly is necessary. Evaluate the thermal performance within the specified -40°C to +85°C range against the operational environment. Compare leakage current limits and insertion loss characteristics against regulatory standards applicable to the final device.

Part Context

This model belongs to the FN2660 series of power line filters produced by Schaffner EMC Inc., a division of TE Connectivity. The series is designed for general-purpose EMC mitigation in AC power inputs. The specific suffix indicates particular terminal and housing configurations within the broader product family.

Replacement Considerations

Consult official substitution guides for equivalent current ratings and form factors. Verify that alternative components maintain compatible mounting styles and terminal types to ensure mechanical interchangeability without redesign.
