FN2660-16-103-C0909

Overview

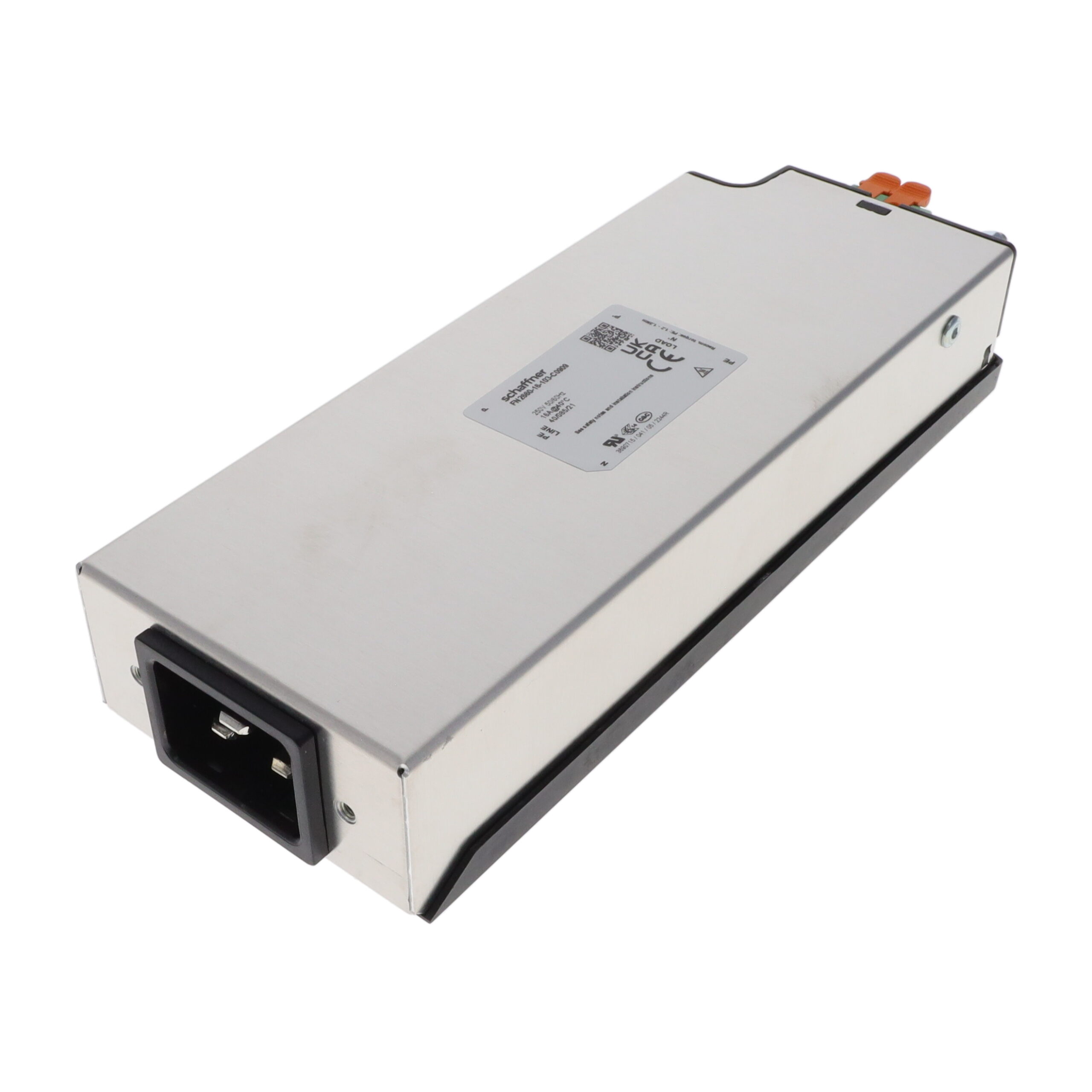

The FN2660-16-103-C0909 is a single-phase IEC input EMC/EMI power line filter from the Schaffner FN2660 series. It features a low-profile, high-performance design with a two-stage configuration for effective noise suppression. The unit supports a rated current of 16 A and operates at voltages up to 250 VAC. Termination options include IEC 320-C14 connectors and terminal blocks. It is designed for chassis mounting and complies with international safety standards.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference attenuation
• Low-profile physical design optimized for space-constrained equipment enclosures
• Dual termination flexibility supporting both standard IEC inlet connections and direct terminal block wiring

Applications

• Medical imaging systems requiring strict EMI compliance
• Industrial automation control panels
• Information technology hardware infrastructure
• Test and measurement instrumentation

Procurement Notes

Verify that the specific suffix C0909 matches the required termination style and certification marks for your target market. Confirm mechanical dimensions against panel cutout specifications. Ensure the 16 A rating aligns with the system's maximum continuous load requirements. Check for updated RoHS or REACH declarations if environmental compliance is mandatory for the final assembly.

Selection Notes

Select this model when a single-phase solution with moderate current capacity is needed. The two-stage design offers superior performance compared to single-stage alternatives in noisy environments. Consider the physical height constraints of the installation area due to the low-profile form factor. Evaluate whether the IEC inlet or terminal block termination best suits the internal wiring strategy of the host device.

Part Context

This component belongs to the FN2660 series, which provides a range of dedicated single-phase filters. The series is characterized by its compact footprint and high attenuation capabilities across a broad frequency spectrum. It serves as a critical interface between the AC power source and sensitive electronic loads to ensure regulatory compliance.

Replacement Considerations

Direct substitutes within the same series include FN2660-10-103-C0909 (10 A) and FN2660-20-103-C0909 (20 A). These variants share identical mechanical dimensions and mounting configurations but differ in current carrying capacity. Verify that the alternative current rating meets the application's electrical demands without compromising thermal performance.
