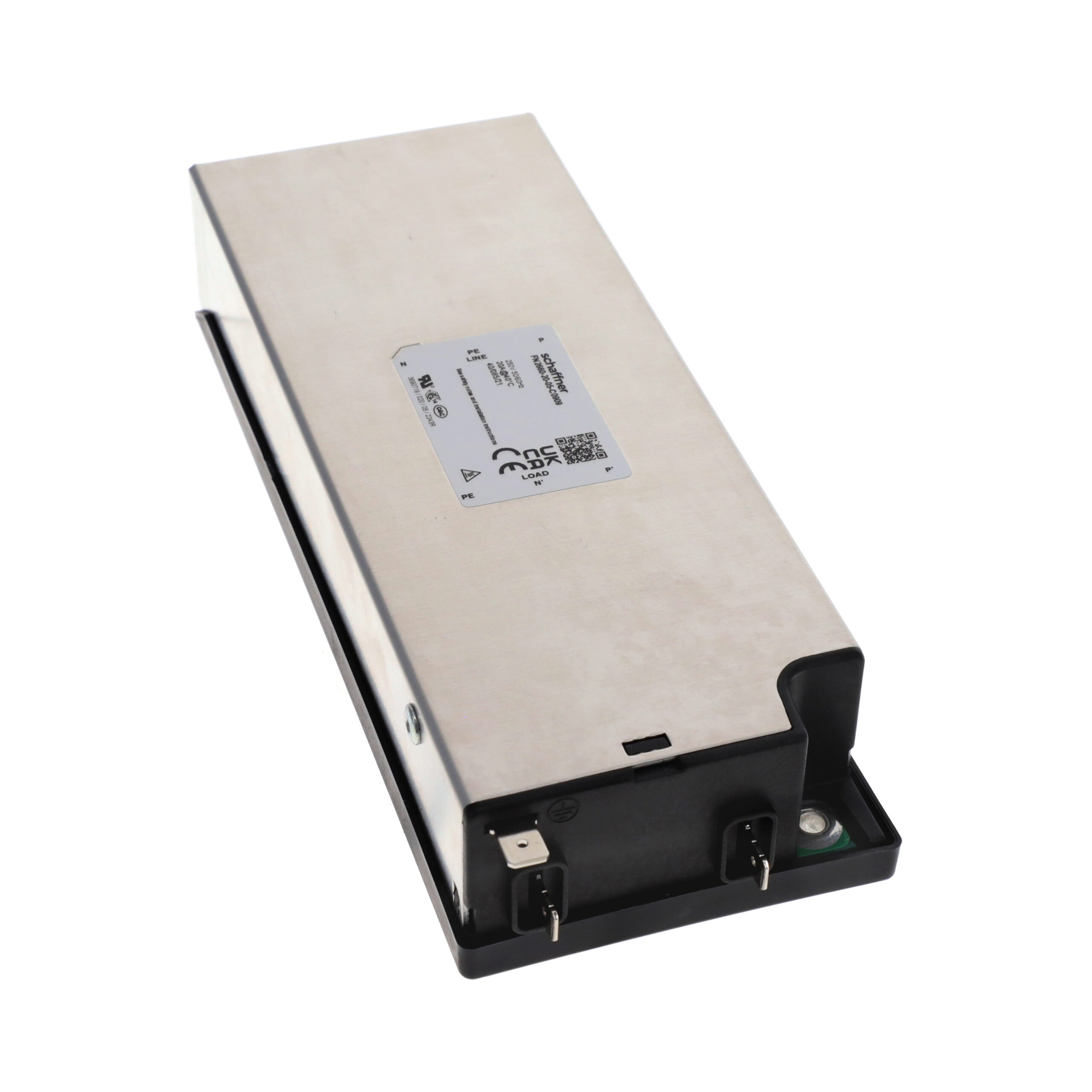

FN2660-20-05-C0909

$37.45

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:1d2de30b803a Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C14, Quick Connect
Inductance：L1 - 2.4mH, L2 - 2.4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2660-20-05-C0909

Overview

The Schaffner FN2660-20-05-C0909 is a single-phase IEC power line filter designed for high-performance EMC/EMI suppression. It features a rated current of 20 A and a voltage rating of 250 VAC. The unit utilizes chassis mount installation with quick connect terminals. Key electrical parameters include a maximum leakage current of 350 mA and operation within the 0 Hz to 60 Hz frequency range. The physical height is specified as 35 mm, ensuring compact integration into industrial enclosures.

Feature Summary

Designed for high-performance EMC/EMI filtering in demanding environments
Complies with IEC standards for single-phase power line applications
Utilizes robust chassis mount construction for secure installation

Applications

Robotics systems requiring strict electromagnetic compatibility
Data center infrastructure equipment
Industrial machinery control panels

Procurement Notes

Verify the complete part number including suffixes against official TE Connectivity or Schaffner documentation to ensure correct terminal type and mounting configuration. Confirm that the 20 A current rating and 250 VAC voltage specifications align with your system requirements before procurement. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when high current capacity is required for single-phase applications. Ensure the chassis mount style fits your enclosure design constraints. Verify that the quick connect terminal type matches your wiring harness specifications. Consider the 350 mA leakage current limit in relation to safety grounding requirements.

Part Context

This model belongs to the FN2660 series, which is engineered specifically for robotics and data center applications. The series offers high-performance filtering capabilities to meet stringent electromagnetic interference standards. It represents a specialized solution for industrial environments where reliable power quality and noise suppression are critical.

Replacement Considerations

Consult official substitution guides for equivalent models within the FN2660 series or compatible Schaffner lines. Ensure any replacement maintains the same 20 A rating and single-phase configuration. Verify mechanical dimensions and terminal types match existing mounting structures.
