Product Detailed Parameters
- Description：LINE FILTER 250VAC 20A CHASS MNT
- Series：FN2660
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：20 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：IEC 320-C20, Threaded Post (M4)
- Inductance：L1 - 2.4mH, L2 - 2.4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

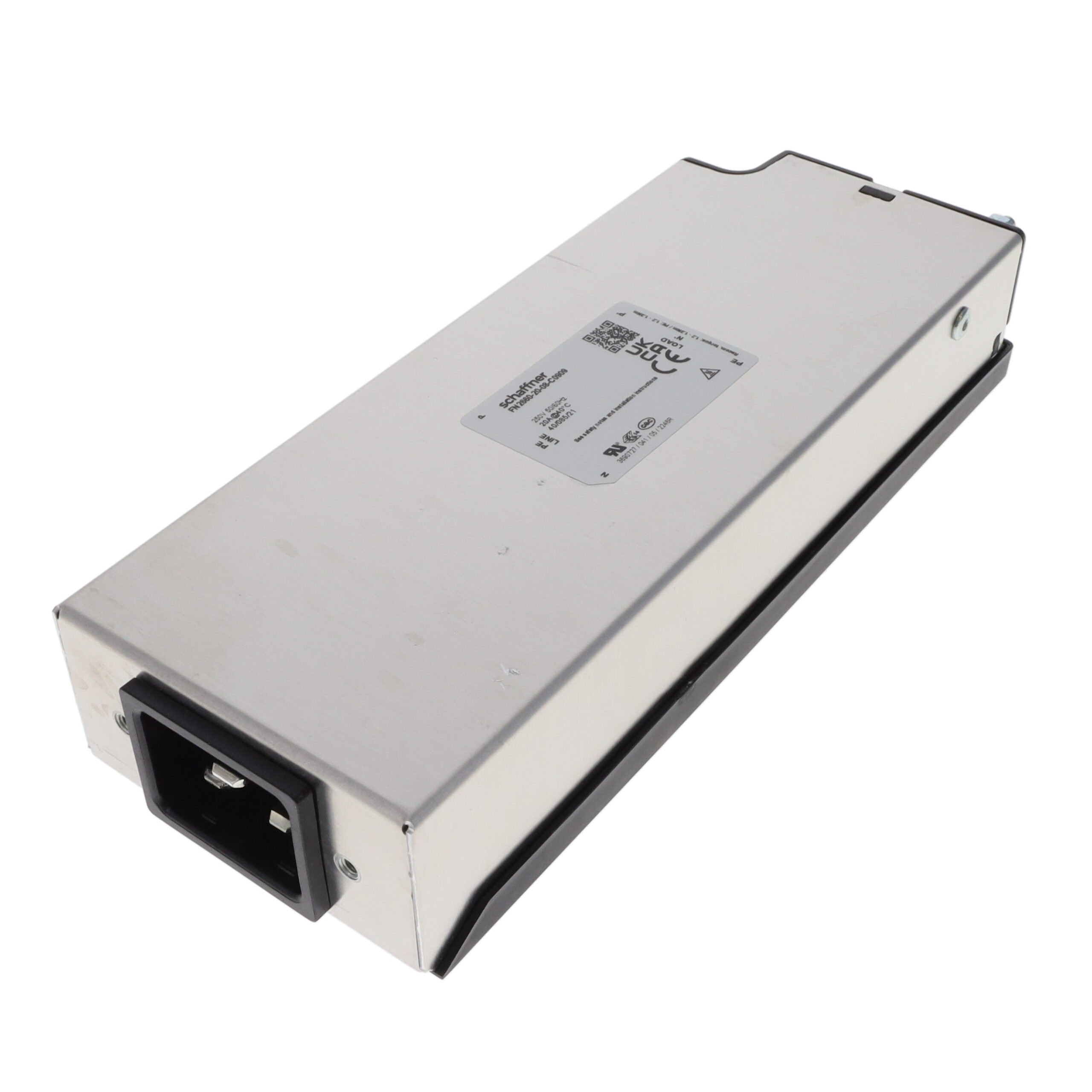

The FN2660-20-08-C0909 is a single-phase IEC input EMC/EMI power line filter from the Schaffner FN2660 series. It features a low-profile design with a rated voltage of 250 VAC and a current rating of 20 A. The unit utilizes chassis mount installation with quick connect termination. Key electrical parameters include a leakage current of 350 mA and an inductance of 10 mH per line. The operating temperature range spans from -40 C to +85 C, with physical dimensions of 184.7 mm length, 73 mm width, and 35 mm height.
Feature Summary
- Single-phase IEC input configuration for standard AC power applications
- Low-profile mechanical design suitable for space-constrained enclosures
- High-performance electromagnetic interference suppression capabilities
Applications
- Industrial machinery power supply filtering
- Medical equipment EMI mitigation
- Information technology hardware noise reduction
Procurement Notes
Verify the specific suffix codes against official manufacturer documentation to ensure correct pinout and terminal configuration. Confirm that the 20 A current rating aligns with the system's maximum load requirements. Check for RoHS compliance status in the latest datasheet revision. Ensure chassis mounting provisions match the intended enclosure design. Validate insulation and safety certifications required for the target market.
Selection Notes
Select this component when a single-phase filter with a 20 A capacity is required. The low-profile form factor distinguishes it from bulkier alternatives in the same series. Consider the quick connect termination style for assembly compatibility. Evaluate the 350 mA leakage current against safety standards for sensitive medical or consumer applications. Compare inductance values with other series models if higher attenuation is needed.
Part Context
This part belongs to the FN2660 series, which offers a spectrum of dedicated single-phase filters. The series is characterized by high performance and low profile construction. It serves as a solution for EMC/EMI compliance in various electronic systems requiring robust power line conditioning.
