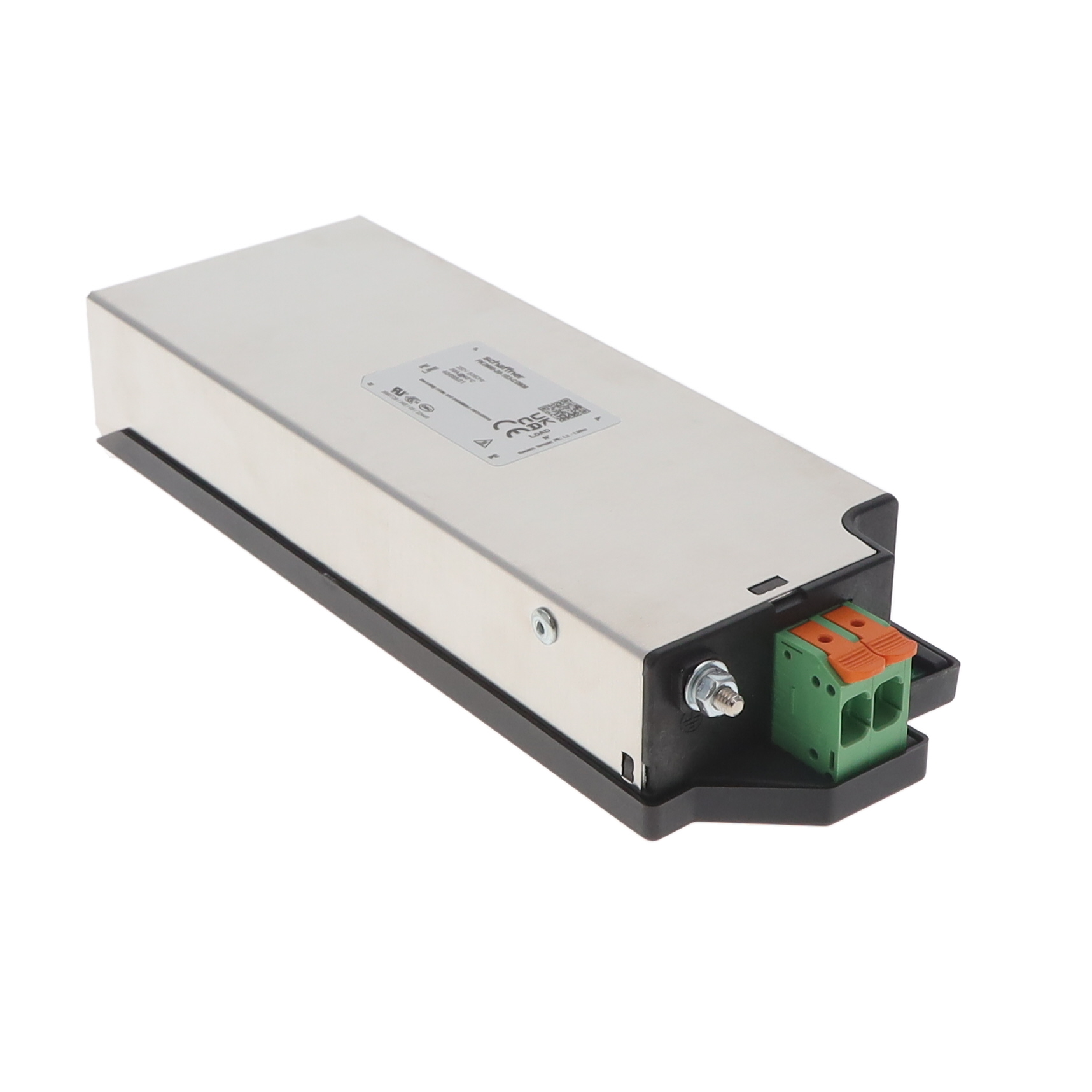

FN2660-20-103-C0909

$44.69

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:53f3fbe5c9e6 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN2660
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C14, Terminal Block
Inductance：L1 - 2.4mH, L2 - 2.4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2660-20-103-C0909

Overview

The FN2660-20-103-C0909 is a single-phase power line filter from the Schaffner FN2660 series, designed for IEC applications. It features a 20 A current rating and operates at voltages up to 250 VAC. The unit utilizes chassis mount installation with quick connect terminals. Key electrical specifications include an inductance of 8.3 mH per phase and a maximum leakage current of 350 mA. The device functions within a frequency range of 0 Hz to 60 Hz and supports operating temperatures between -40 C and +85 C.

Feature Summary

Provides EMC/EMI filtering for single-phase power lines
Designed for chassis mounting with quick connect termination
Supports high current capacity for industrial power conditioning

Applications

IEC single-phase power supply filtering
Industrial power condition modules
Equipment requiring EMI suppression in power inputs

Procurement Notes

Verify the exact part number against official TE Connectivity or Schaffner documentation to ensure compatibility with system requirements. Confirm that the 20 A rating and 250 VAC specification align with the target application's electrical parameters. Check for any specific environmental certifications required for the deployment region.

Selection Notes

Select this component when a single-phase filter with a 20 A continuous current rating is required. Ensure the chassis mount form factor fits the available enclosure space. Verify that the quick connect terminal type matches the wiring harness or PCB layout constraints of the host equipment.

Part Context

This component belongs to the FN2660 series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is engineered for robust EMI suppression in demanding environments. The specific model integrates standard filtering capabilities into a compact chassis-mountable housing suitable for various industrial and commercial power applications.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and physical dimensions before considering other models.
