FN3025HL-10-71

Overview

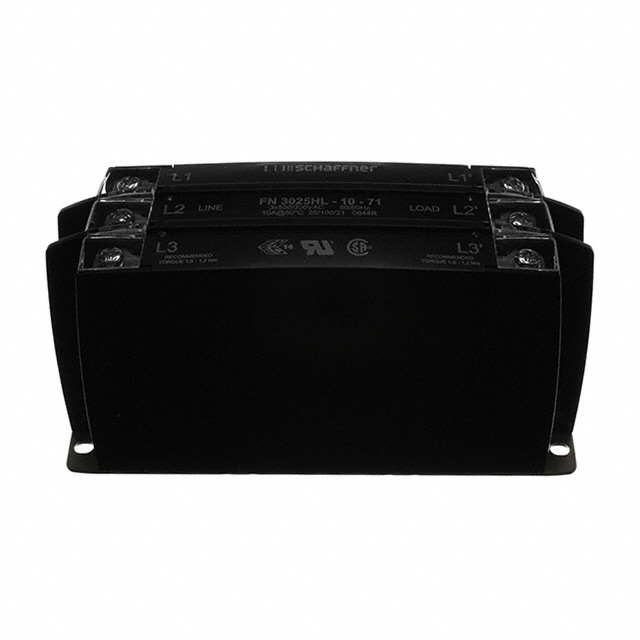

The Schaffner EMC FN3025HL-10-71 is a three-phase (Delta) single-stage power line filter designed for industrial applications. It features a rated current of 10 A and a maximum AC voltage rating of 520 VAC. The component operates within a frequency range from DC to 60 Hz. It utilizes ring terminals for both input and output connections, facilitating secure electrical interfacing. The unit is constructed with a plastic housing and metal grounding plate to ensure effective electromagnetic compatibility performance while maintaining structural integrity.

Feature Summary

• Combines plastic housing with metal grounding plate for optimized EMC performance
• Single-stage filtering configuration for efficient noise suppression
• Ring terminal design for standardized input and output connections

Applications

• Industrial equipment electromagnetic interference suppression
• Commercial machinery power line filtering
• Communication systems EMI mitigation

Procurement Notes

Verify the specific part number FN3025HL-10-71 against official TE Connectivity Schaffner documentation to confirm active status and exact specifications. Ensure compatibility with Delta three-phase systems requiring 10 A capacity and 520 VAC ratings. Cross-reference datasheets for mounting dimensions and terminal configurations before procurement to avoid integration errors.

Selection Notes

Select this model when a single-stage solution is required for three-phase Delta networks operating up to 60 Hz. Confirm that the 10 A current rating meets load requirements and that 520 VAC insulation levels are sufficient for the application voltage. Verify chassis mount availability and ring terminal compatibility with existing wiring infrastructure.

Part Context

This component belongs to the FN 3025 series, which includes variants for chassis and DIN rail installation. The series offers different performance classes and installation versions. The FN3025HL-10-71 specifically addresses high-reliability needs in industrial environments through its robust construction and dedicated EMC optimization.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific Delta configuration or terminal type.
