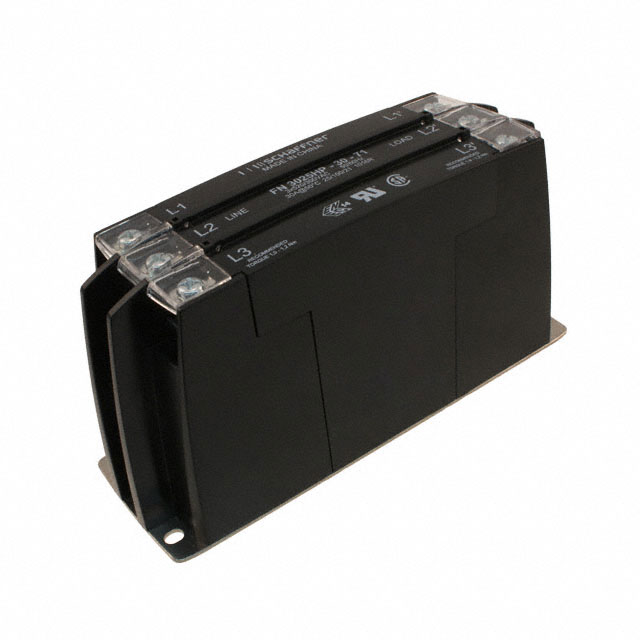

FN3025HP-30-71

$132.37

Description：LINE FILTER 30A DIN RAIL
Series：FN 3025
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:0f7628b3673c Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 30A DIN RAIL
Series：FN 3025
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：30 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：DIN Rail
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3025HP-30-71

Overview

The Schaffner FN3025HP-30-71 is a three-phase EMC/EMI line filter designed for chassis mounting. It supports a maximum current of 30 A and operates at voltages up to 520 V AC at 60 Hz. The unit features a single-stage configuration with terminal block connections. Constructed in a lightweight plastic enclosure with a metal ground plate, it minimizes leakage current. The filter includes hinged safety covers with embedded interlocks for enhanced operational safety.

Feature Summary

Compact state-of-the-art RFI filter concept in a lightweight plastic enclosure
Hinged safety covers with embedded interlocks for operator protection
Minimized filter leakage current design
Integrated metal ground plate for effective shielding

Applications

Industrial machinery electromagnetic compatibility
Three-phase power supply noise suppression
Chassis-mounted equipment EMI filtering

Procurement Notes

Verify the specific suffix 'HP' against official Schaffner documentation to confirm terminal type and voltage ratings. Ensure the chassis mounting holes align with the installation panel dimensions. Confirm that the hinged safety cover mechanism is compatible with the intended enclosure access requirements before finalizing procurement.

Selection Notes

Select this model when a three-phase solution with a 30 A rating and 520 V AC capability is required. The chassis mount style suits applications where DIN rail options are insufficient. Consider the minimized leakage current feature for sensitive medical or precision instrumentation environments requiring strict safety compliance.

Part Context

This component belongs to the FN3025 series, which offers compact RFI filtering solutions. The HP variant specifically denotes high-performance characteristics within the Schaffner portfolio. It is manufactured by TE Connectivity Schaffner, leveraging established expertise in electromagnetic interference suppression technologies for industrial and commercial power systems.

Replacement Considerations

FN3025HL-30-71 is a documented alternative within the same series. Verify that the HL variant's terminal configuration and physical dimensions match the existing installation constraints before substitution.
