Product Detailed Parameters
- Description：LINE FILTER 40A DIN RAIL
- Series：FN 3026
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：40 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE,CSA, ENEC,UKCA, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：DIN Rail
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

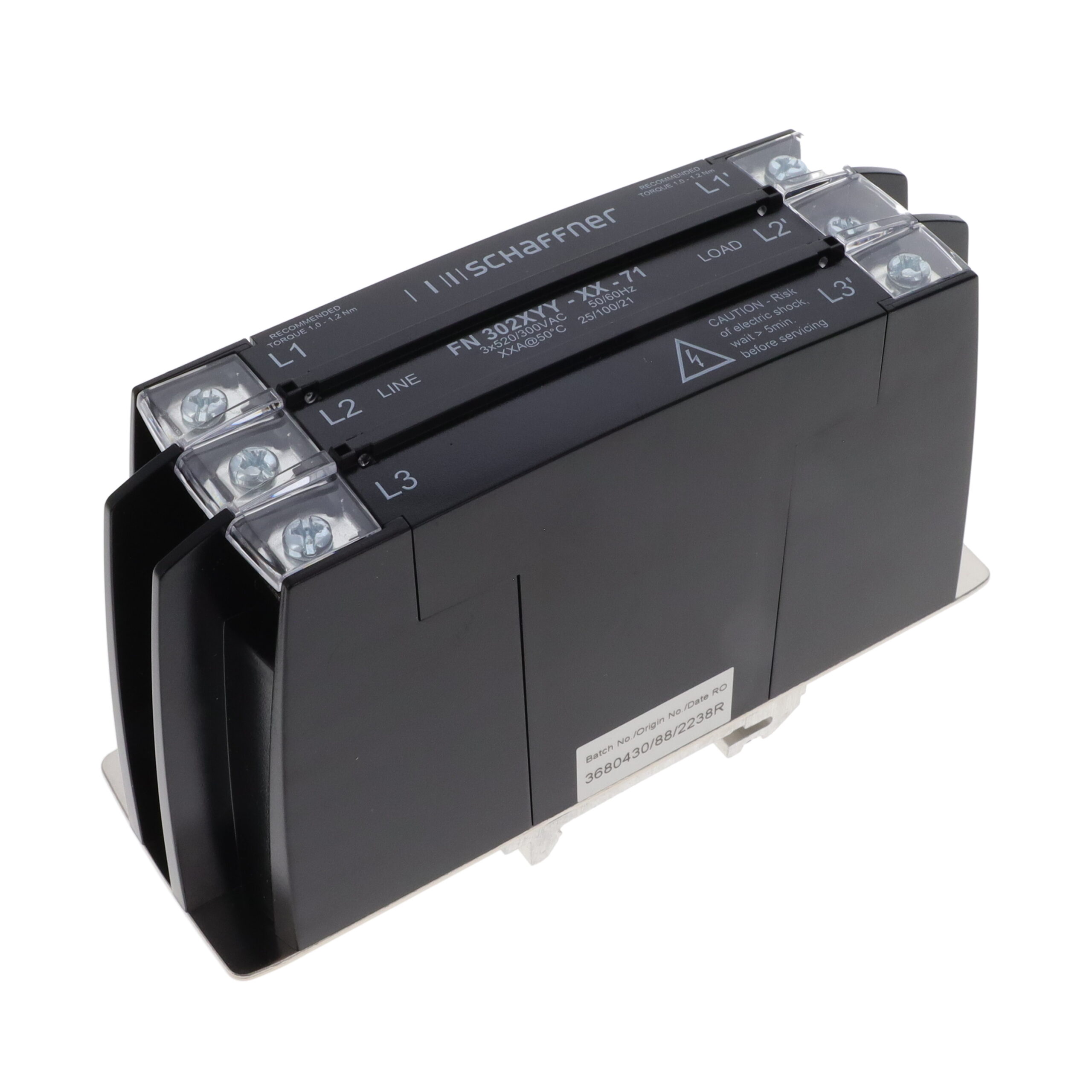

The Schaffner FN3026HL-40-71 is a three-phase EMC/RFI power line filter designed for DIN rail mounting. It features a rated voltage of 520 VAC and a current rating of 40 A, operating within a frequency range of 0 Hz to 60 Hz. The unit utilizes terminal block termination and exhibits a leakage current of 100 µA. Constructed with a plastic housing and metal ground plate, it supports applications such as motor drives while maintaining compliance with UL, CSA, and IEC/EN standards.
Feature Summary
- Combines plastic housing with a metal ground plate to maintain EMC performance
- Designed specifically for DIN rail mounting installation
- Provides enhanced filtering performance in the HL class
Applications
- Motor drive systems
- Industrial machinery power conditioning
- Three-phase equipment requiring DIN rail integration
Procurement Notes
Verify that the specific part number FN3026HL-40-71 matches the required 40 A current rating and 520 VAC voltage specifications for your application. Confirm DIN rail compatibility and terminal block termination requirements against your system design. Ensure compliance with relevant regional safety standards such as UL or IEC before finalizing procurement decisions.
Selection Notes
Select this component when a three-phase filter requires DIN rail mounting rather than chassis installation. The HL designation indicates enhanced performance compared to standard variants. Ensure the 40 A continuous current rating aligns with the load requirements. Verify that the 100 µA leakage current meets safety limits for sensitive medical or personnel protection applications if applicable.
Part Context
This model belongs to the FN3026 series, which offers DIN rail mounting options distinct from the FN3025 series designed for chassis mounting. The series provides various current ratings and performance classes (L and P) to suit different industrial EMC requirements. The HL variant represents a specific performance tier within this modular filter family.
Replacement Considerations
The FN3026HL-30-71 serves as a lower current alternative within the same series. For chassis-mounted equivalents, consider the FN3025 series. Verify pinout and dimensional compatibility when substituting models from different manufacturers.
