Product Detailed Parameters
- Description：LINE FILTER 10A CHASSIS MOUNT
- Series：FN3040
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：10:00 AM
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：305 V
- Voltage - Rated AC (Phase to Phase)：530 V
Download product information
Overview

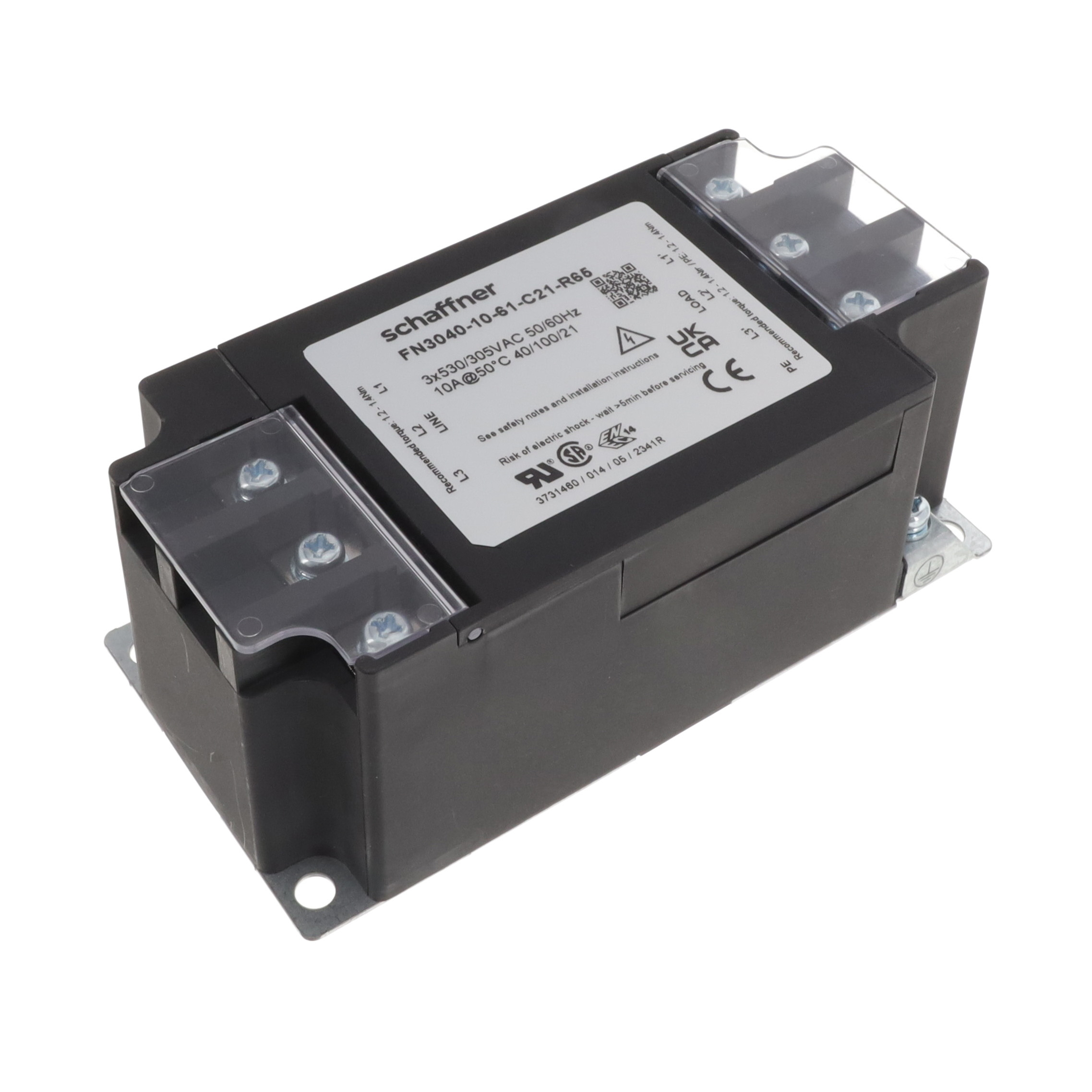

The FN3040-10-61-C21-R65 is a three-phase (Delta) EMC/EMI line filter manufactured by Schaffner EMC Inc. It features a 10 A current rating and operates at frequencies from DC to 60 Hz. The unit supports voltage ratings of 305 VAC and 530 VAC. Designed for low leakage current applications, it utilizes MnZn core technology. The filter employs a single-stage terminal block connection method and is intended for chassis mounting.
Feature Summary
- Engineered for low leakage current requirements in three-phase power systems
- Utilizes MnZn core technology for effective EMI suppression
- Features a single-stage design with terminal block connections
Applications
- Three-phase Delta power supply filtering
- Low leakage current sensitive equipment protection
- Chassis-mounted EMC compliance solutions
Procurement Notes
Verify the specific suffix codes against official datasheets to ensure correct configuration. Confirm that the terminal block interface matches the system wiring requirements. Check RoHS compliance status through manufacturer documentation before integration into regulated environments.
Selection Notes
Select this component when low leakage current is critical for safety or signal integrity in three-phase Delta systems. Ensure the chassis mounting style fits the enclosure design. Verify that the 10 A rating meets the load requirements and that the operating temperature range aligns with the application environment.
Part Context
This part belongs to the FN3040 series of power line filters. The series is characterized by high-performance filtering capabilities within a tight package. The product is distributed under the TE Connectivity / Schaffner brand portfolio, focusing on electromagnetic compatibility solutions for industrial and commercial power applications.
Replacement Considerations
The FN3040-10-61-C20-R65 is listed as a related substitute option. Verify electrical parameters and physical dimensions before swapping components to ensure compatibility with existing mounting and wiring infrastructure.
