FN3041-10-61-C21-R65

Overview

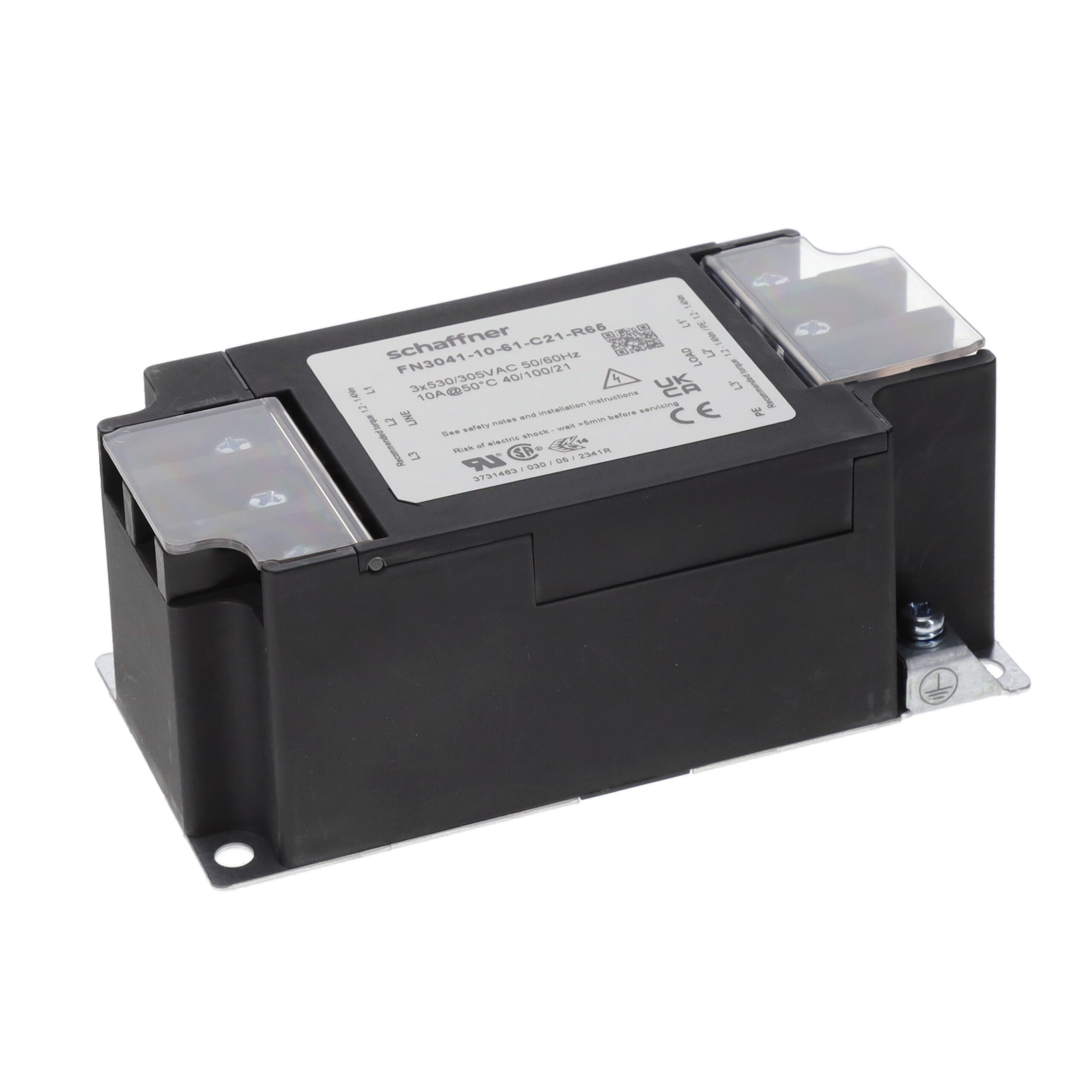

The Schaffner FN3041-10-61-C21-R65 is a three-phase EMC power line filter designed for chassis mounting. It features a current rating of 10 A and operates at frequencies from DC to 60 Hz. The unit supports voltage ratings of 305 VAC and 530 VAC, utilizing M4 screw terminals for connection. Key electrical specifications include a leakage current of 1.8 mA and a capacitance value of 220 nF (0.22 uF). Constructed with Nano Core technology, this low-leakage filter ensures minimal ground current flow while providing effective electromagnetic interference suppression in industrial environments.

Feature Summary

• Low leakage current design suitable for sensitive applications
• Nano Core technology for high-performance filtering
• Three-phase Delta configuration with single-stage attenuation

Applications

• Industrial machinery power supply protection
• Medical equipment grounding isolation
• Precision manufacturing control systems

Procurement Notes

Verify the specific suffix codes against the official TE Connectivity datasheet to ensure correct terminal type and mounting configuration. Confirm that the 10A rating and 530VAC voltage align with your system requirements. Check RoHS compliance status if required by your procurement policy. Ensure chassis mounting space accommodates the physical dimensions specified in the mechanical drawings before ordering.

Selection Notes

Select this model when low leakage current is critical for safety or signal integrity in three-phase Delta systems. The 10A rating suits moderate load applications requiring robust EMI suppression. Consider the chassis mount style for fixed installations where panel integration is preferred over DIN rail mounting. Verify input/output terminal compatibility with existing wiring infrastructure.

Part Context

This component belongs to the Schaffner FN3041 series, which specializes in low-leakage power line filters. The series utilizes advanced Nano Core materials to achieve superior performance in compact form factors. Designed primarily for industrial and medical sectors, these filters address strict regulatory requirements regarding ground leakage currents while maintaining effective noise reduction across the power spectrum.

Replacement Considerations

Consult the official TE Connectivity cross-reference guide for verified substitutes. Ensure any replacement matches the 10A current rating, 530VAC voltage, and 220nF capacitance values. Verify identical terminal configurations and mounting dimensions to maintain mechanical compatibility.
