FN3041-30-61-C21-R65

Overview

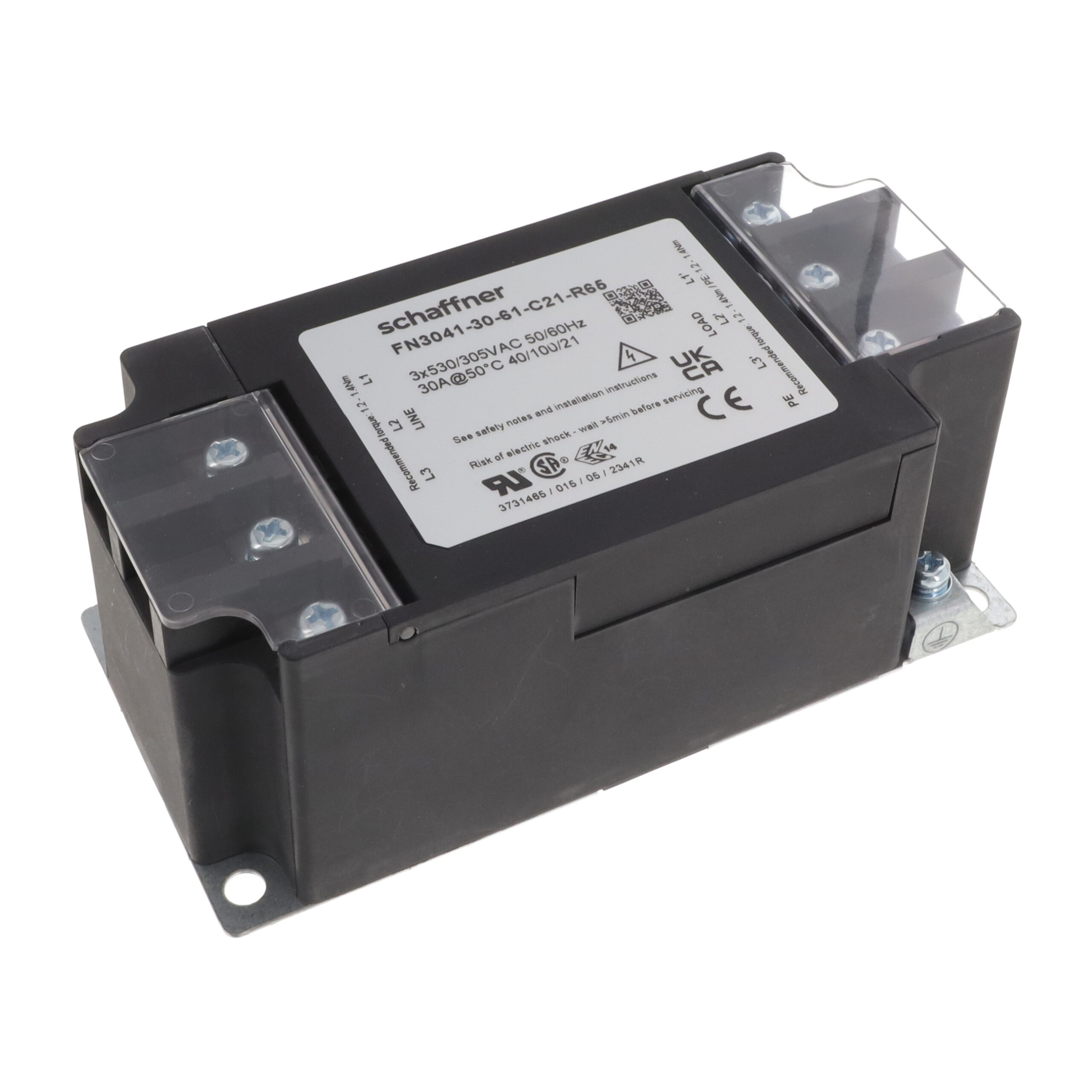

The Schaffner FN3041-30-61-C21-R65 is a three-phase delta EMC/EMI line filter rated for 30 A at 530/305 VAC and 60 Hz. It utilizes a single-stage design with M4 screw terminals for chassis mounting. The unit features a plastic housing and metal ground plate, incorporating a Nano Core of 220 nF to minimize weight while maintaining performance.

Feature Summary

• Single-stage filtering architecture
• Low leakage current design
• Compact packaging with metal ground plate

Applications

• Industrial power distribution systems
• Three-phase motor drive protection
• General-purpose EMI suppression in delta configurations

Procurement Notes

Verify the specific voltage rating (530/305VAC) against your system requirements. Confirm that the M4 screw terminal interface matches your wiring infrastructure. Ensure the chassis mounting style fits your enclosure layout. Cross-reference the Nano Core specification if electromagnetic compatibility standards are critical.

Selection Notes

Select this component when a compact, lightweight solution is required for three-phase delta applications. The low leakage characteristic makes it suitable for sensitive equipment. Verify that the 30 A current rating aligns with the maximum load. Consider the chassis mount requirement for installation planning.

Part Context

This model belongs to the Schaffner passive components portfolio, specifically designed for power line filtering. It represents a high-performance, tight-packaged filter series that balances EMC attenuation with physical size constraints. The product is manufactured under the TE Connectivity / Schaffner brand.

Replacement Considerations

FN3040-30-61-C21-R65 is a related variant within the same series. Verify specific parameter differences before substitution.
