FN3042-10-61-C21-R65

Overview

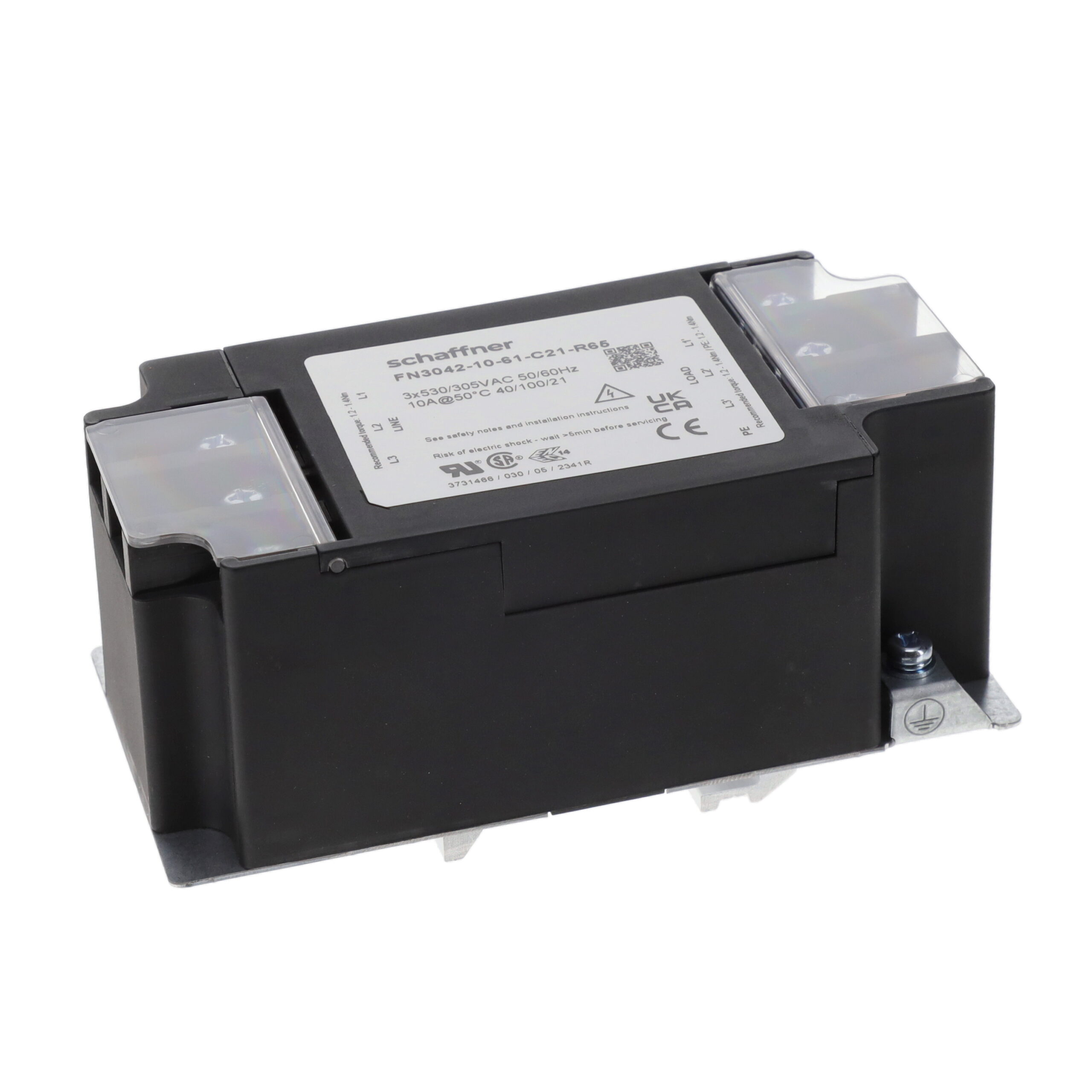

The FN3042-10-61-C21-R65 is a three-phase (Delta) EMC line filter manufactured by Schaffner. It supports a rated current of 10 A and operates at voltages up to 530 VAC with a frequency range of DC to 60 Hz. The unit utilizes a single-stage design for EMI/EMC suppression. It features chassis mounting and employs terminal block connections for input and output. The filter is constructed with a plastic housing and a metal ground plate to minimize weight while maintaining performance.

Feature Summary

• Low-leakage EMC filtering capability
• Compact design with plastic housing and metal ground plate
• Single-stage attenuation architecture

Applications

• Industrial power distribution systems
• Three-phase motor drive protection
• Medical equipment power supplies

Procurement Notes

Verify the specific voltage rating and current capacity against the application requirements before procurement. Confirm that the terminal block interface matches the existing wiring infrastructure. Ensure the chassis mount dimensions fit the designated enclosure space. Check compliance documentation for regional regulatory standards applicable to the deployment location.

Selection Notes

Select this component when a three-phase Delta configuration is required for 10 A applications. Consider the low-leakage specification if safety isolation is critical. Evaluate the physical dimensions due to the compact plastic housing design. Ensure the operating temperature range meets the environmental conditions of the installation site.

Part Context

This model belongs to the Schaffner FN3042 series, which focuses on high-performance, tight-packaged filters. The series is designed to achieve low weight without compromising electromagnetic compatibility. It serves as a solution for industrial and commercial applications requiring reliable three-phase noise suppression.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic cross-references may not match the specific leakage current or capacitance values. Verify pinout and mounting hole patterns before replacing existing units in assembled equipment.
