FN3100-110-35

Overview

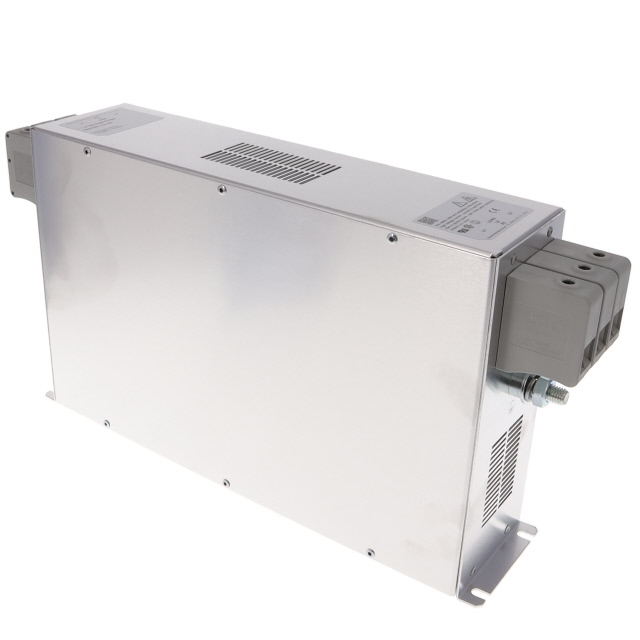

The FN3100-110-35 is a three-phase EMC/RFI power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with terminal block termination. The unit is rated for 520 VAC and supports a continuous current of 110 A at frequencies from 0 Hz to 60 Hz. Physical dimensions are 440 mm in length, 90 mm in width, and 220 mm in height, with an operating temperature range of -25°C to +100°C. Leakage current is specified at 10 mA. The component weighs 5.4 kg and holds UL and CSA compliance certifications.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Utilizes a book-style chassis mount configuration for secure installation
• Employs terminal block connections for robust electrical interfacing

Applications

• Motor drive systems requiring EMI reduction
• Industrial power conditioning equipment
• Three-phase machinery protection circuits

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity or Schaffner documentation to ensure compatibility. Confirm that the required current rating of 110 A and voltage rating of 520 VAC match the target application specifications. Check for updated compliance certifications such as UL and CSA before finalizing procurement decisions.

Selection Notes

Select this model when high-current three-phase filtering is necessary for industrial environments. Ensure the chassis mounting style and terminal block interface align with the existing panel layout. Verify that the physical dimensions fit within the designated enclosure space and that the thermal operating range suits the local ambient conditions.

Part Context

This component belongs to the FN 3100 series of power line filters designed for heavy-duty applications. The series offers various current ratings to accommodate different power requirements while maintaining consistent mechanical and electrical performance standards across the product line.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalent part numbers. Do not assume cross-compatibility with other series without explicit technical confirmation from TE Connectivity.
